Toolbar Hide Buttons

The SimPASS PE application toolbar has five buttons related to show/hide of
CATC Trace file contents. The buttons allow you to quickly adjust the display to your
needs.

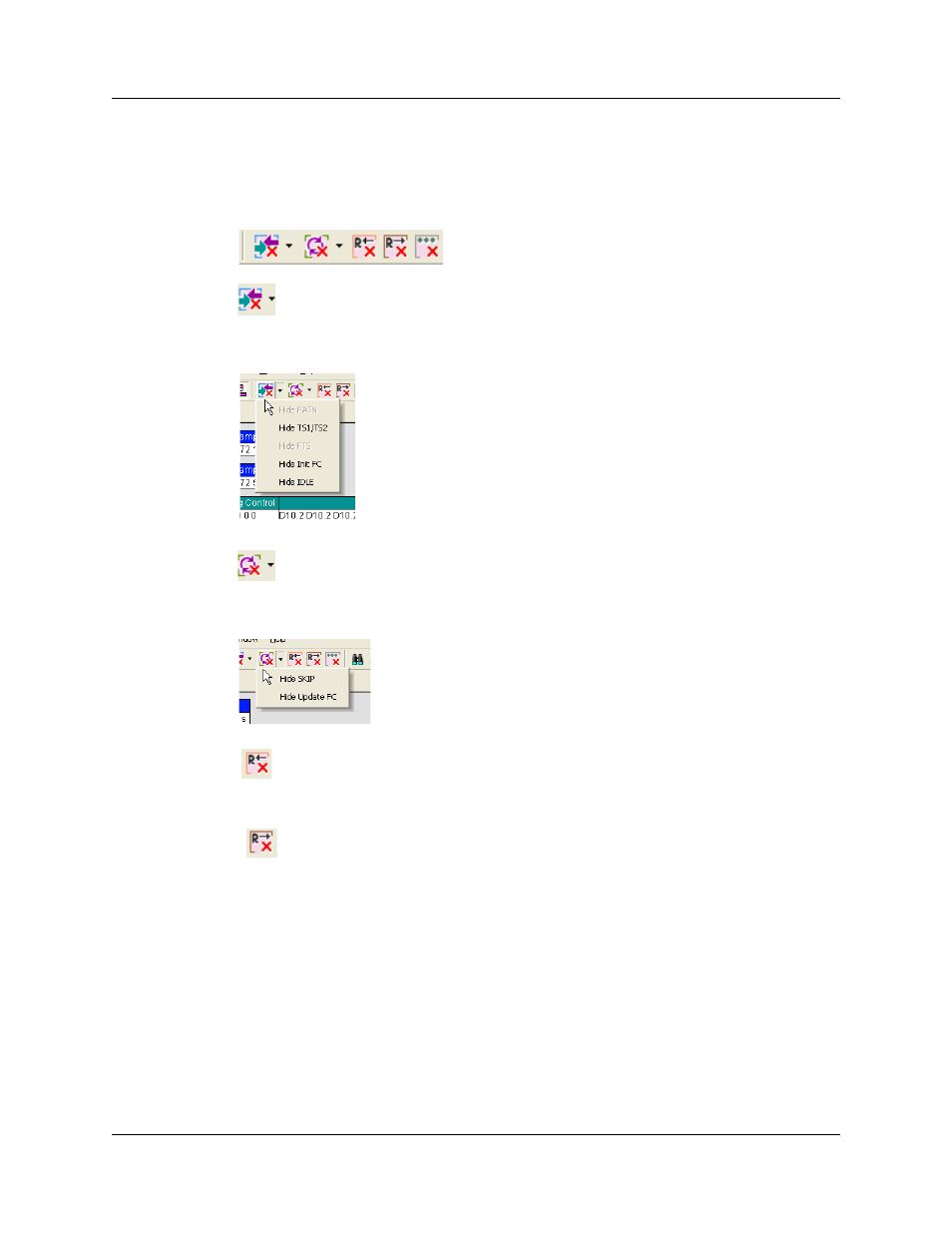

Hide Training: Brings up a drop-down menu that lets you to hide all or a portion of the
packets in the training portion of the CATC Trace.

Hide SKIP and Update FC: Brings up a drop-down menu that lets you hide SKIP or
Update FC packets in a CATC Trace.

Hide Upstream: Hide all traffic from endpoint devices to the root complex.

{

Hide Downstream: Hide all traffic from the root complex to endpoint devices.
