Front Panel
Most of the front panel controls duplicate functionality available through the
touch screen display. They are covered in more detail in the Basics section
and in the HDO4000 Oscilloscopes Operator’s Manual. Below are a few
useful front panel controls.

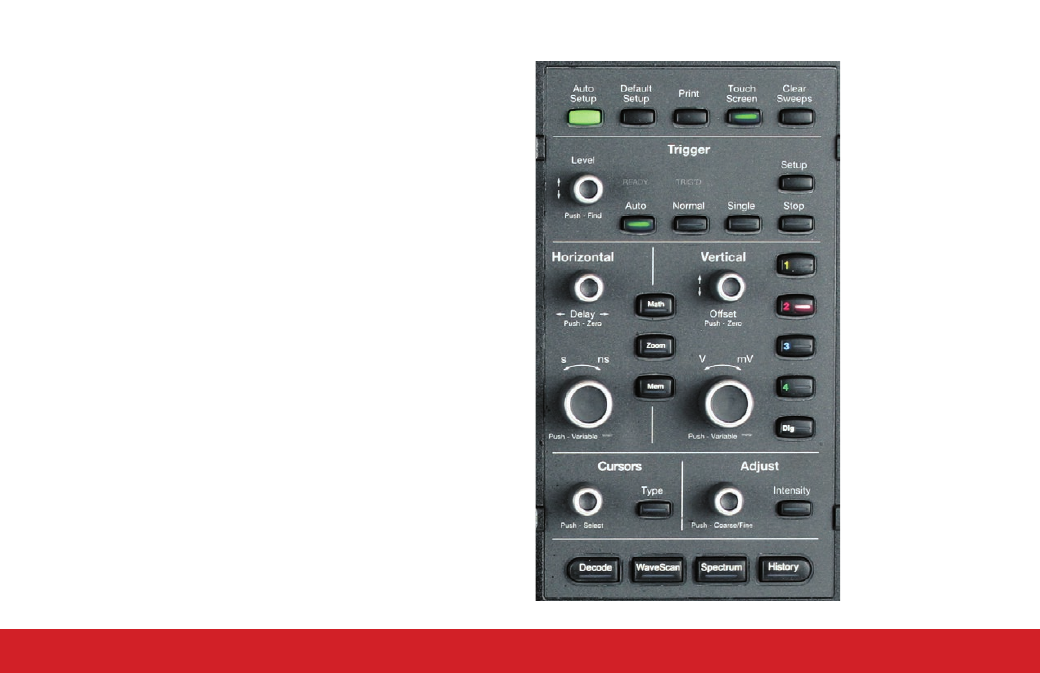

Shortcut buttons arranged across the top of the front panel give quick
access to commonly used functions.
The Print button captures the entire screen and sends it to a printer, saves
it to a file, or creates a Notebook Entry in LabNotebook.
The Touch Screen button enables or disables touch screen functionality.
Other shortcut buttons arranged across the bottom open special
applications.
All of the knobs on the front panel function one way if turned and another
if pushed like a button. The top label describes the knob’s principal “turn”
action, and the bottom label describes its “push” action.
Front panel buttons light up to indicate which functions are active.
