Teledyne LeCroy USB2-GPIB - Manual (Page 6)

4 923571-00 Rev A
(b) Setting Up the GPIB
Set up the GPIB on the measurement screen of the oscilloscope (Figure 2)
following the steps shown below.
j
Touch [Utilities] in the menu bar and select [Utilities Setup] from the
pull-down menu.
k
Click the Remote tab in the setup area in the lower part of the screen.
l
Select GPIB in the ‘Control From’ section.
m
Select the GpibAddress and set an address by entering a value.

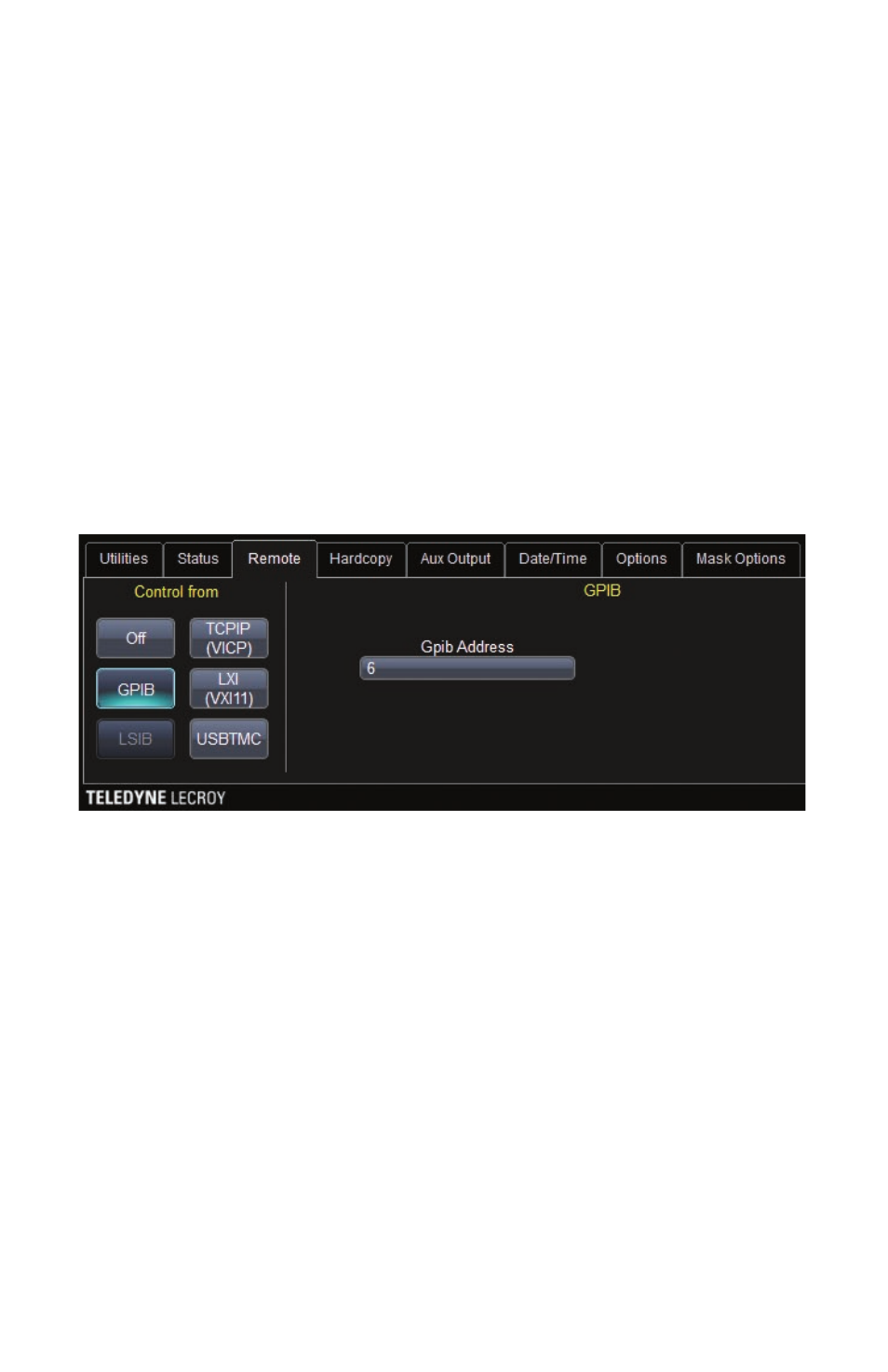

Figure 2 Remote Control Setup Screen of the Wave Runner 6 Zi
