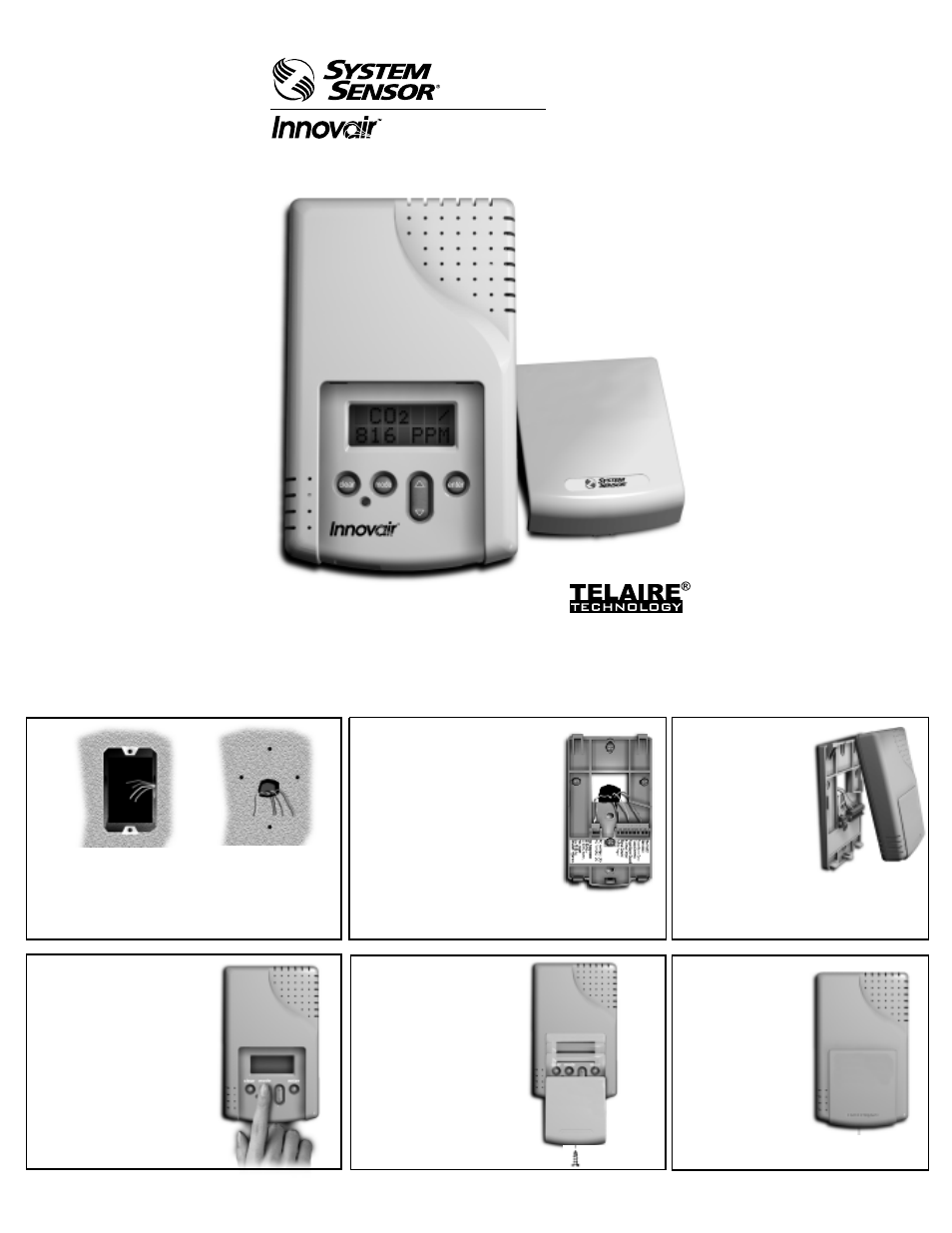

System Sensor CD100VC - Manual

CO
2
Ventilation Controller
User Manual
CD100VC
Featuring
Prepare for installation by
using the mounting holes
configured for US or
European junction boxes. OR
3 .
4 .
Mount the
Controller on the
base by aligning
the top clips and
then securing to
the bottom clips. A
“snap” sound will
indicate that the
sensor is secure.
The sensor will
now have power.
In less than 2 minutes, the
sensor will stabilize and display
the “Normal Mode” (current
CO
2 readings).
At this point one of nine
preset programs or one
custom channel can be
selected for operation. Use
the charts below to select a
preset or to select/modify
sensor settings.
5 . Finish installation by
sliding the cover over
the menu keys and
secure with the
supplied screw.
1 . 2 . Secure the Mounting Plate to
the wall or junction box and
make necessary wire
connections.
Installation
Use the mounting plate
as a template to mark
mounting and wiring
holes.
6 .
Ready for
operation!
Terminal Block Designations
1 Not Used
2 Not Used
3 Relay Norm Open
4 Relay Common
5 Relay Norm Closed
6 4-20mA Output
7 Signal Ground
8 0-10V Output
1 AC+ / DC+
2 AC- / GND
