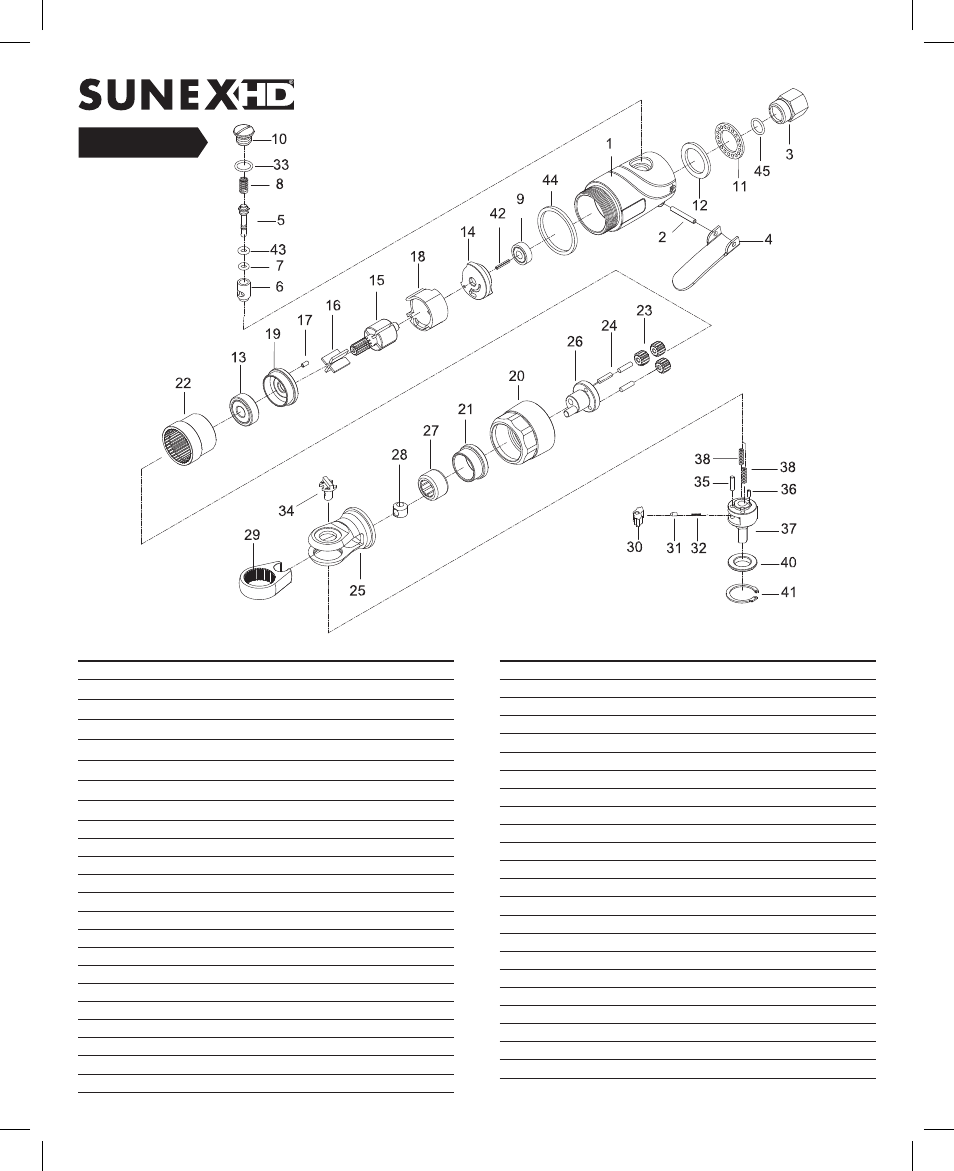

REF. PART
NO. NO. DESCRIPTION QTY.
1 RS382001 Housing 1
2 RS382002 Spring Pin (3 x 20L) 1
3 RS382003 Air Inlet 1
4 RS382004 Throttle Lever 1
5 RS382005 Valve Stem 1
6 RS382006 Valve Bushing 1
7 RS382007 O-Ring 1
8 RS382008 Spring 1
9 RS30516 Ball Bearing (696ZZ) 1
10 RS382010 Throttle Valve Plug 1
11 RS382011 Exhaust Diffuser 1
12 RS382012 Damping Material 1
13 RS30524 Ball Bearing (608ZZ) 1
14 RS382014 Rear End Plate 1
15 RS382015 Rotor 1
16 RS382016 Vane (pack of 4) 1
17 RS433517 Spring Pin (2.5 x 5L) 1
18 RS382018 Cylinder 1
19 RS382019 Front End Plate 1
20 RS382020 Clamp Nut 1
21 RS382021 Needle Housing 1
22 RS382022 Internal Gear 1
23 RS382023 Planet Gear 3
REF. PART
NO. NO. DESCRIPTION QTY.
24 RS382024 Pin (3.5 x 11.8L) 3
25 RS382025 Ratchet Housing 1
26 RS382026 Crank Shaft 1
27 RS382027 Needle Bearing (HK1312) 1
28 RS382028 Drive Bushing 1
29 RS382029 Yoke 1
30
*
Ratchet Pawl 1
31
*
Spring Cap 1
32
* Spring
1
33 RS382033 O-Ring (8 x 2) 1
34
*
Reverse Shaft 1
35
*
Pin (3. x 10.8) 1
36
*
Spring Pin (2 x 5L) 1
37
*
Ratchet Anvil (1/4") 1
38
* Spring
2
40
*
Thrust Washer 1
41
*
Retainer Ring 1
42 RS382042 Spring Pin (2 x 12L) 1
43 RS78707 O-Ring (3.8 x 1.9) 1
44 RS382044 Rubber Ring 1
45 RS433509 O-Ring (11.4 x 1.25) 1
* Available only as RSRHK3820 head repair kit.
1/4" DRIVE
STUBBY AIR
RATCHET
SX3820
SX3820: Parts Breakdown & Operating Manual 4 1/24/12
