Sunex Tools SX6215 - Manual (Page 4)

REF. PART
NO. NO. DESCRIPTION QTY.
101 RS6215101 Collet 1
102 RS6215102 Blade Holder Guide 1
103 RS6215103 Blade Guard 1
104 RS2215104 Flat Washer 1
105 RS6215105 Half Round H.D. Hex Bolt 1
106 RS6215106 Hex Soc. H.D. Screw 1
107 * Replacement Saw Blade 1
108 RS2215108 Hex Soc. H.D. Screw 2
201 RS6215201 Housing 1
202 RS6215202 End Cap 1
203 RS6215203 O-Ring 1
204 RS6215204 O-Ring 1
205 RS6215205 Pin 2
206 RS6215206 Deflector 1
207 RS6215207 Lock Ring 1
209 RS6215209 Protective Cushion 1
301 RS76621 O-Ring 1
302 RS6215302 Magazine Unit 1
303 RS6215303 Feed Bumper 1
304 RS6215304 Piston Shaft Unit 1
305 RS6215305 Cylinder Unit 1
306 RS2215309 Discharge Sheet 1
307 RS6215307 Collar 1
308 RS6215308 Top Stem Valve 1
REF. PART
NO. NO. DESCRIPTION QTY.
309 RS6215309 Hex Soc. H.D. Bolt 4
310 RS6215310 Spring 1
311 RS6215311 Shock-Reduction Spring 1
312 RS6215312 Feed Bumper 1
314 RS6215314 Muffler 1
315 RS6215315 Hex Soc. H.D. Bolt 2
316 RS6215316 Muffler Cap 1
318 RS6215318 Pin 2
319 RS6215319 Lock Ring 1
401 RS6215401 Body-Throttle Valve 1
402 RS6215402 Valve Stem Unit (Incl. #403) 1
403 O-Ring (Incl. w/ #402) 1
404 RS2215404 Valve Stem Spring 1
405 RS6215405 Valve Seal 1
406 RS6215406 Lock Ring 1
407 RS2215406 O-Ring 1
408 RS6215408 Trigger Assy (Incl. #409, 410,
& 411) 1
409 Safety (Incl. w/ #408) 1
410 Spring (Incl. w/ #408) 1
411 RS1837109 Spring Pin 2
* Available as RS18TPIBLADES (5 PK); RS24TPIBLADES (5 PK);
RS32TPIBLADES (5 PK)
LOW
VIBRATION
AIR SAW

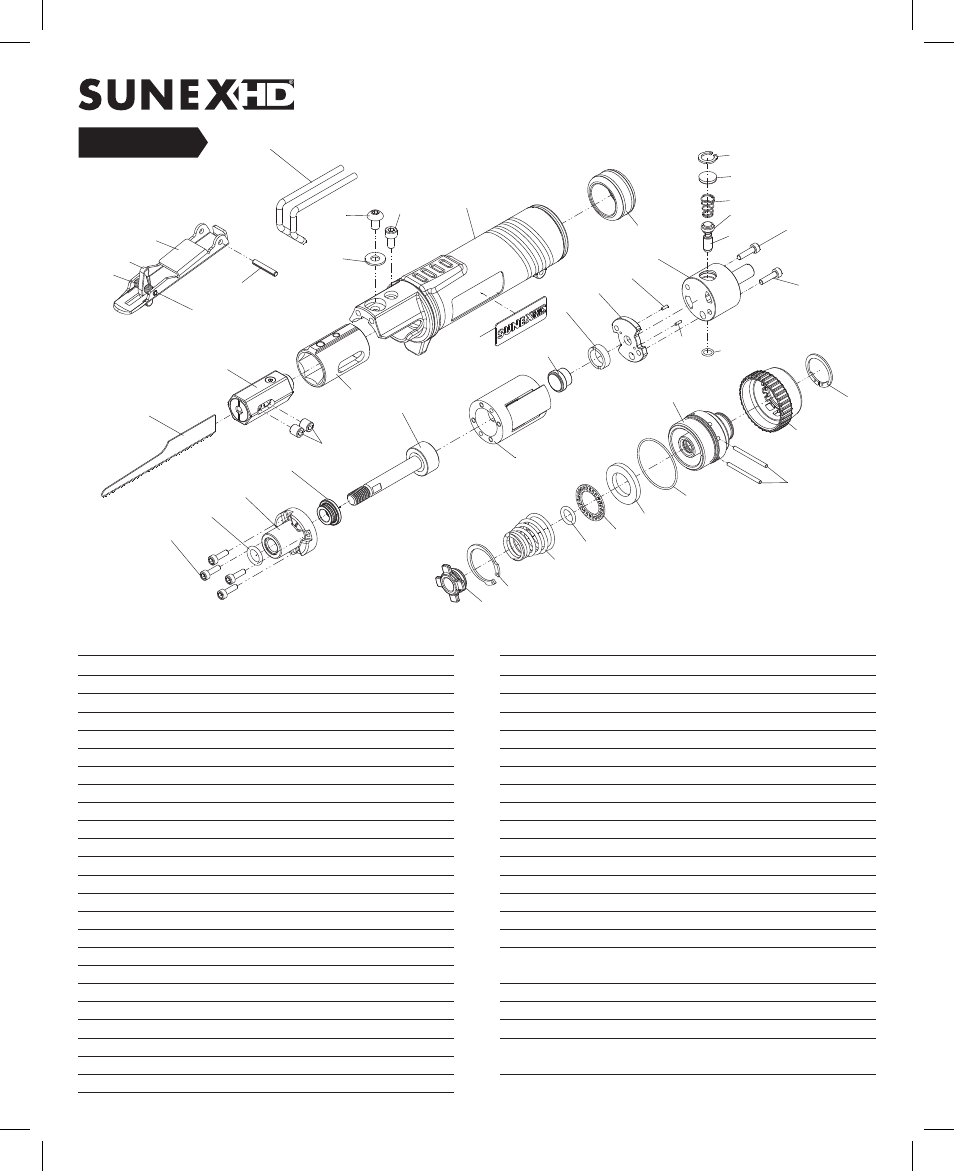

SX6215
104
105
106
201
306
305
307
209
308
318
318
203
316
314
204
202
205
206
207
310
319
311
401
407
312 315
315
402
403
404
405
406
103
411
411
408
409
410
107
309
301
302
303
304
108
102
101
SX6215: Parts Breakdown & Operating Manual 4 7/28/11
