Steelcraft Automotive 402229p 5 PREMIUM OVAL SIDE BAR User Manual
Steelcraft Automotive For the car
5” OVAL BENT END SIDE BARS
01-12 1500-2500-3500 SILVERADO/SIERRA CREW CAB
Page 1 of 4 10/19/11 (DP)
PARTS LIST:
1 Driver/Left Side Bar
4
12mm x 32mm x 3mm Flat Washers
1 Passenger/Right Side Bar
2
12mm Lock Washers
1 Driver/Left Front Mounting Bracket
2
12mm Hex Nuts
1 Passenger/Right Front Mounting Bracket
2
10mm Nut Plates
1 Driver/Left Side Center Mounting Bracket
6
10-1.50mm x 30mm Hex Bolts
1
Passenger/Right Side Center Mounting
Bracket
10 10mm x 20mm OD x 2mm Flat Washers
1 Driver/Left Rear Mounting Bracket
6
10mm Lock Washers
1 Passenger/Right Rear Mounting Bracket
4
10mm Hex Nuts
1 Driver/Left Front Support Bracket
12 8-1.25mm x 25mm Hex Bolts
1 Passenger/Right Front Support Bracket
12
8mm ID x 24mm OD x 2mm Flat
Washers
2 Center Support Brackets
12 8mm Lock Washers
2 12-1.75mm x 30mm Hex Bolts
PROCEDURE:
REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ FACTORY BODY BOLT
REMOVAL INSTRUCTIONS AND INSTALLATION INSTRUCTIONS CAREFULLY BEFORE STARTING
INSTALLATION.
1. Start the installation under the driver side of the vehicle and remove the front, center and rear body
mount bolts. Do not remove bushings.
2. Hang the driver side front, center and rear Mounting Brackets from the body mounts in the order
pictured above using the factory hex bolts, (Figures 1 & 2). Do not tighten hardware at this time.
3. Locate the two factory holes in the bottom of the frame towards the front of the vehicle. Insert (1) 10mm
Nut Plate, (Figure 3A), into the oval hole and line up the threaded nut with the forward round hole,
(Figure 3B). NOTE: Nut Plate and Support Bracket are not required on 2011-12 25-3500 models.

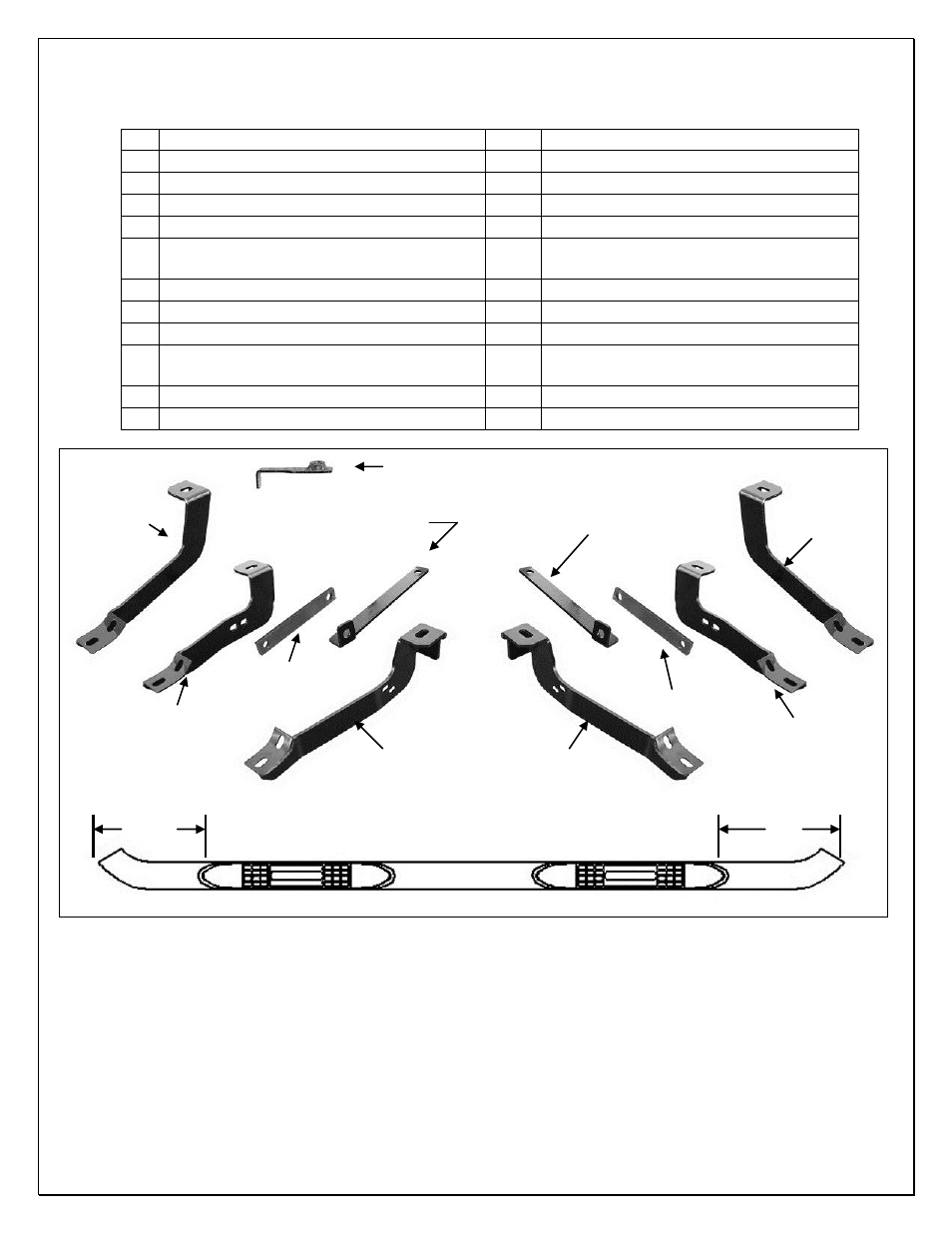

Passenger/Right
Center Mounting
Bracket
Passenger/
Right Rear
Mounting
Bracket
Passenger/Right Front
Mounting Bracket
Driver/Left
Rear
Mounting
Bracket
Driver/Left
Center Mounting
Bracket
Driver/Left Front
Mounting Bracket
Driver/Left Front
Support Bracket
Passenger/Right
Front Support Bracket
Center
Support
Bracket
(2) 10mm Nut Plates
Center
Support
Bracket
Rear
Note: Front step pad is farther back
from end of tube than rear step pad
14"
11-1/2"
Front
