Steelcraft Automotive 433109p 5 PREMIUM OVAL SIDE BAR User Manual
Steelcraft Automotive For the car

5IN BENT END SIDEBAR
07-12 TOYOTA TUNDRA DOUBLE CAB
Page 1 of 2
12/16/11 (DP)
PARTS LIST:
1 Driver Sidebar
1 Driver/Left Rear Mounting Bracket
1 Passenger Sidebar
1 Passenger/Right Rear Mounting Bracket
1 Driver/Left Front Mounting Bracket
24 8-1.25mm x 30mm Hex Bolts
1 Passenger/Right Front Mounting Bracket
24 8mm Lock Washers
1 Driver/Left Middle Mounting Bracket
24 8mm ID x 24mm OD x 2mm Flat Washers
1 Passenger/Right Middle Mounting Bracket
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY.
2. Starting on the driver side front of the vehicle, remove the existing (2) factory bolts, (or plastic plugs), on
the side panel located by the front tire opening, (Figure 1). This will be the mounting location for the
driver side front Mounting Bracket. Partially attach the front Mounting Bracket to the vehicle using the
included (2) 8mm x 30mm Hex Bolts, (2) 8mm Lock Washers and (2) 8mm Flat Washers, (Figure 2).
Do not tighten hardware at this time.
3. Remove the two factory bolts, (or plastic plugs), along the side panel closest to the front Bracket and
the very last two factory bolts, (or plastic plugs), along the side panel toward the back of the cab. Select
the proper Center and Rear Brackets and bolt them to the body panel as described in Step 2, (Figures
3 - 5). Do not tighten hardware at this time.
4. Carefully place the Driver/Left Sidebar onto the (3) Brackets. Align the threaded holes in the bottom of
the Sidebar with the slots on the Mounting Brackets. Attach the Sidebar to the Mounting Brackets with
the included (6) 8mm x 30mm Hex Bolts, (6) 8mm Lock Washers and (6) 8mm Flat Washers, (Figures
3 - 5). Do not tighten hardware at this time.
5. Level and adjust the Sidebar properly and tighten all hardware.
6. Repeat Steps 2-5 for passenger Sidebar installation.
7. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
To protect your investment, wax this product after installing. Regular waxing is recommended to add a
protective layer over the finish. Do not use any type of polish or wax that may contain abrasives that could
damage the finish.
For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the finish. Mild
soap may be used also to clean the Sidebar.
For gloss black finishes: Mild soap may be used to clean the Sidebar.

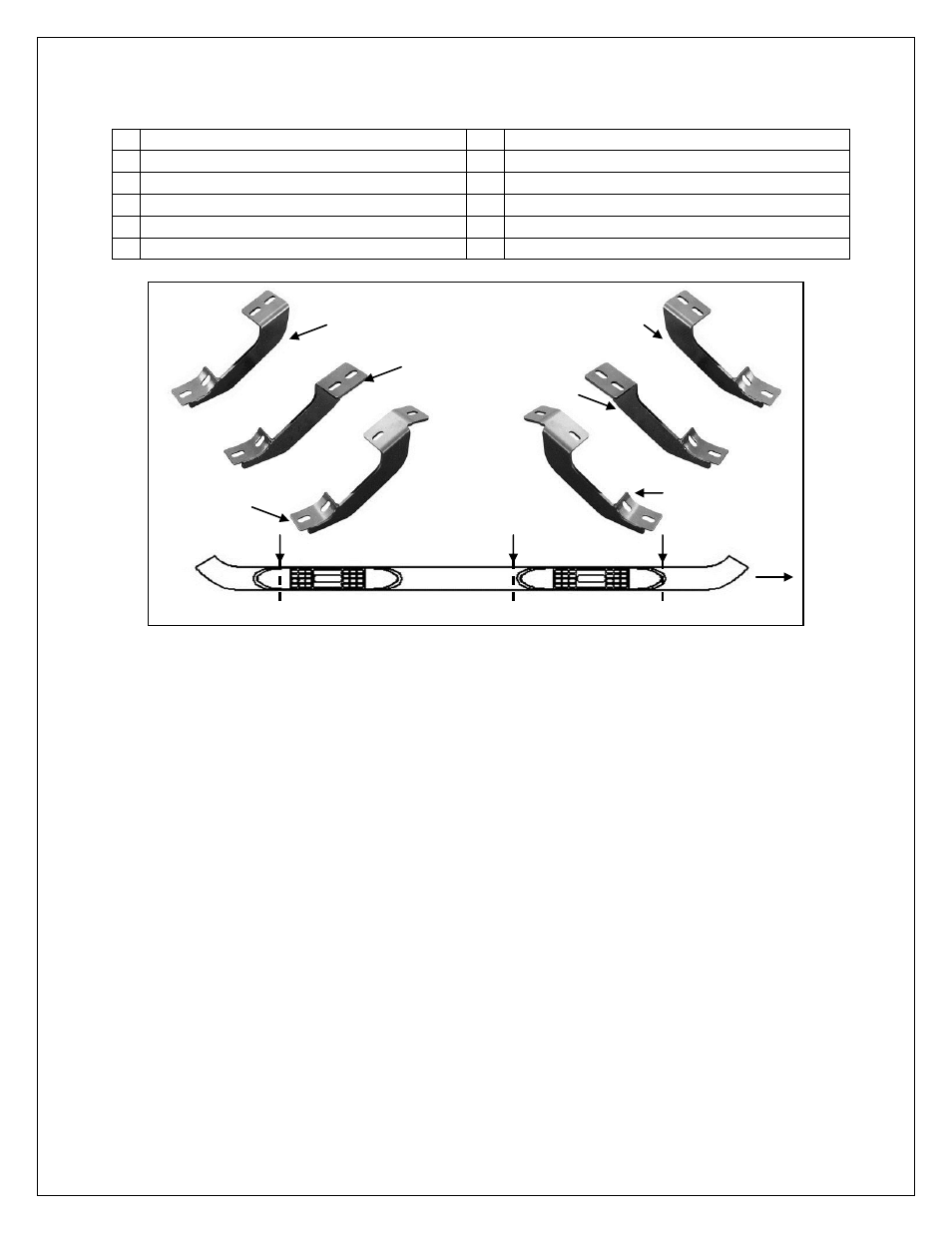

Driver/Left Rear
Mounting Bracket
Driver/Left Center
Mounting Bracket
Driver/Left Front
Mounting Bracket
Passenger/Right Rear
Mounting Bracket
Passenger/Right Center
Mounting Bracket
Passenger/Right Front
Mounting Bracket
Threaded insert locations to
help determine correct Sidebar
Front
Passenger Sidebar illustrated
