Steelcraft Automotive 402220p 4 PREMIUM OVAL SIDE BAR - Manual

Page 1 of 3 2/15/10 Rev1 (DP)
PARTS LIST:
1 Driver/Left Side Bar 4 1/2” x 2” Hex Bolts
1 Passenger/Right Side Bar 4 1/2” Lock Washers
1 Driver Side/Left Front Mounting Bracket 4 1/2” ID x 1-1/2" OD x 1/8" Flat Washers
1 Passenger Side/Right Front Mounting Bracket 2 10-1.50mm x 25mm Hex Bolts
2 Center Mounting Brackets 2 10mm Lock Washers
1 Driver Side/Left Rear Mounting Bracket 2 10mm ID x 20mm OD x 2mm Flat Washers
1 Passenger Side/Right Rear Mounting Bracket
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY.
2. From underside of vehicle, remove the driver side front body mount bolt, steel washer (if
equipped), and rubber bushing, (Figure 1).
3. Select the driver side front Mounting Bracket. Insert the factory body mount bolt through the
Mounting Bracket and into the steel washer, (if equipped), and rubber bushing. Hang the
Mounting Bracket in position by partially threading the factory body mount bolt up into place,
(Figure 2). Repeat this step for the Center Mounting Bracket, (Figure 3), and the Rear
Mounting Bracket, (Figure 4). Snug but do not tighten hardware at this time.
VERY IMPORTANT! There are several different designs, (depending on model year),
for the factory steel body mount bracket, (Figure 1). If necessary, the Front and Rear
Mounting Brackets can be switched, driver side to passenger side, to provide additional
clearance between the gusset on the Mounting Bracket and the factory steel body
mount bracket welded to the frame. To prevent unnecessary noise, adjust the
position of all Mounting Brackets so that once tightened, the Mounting Brackets
do not come in contact with the factory steel body mount bracket.
4. With help position the Side Bar onto the Mounting Brackets. Attach front and rear Mounting
Brackets to Side Bar using the included (2) 1/2 ” x 2” Hex Head Bolts, (2) 1/2” Flat Washers
and (2) 1/2
” Lock Washers, (Figure 2 & 4). Do not tighten at this time.
INSTALLATION INSTRUCTIONS
4" OVAL SIDE BARS WITH BENT ENDS
2002-2010 SILVERADO/SIERRA CREW CAB 1500HD
2004-2005 SILVERADO/SIERRA CREW CAB 1500LD
2001-2010 SILVERADO/SIERRA CREW CAB 2500HD-3500

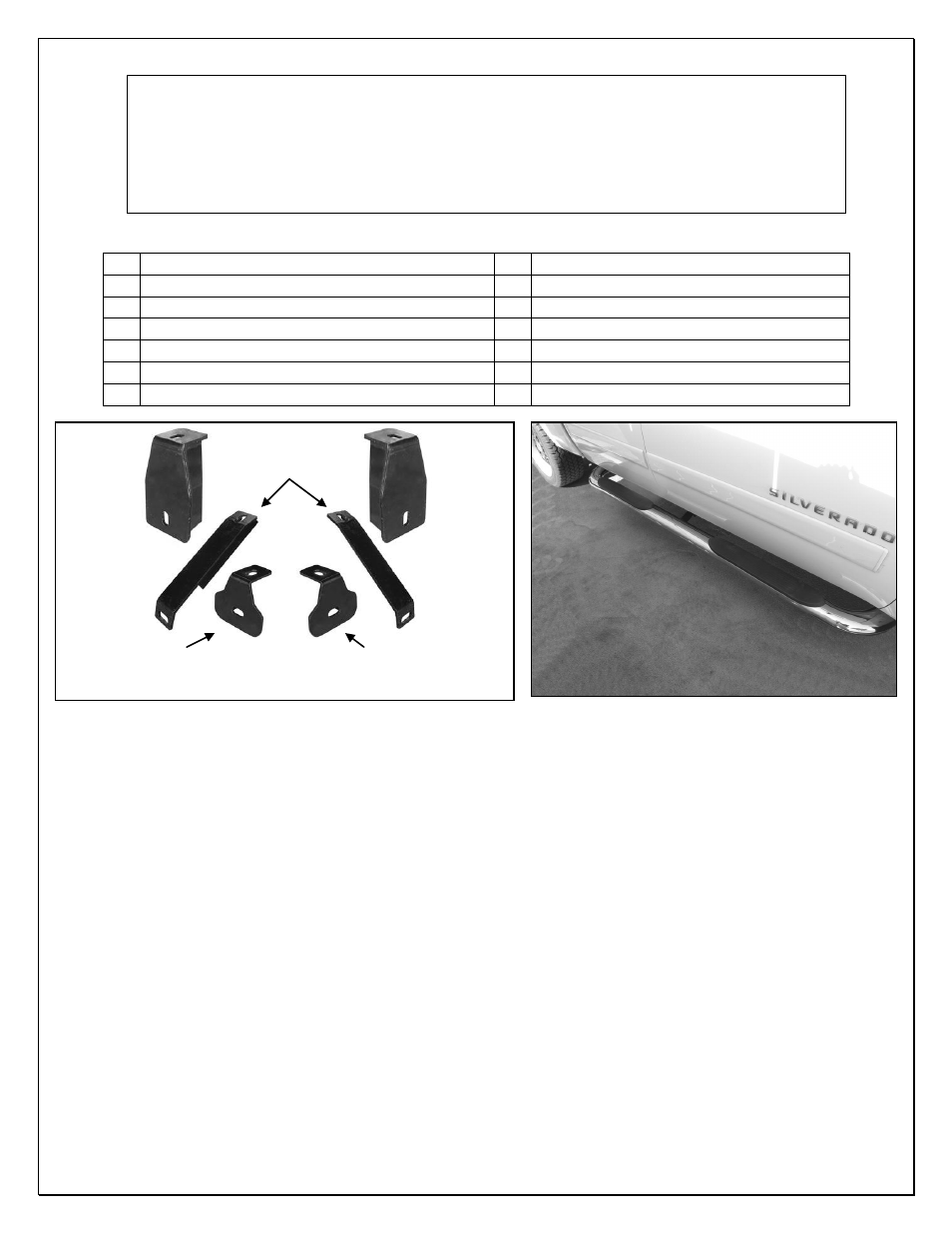

Driver side
rear
Mounting
Bracket
Driver side front
Mounting Bracket
(2) Center Mounting
Brackets
Passenger side front
Mounting Bracket
Passenger
side rear
Mounting
Bracket
Complete Installation
