Steelcraft Automotive 430907 4 OVAL SIDE BAR - Manual

4" OVAL STRAIGHT SIDE BARS
05-11 TACOMA DOUBLE CAB
Page 1 of 2 4/1/11 Rev1(DP)

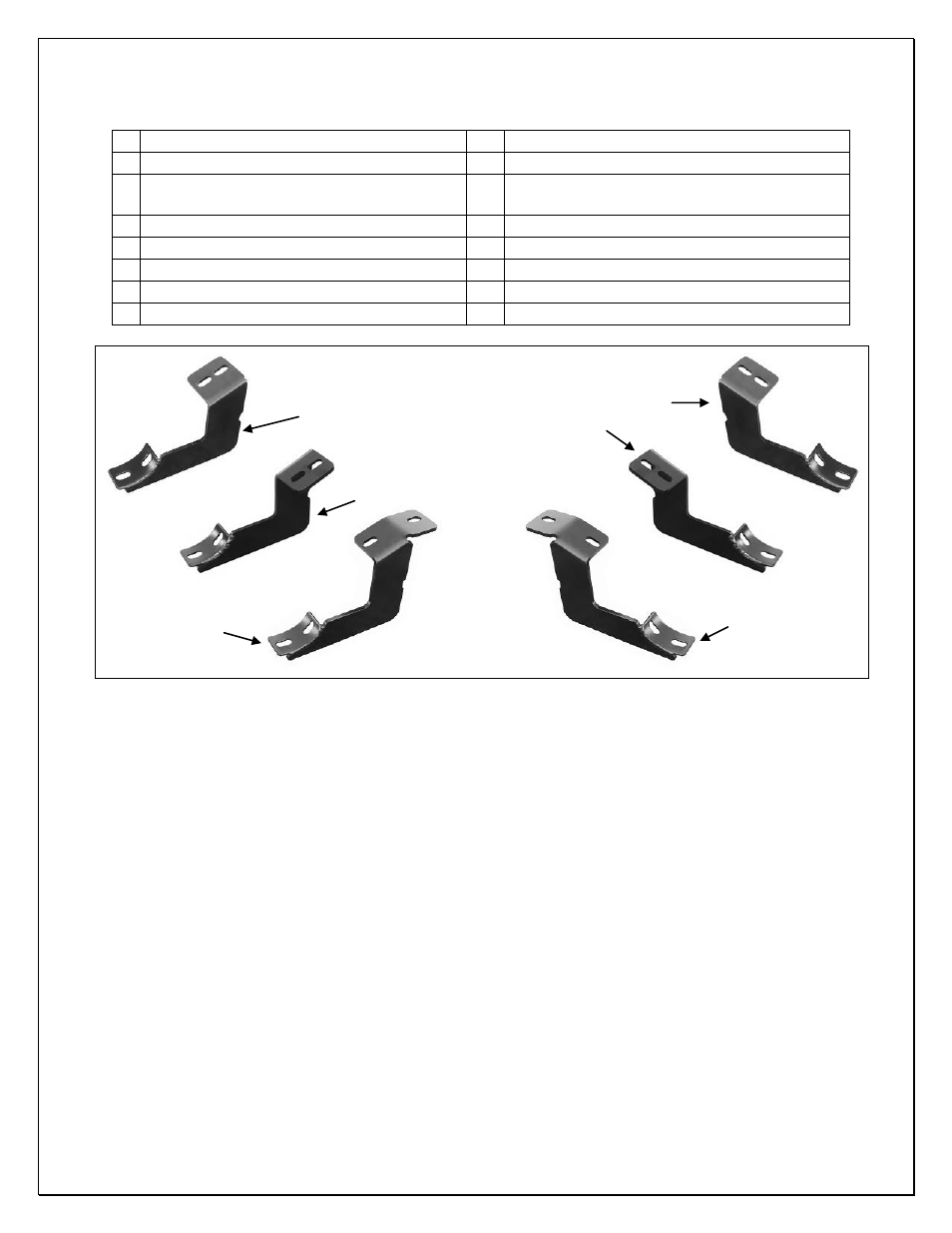

Driver/Left Side Front
Mounting Bracket
Driver/Left Side Rear
Mounting Bracket
Driver/Left Side Center
Mounting Bracket
PARTS LIST:
1 Driver Sidebar 12 8-1.25mm x 30mm Hex Bolts
1 Passenger Sidebar 12 8-1.25mm x 25mm Hex Bolts
1
Driver/Left Front Mounting Bracket
12
8mm x 28mm OD x 3mm Large Flat
Washers
1 Passenger/Right Front Mounting Bracket 12 8mm x 24mm OD x 2mm STD Flat Washers
1 Driver/Left Middle Mounting Bracket 24 8mm Lock Washers
1 Passenger/Right Middle Mounting Bracket
1 Driver/Left Rear Mounting Bracket
1 Passenger/Right Rear Mounting Bracket
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY.
2. Starting on the driver side front of the vehicle, use a flat screw driver to remove the plastic
plugs. Partially attach driver side front Mounting Bracket to vehicle using the included (2) 8mm
x 30mm Hex Bolts, (2) 8mm Lock Washers, and (2) 8mm x 28mm x 3mm Large Flat Washers.
Repeat this step for center and rear Mounting Bracket installation.
3. Carefully place the driver Sidebar onto the Brackets. Align the threaded inserts in the bottom of
the Side Bar with the slots on the Mounting Brackets. Attach the Sidebar to the Mounting
Brackets with the included (6) 8mm x 25mm Hex Bolts, (6) 8mm Lock Washers and (6) 8mm x
24mm OD x 2mm STD Flat Washers. Do not tighten hardware at this time.
4. Level and adjust the Sidebar properly and tighten all hardware.
5. Repeat Steps 2-4 for passenger Sidebar installation.
6. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
To protect your investment, wax this product after installing. Regular waxing is recommended to add a
protective layer over the finish. Do not use any type of polish or wax that may contain abrasives that could
damage the finish.
For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the finish. Mild
soap may be used also to clean the Sidebar.
For gloss black finishes: Mild soap may be used to clean the Sidebar.
