Steelcraft Automotive 221900 3 ROUND SIDE BAR - Manual (Page 3)

SIDEBAR
07-12 WRANGLER 4DR
Page 3 of 3 2/27/12 Rev3 (DP)

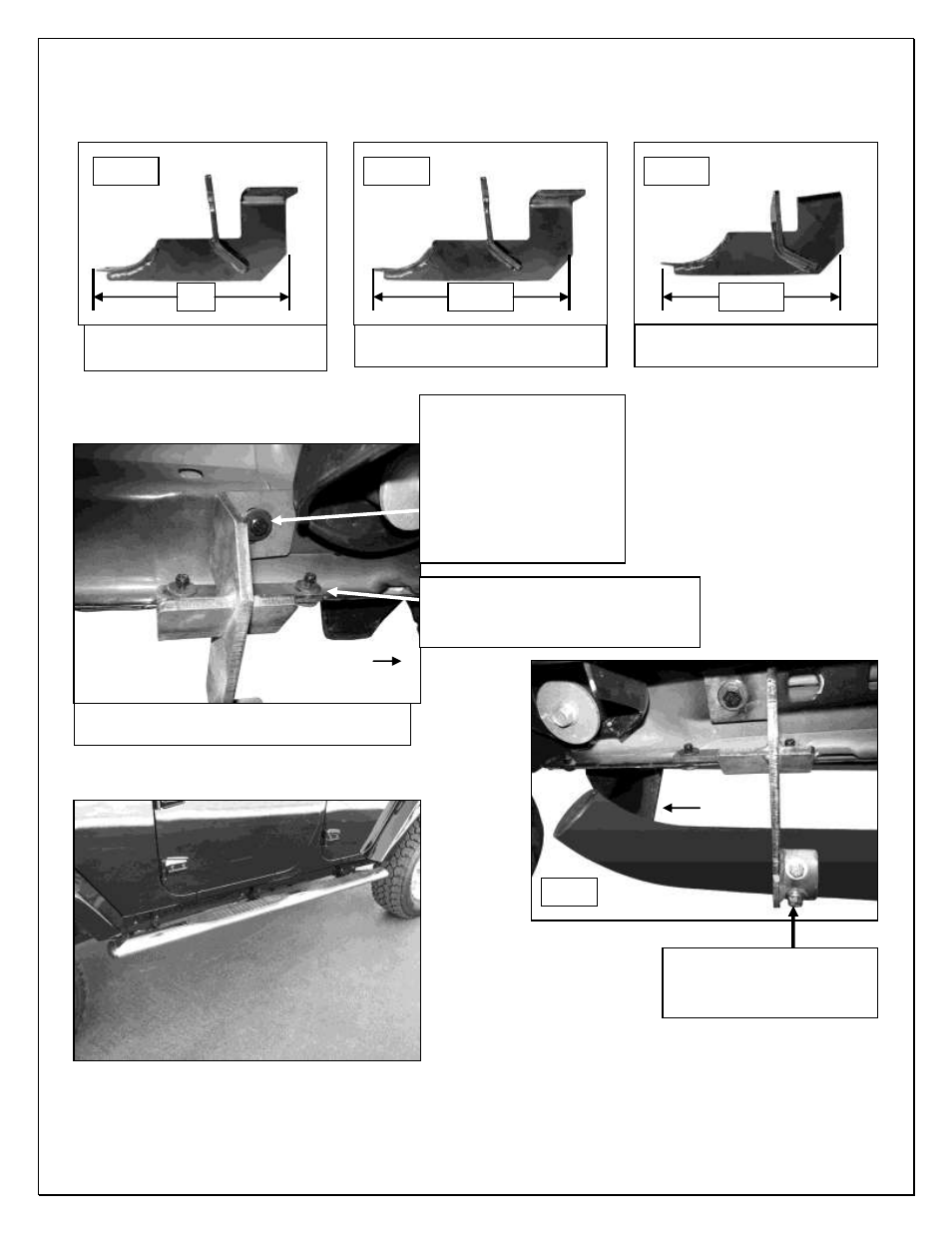

Passenger Side Installation Pictured
9-3/4"
Fig 3C
(Fig 3A) Passenger side "long"
center Bracket pictured
(Fig 4) Passenger side Rear Mounting
Bracket installation pictured (short bracket)
Fig 5
Complete Installation
10mm Nut Plate
10mm x 35mm Hex Bolt
10mm Lock Washer
10mm Flat Washer
OR
8mm x 35mm Hex Bolt
8mm Lock Washer
8mm x 28mm OD x 3mm
Large Flat Washer
(2) 8mm x 25mm Hex Bolts
(2) 8mm Lock Washers
(2) 8mm STD Flat Washers
Rear
Front
Passenger side "mid-length"
front Bracket pictured Passenger side "short" rear
Bracket pictured
bracket pictured
9"
Fig 3B
8-1/4"
Fig 3D
(2) 6mm x 25mm Button Head Bolts
(4) 6mm Flat Washers
(2) 6mm Nylon Lock Nuts
