Steelcraft Automotive 241400 3 ROUND SIDE BAR - Manual

Page 1 of 4 1/26/09 (DP) Rev B

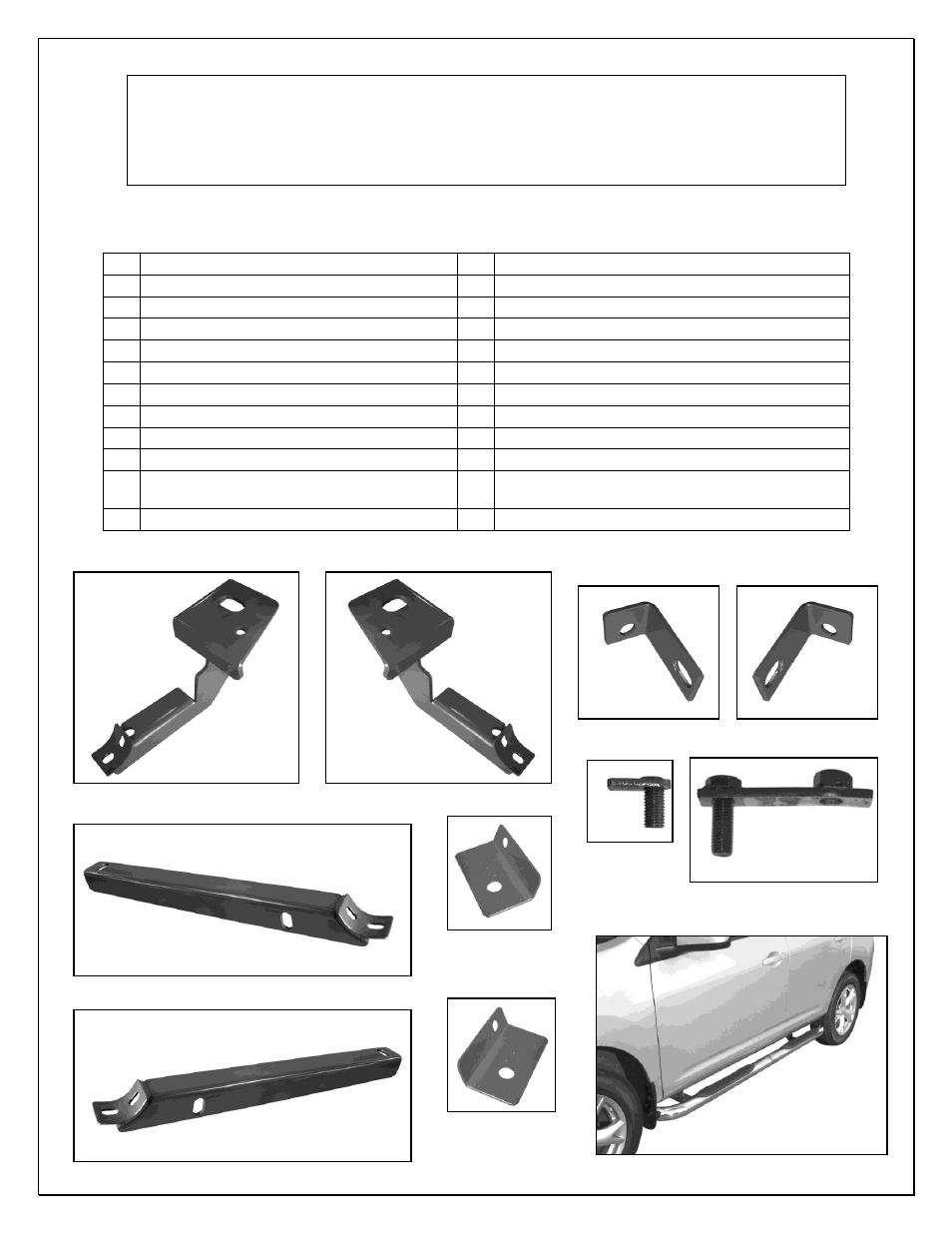

PARTS LIST:
1 Driver/Left Sidebar 10 8-1.25mm x 30mm Hex Head Bolts
1 Passenger/Right Sidebar 2 8-1.25mm x 20mm Button Head Bolts
1 Driver/Left Front Mounting Bracket 12 8mm Lock Washers
1 Passenger/Right Front Mounting Bracket 2 8mm Hex Nuts
1 Driver/Left Rear Mounting Bracket 12 8mm ID x 24mm OD x 2mm Flat Washers
1 Passenger/Right Rear Mounting Bracket 4 10-1.50mm x 35mm Hex Head Bolts
1 Driver/Left Front Support Bracket 6 10mm Lock Washers
1 Passenger/Right Front Support Bracket 4 10mm Hex Nuts
2 Locking Brackets 8 10mm ID x 26mm OD x 3mm Flat Washers
2 10-1.50mm x 25mm Bolt Plates 2 12mm Lock Washers
2
12-1.75mm x 35mm Bolt Plates with
Nut10MM
2 12mm Hex Nuts
2 13mm ID x 43mm OD x 4mm Fender Washers
INSTALLATION INSTRUCTIONS
SIDEBAR
08-ON NISSAN ROGUE
PART #
Driver Side Rear
Mounting Bracket
Passenger Side Rear
Mounting Bracket
Driver Side Front
Mounting Bracket
Passenger Side Front
Mounting Bracket
Driver Side
Support Bracket Passenger Side
Support Bracket
10mm x 25mm
Bolt Plate
(2 pcs)
12mm x 35mm
Bolt Plate
with10mm Nut
(2 pcs)
Driver Side
Locking Bracket
Passenger Side
Locking Bracket
