3” SIDEBAR WITH BENT ENDS
1999-2011 SILVERADO/SIERRA EXTRA CAB 1500/2500LD
2001-2011 SILVERADO/SIERRA EXTRA CAB 2500HD-3500
Page 2 of 2 2/1/11 Rev1 (DP)
Fig 2
5. Line up the slot in the Center Support Bracket with the threaded insert in the Sidebar. Bolt the
Bracket to the Sidebar with (1) 10mm x 25mm Hex Bolt, (1) 10mm Lock Washer and (1) 10mm
Flat Washer, (Figure 4).
6. Level and adjust the Sidebar, check Mounting Brackets for clearance between factory steel
body mount brackets. Once satisfied with fit, tighten all hardware.
7. Repeat Steps 2 – 6 for passenger/right Sidebar installation.
8. Do periodic inspections to the installation to make sure that all hardware is secure and tight.
To protect your investment, wax this product after installing. Regular waxing is recommended to
add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives
that could damage the finish.
For stainless steel: Aluminum polish may be used to polish small scratches and scuffs on the finish.
Mild soap may be used also to clean the Sidebar.
For gloss black finishes: Mild soap may be used to clean the Sidebar.
Driver/Left Sidebar installation pictured
1/2 ” x 2” Hex Bolt
1/2” Lock Washer
1/2
” Flat Washer
Factory Bolt
Factory Middle Body Mount Bolt

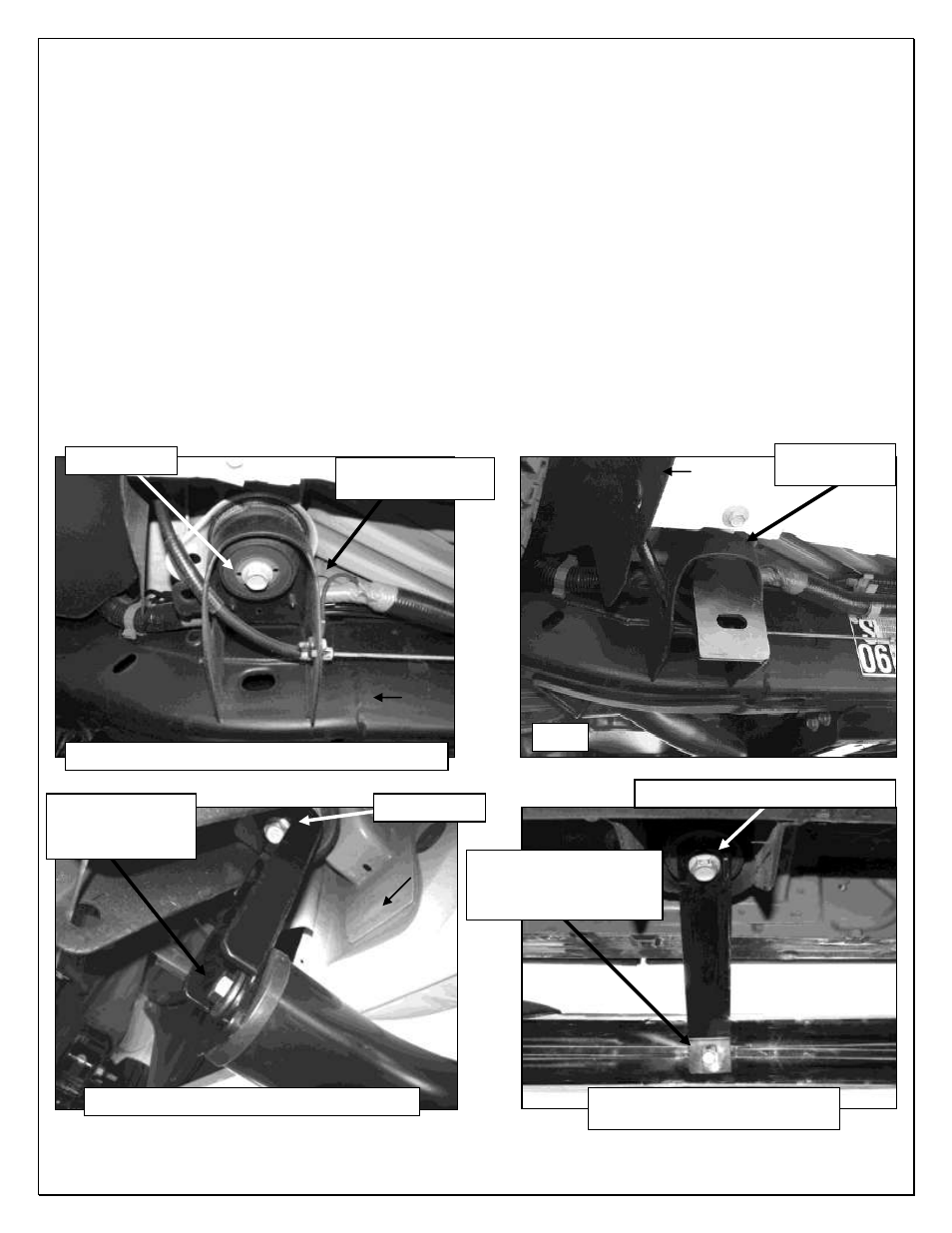

(Fig 1) Driver Side Front Mounting Location
(Fig 4) Driver Side Support
Bracket Mounting Location (Fig 3) Driver Side Rear Mounting Location
Front
Rear
Factory Steel Body
Mount Bracket
Factory Steel
Body Mount
10mm x 25mm Hex Bolt
10mm Lock Washer
10mm Flat Washer
Factory Bolt
Front
