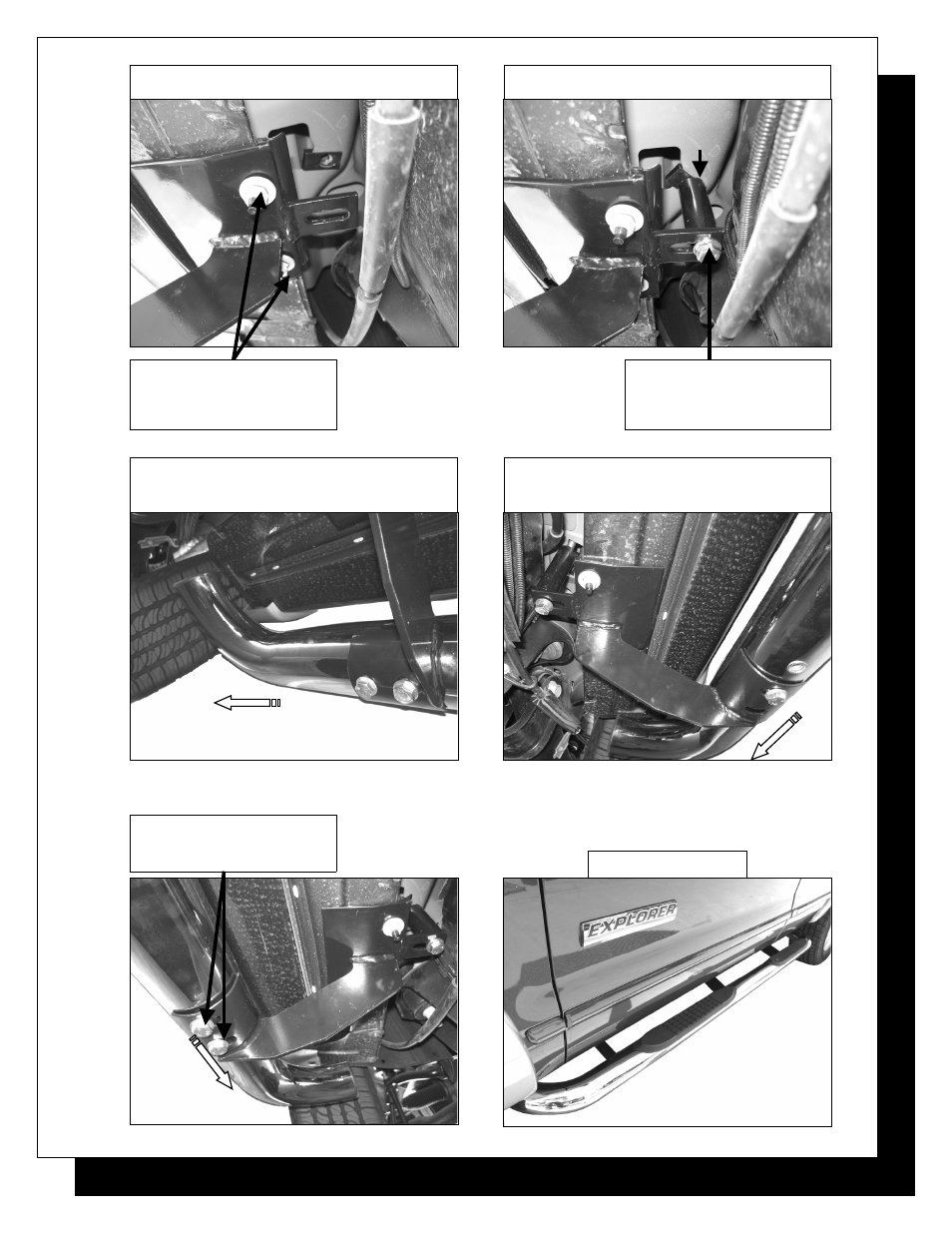

Driver Side Front Mounting Bracket Shown Driver Side Front Mounting Bracket Shown
02-05 Explorer: Rear Mounting Brackets mount
with cradles facing the rear of the vehicle and with
two 10mm x 30mm hex bolts
06-07 Explorer: Rear Mounting Brackets mount
with cradles facing the front of the vehicle and with
one 10mm x 30mm hex bolt
Installation Complete
10mm x 30mm Hex Head Bolts
10mm Flat Washers
10mm Lock Washers
Page 2 of 3
6/5/07 (AM)
10mm x 30mm Hex Head Bolts
10mm Flat Washers
10mm Lock Washers
10mm Hex Nuts
Small Tube Spacer
(10mm Clip Nut)
10mm x 100mm Hex Head Bolt
10mm Lock Washer
10mm Flat Washer
Rear of vehicle
Rear of
vehicle
Front of
vehicle
Figure 3 Figure 4
Figure 5 Figure 6
