Steelcraft Automotive 213410 3 ROUND SIDE BAR - Manual (Page 3)

3" 90DEG BENT END SIDEBARS
04-08 F-150 SUPER CAB
Page 3 of 3 6/2/11 Rev2(DP)

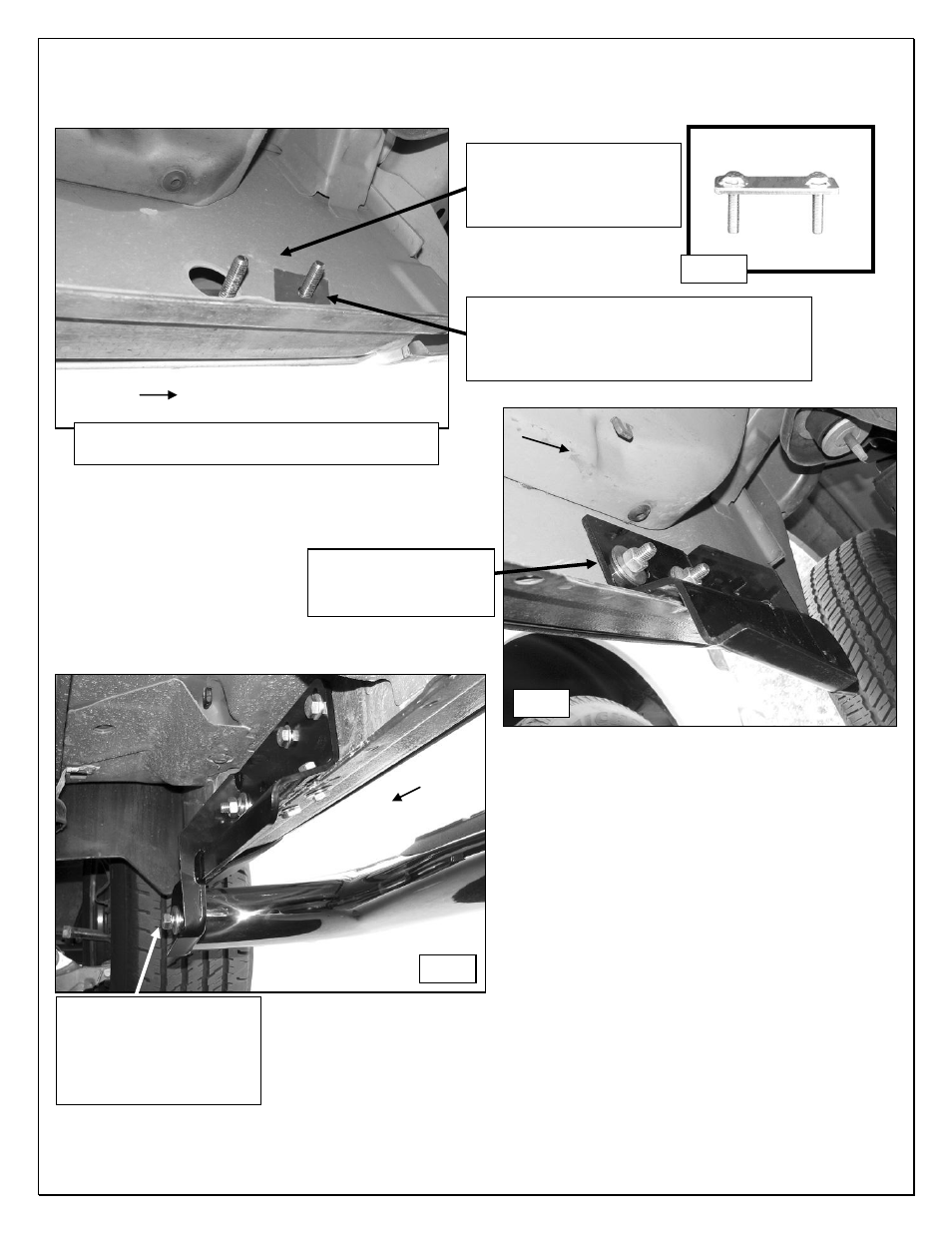

PASSENGER SIDE INSTALLATION PICTURED
(Fig 4A) Passenger side rear mounting location
pictured. Shown with Plastic Retainer in place
Remove sealing tape
and/or rubber grommets to
uncover the rear location
for the Mounting Brackets
Insert the 12mm Double Bolt Plate into the
large round hole and back out the oval hole.
Thread the 12mm Plastic Retainer onto the
threaded end and cover the oval hole.
2) 12mm Flat Washers
2) 12mm Lock Washers
2) 12mm Hex Nuts
Secure the Sidebar to the
Mounting Brackets with:
1/2" x 2" Hex Bolts
1/2" Flat Washers
1/2" Lock Washers
Rear
Rear
Fig 5
Fig 6
Front
Fig 4B
