Steelcraft Automotive 71330 SPORT BAR User Manual

Steelcraft Automotive For the car

background image

SPORT BAR

08-10 FORD ESCAPE

Page 1 of 3 6/11/08 (AM) Rev A

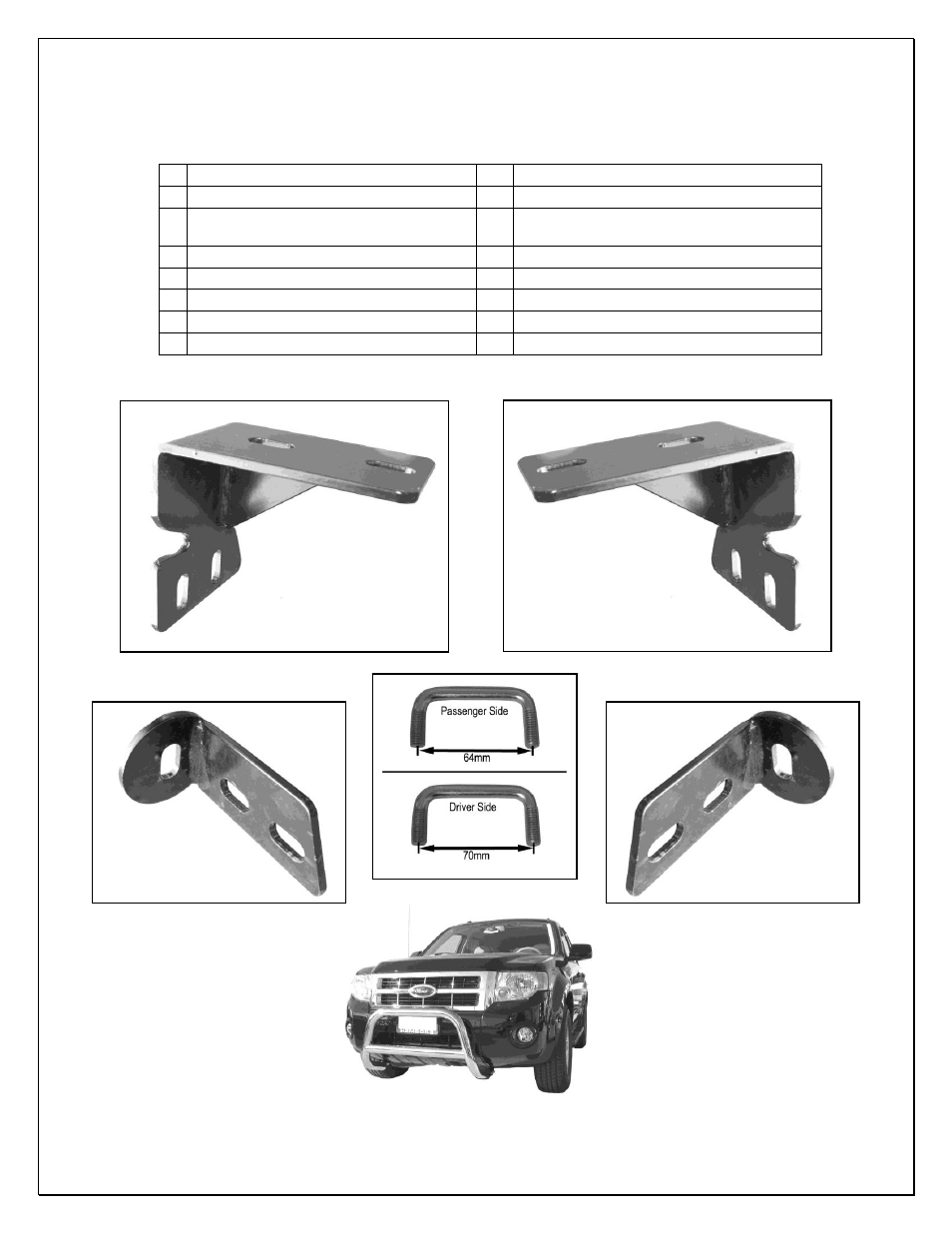

PARTS LIST:

1 Sport Bar

4 10mm Hex Nuts

1 Driver/Left Mounting Bracket

4 10mmLock Washers

1 Passenger/Right Mounting Bracket

4

10mm ID x 30mm OD x 2.5mm Flat
Washers

1 Driver/Left Bull Bar Bracket

2 12-1.75mm x 50mm Hex Head Bolts

1 Passenger/Right Bull Bar Bracket

4 12-1.75mm x 30mm Hex Head Bolts

2 10-1.50mm U-Bolts

4 12mm Hex Nuts

6 12mm Lock Washers

10 12mm ID x 37mm OD x 3mm Flat Washers

Driver Side Frame Bracket

Passenger Side Frame Bracket

Driver Sport Bar Bracket

Passenger Sport Bar Bracket

10mm “U” Bolts
