Steelcraft Automotive 73280 SPORT BAR - Manual

SPORT BAR
06-13 TOYOTA RAV4
Page 1 of 3 2/26/13 (DP)
PARTS LIST:
1 Sport Bar 4 12-1.75mm x 35mm Hex Bolts
1 Driver/Left Frame Mounting Bracket 2 12-1.75mm x 40mm Hex Bolts
1 Passenger/Right Frame Mounting Bracket 6 12mm Lock Washers
1 Driver/Left Mounting Bracket 10 12mm x 32mm OD x 3mm Flat Washers
1 Passenger/Right Mounting Bracket 4 12mm Hex Nuts
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ INSTRUCTIONS
CAREFULLY BEFORE STARTING INSTALLATION. CUTTING IS REQUIRED. ASSISTANCE IS
RECOMMENDED.
2. Starting under the front of the vehicle, remove the plastic splash guard and place it on a clean, stable
work area. IMPORTANT: Pay close attention to the specific location of all of the two-piece plastic clips
and screws to make reinstallation easier. Use a small flat blade screwdriver to gently pry up the plastic
center pin to release the clip. Remove the center pin and the plastic housing of each clip.
3. Locate the factory hex bolts securing the crossmember to the frame, (Figure 1). Select the driver side
Frame Bracket. Line up the Bracket with the (3) factory hex bolts to determine the correct bolts to
remove. Remove the (3) hex bolts. NOTE: Only install one Frame Bracket at a time and only remove
the (3) factory hex bolts required for Bracket installation, (Figure 1). Bolt the Bracket into position with
the factory hex bolts. Snug the hardware but do not fully tighten at this time.
4. Select the driver side sport bar Mounting Bracket, (Figure 2). Bolt the Mounting Bracket to the inside of
the Frame Bracket with the included (2) 12mm x 35mm Hex Bolts, (2) 12mm Lock Washers, (4) 12mm
Flat Washers and (2) 12mm Hex Nuts, (Figure 3). NOTE: There are (3) slots in the Mounting Bracket.
Use the center and front slots for 06-12 vehicles and use the center and rear slot for 2013 vehicles,
(Figure 2). Snug but do not tighten hardware.
5. Repeat Steps 3 - 4 to install the passenger side Brackets.
6. Place the Sport Bar face down on a clean surface in front of the vehicle. With assistance, carefully
position the Sport Bar up to the Mounting Brackets. Attach the Sport Bar to the Mounting Brackets
using the included (2) 12mm x 40mm Hex Bolts, (2) 12mm Lock Washers, (2) 12mm Flat Washers,
(Figure 4).
7. Level and adjust the Sport Bar and tighten all hardware.
8. Hold the splash guard up into position under the Mounting Brackets and mark the location of the
Brackets onto the inside of the cover, (Figure 5). Cut the splash guard to clear the Mounting Brackets,
(Figure 6). IMPORTANT: To maintain strength, cut only what is required to clear the Mounting
Brackets. Once cut and trimmed for fit, reinstall the splash guard using the factory hardware.
9. Do periodic inspections to the installation to make sure that all hardware is secure and tight.

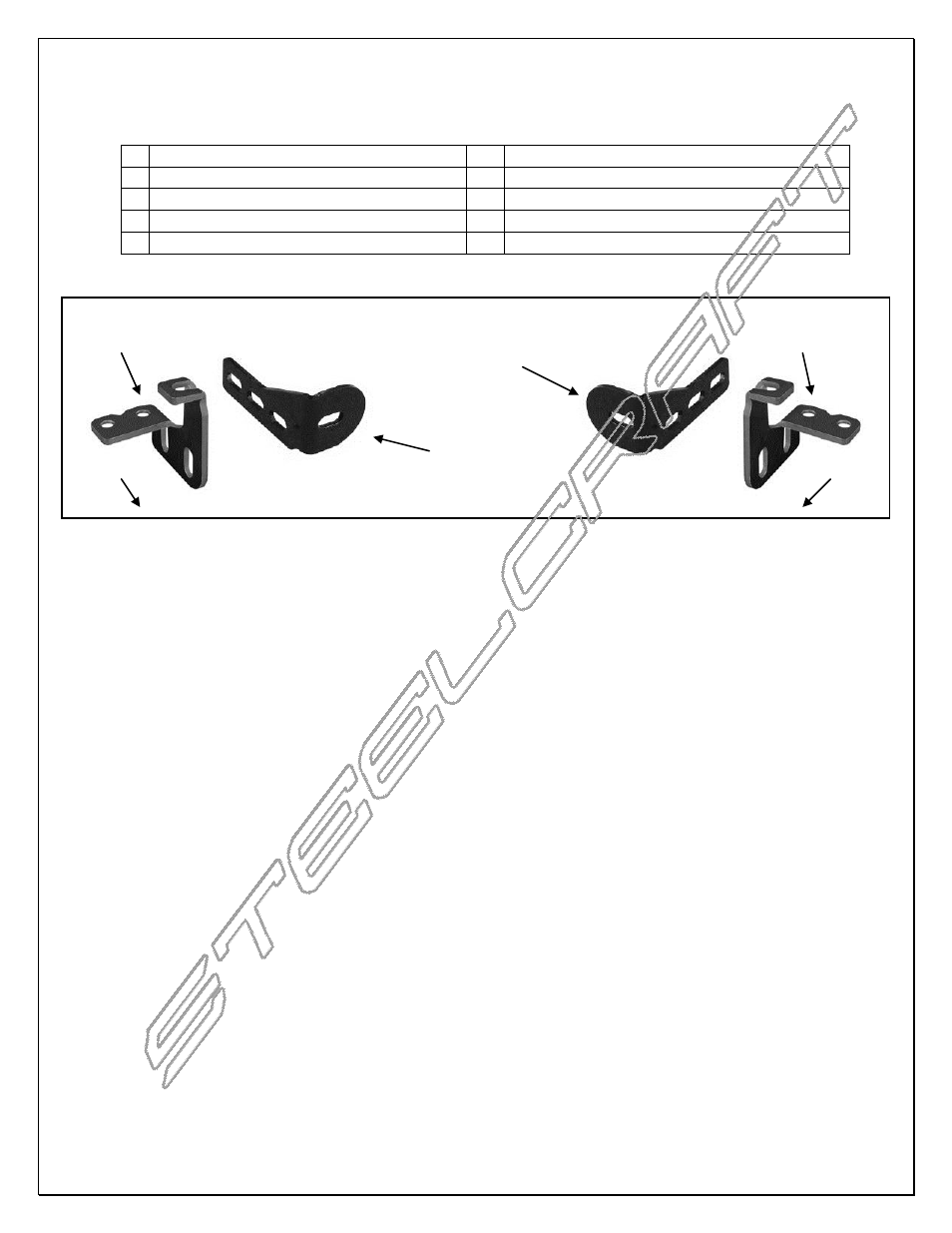

Driver/Left
Mounting Bracket
Passenger/Right
Mounting Bracket
Driver/Left
Mounting Bracket Passenger /Right Frame
Mounting Bracket
Front Front
