Steelcraft Automotive 72320 BULL BAR User Manual
Page 3
3” BULL BAR
2011 JEEP GRAND CHEROKEE
Page 3 of 3
12/17/10 (DP)

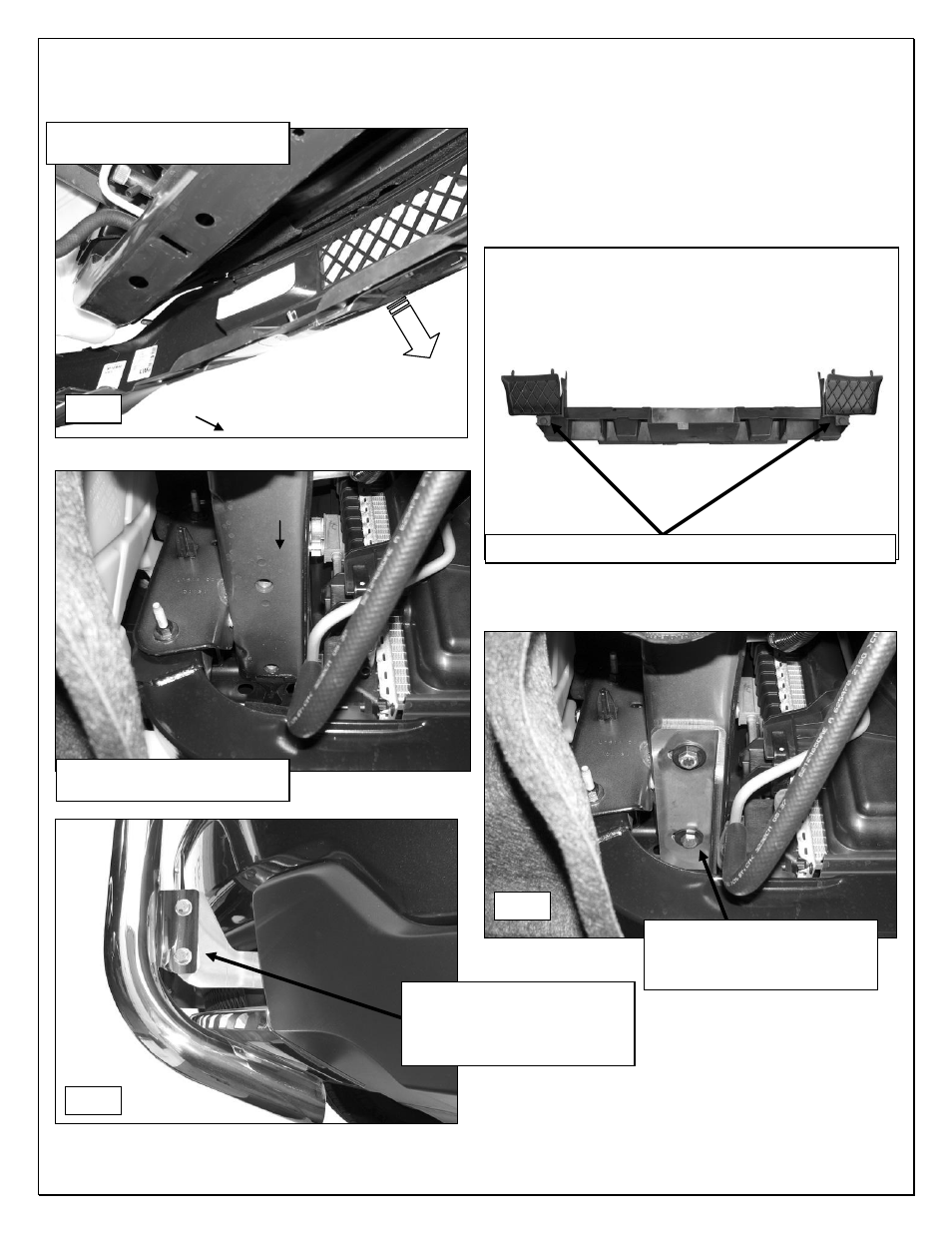

Driver Side Installation Pictured
Fig 5
(Fig 6) Release the clips to remove both air block offs
(Fig 7) Driver side mounting
location pictured from below
Front
Front
Fig 8
(2) 10mm x 35mm Hex Bolts
(2) 10mm Flat Washers
(2) 10mm Lock Washers
Carefully pull bumper cover
forward to remove air deflector
Fig 9
(2) 10mm x 35mm Hex Bolts
(4) 10mm Flat Washers
(2) 10mm Lock Washers
(2) 10mm Hex Nuts
