Steelcraft Automotive 73290 BULL BAR - Manual

BULL BAR
2011 TOYOTA HIGHLANDER
Page 1 of 6 4/27/11 (DP)
PARTS LIST:
1 Bull Bar 1 12mm x 37mm OD x 3mm Flat Washer
1 Driver/Left Mounting Bracket 10 12mm x 32mm OD x 3mm Flat Washers
1 Passenger/Right Mounting Bracket 2 12mm Lock Washers
1 Driver/Left Support Bracket 4 12mm Nylon Lock Nuts
1 Passenger/Right Support Bracket 2 10-1.25mm x 35mm Hex Bolts
2 12-1.75mm x 90mm Bolt Plates 2 10mm x 27mm OD x 3mm Flat Washers
1 12-1.75mm x 90mm Hex Bolt 2 10mm Lock Washers
2 12-1.75mm x 35mm Hex Bolts 4 8mm x 24mm OD x 2mm Flat Washers
2 12-1.75mm x 30mm Hex Bolts
PROCEDURE:
1. REMOVE CONTENTS FROM BOX. VERIFY ALL PARTS ARE PRESENT. READ
INSTRUCTIONS CAREFULLY BEFORE STARTING INSTALLATION. ASSISTANCE
RECOMMENDED. CUTTING IS REQUIRED.
2. Remove the front plastic splash guard from under the front bumper and place it on a clean,
stable work area.
3. Locate the factory vibration dampener on top of the cross member. The vibration dampener
covers a mounting location for a Support Bracket. NOTE: The vibration dampener is typically
located on the passenger side for hybrid models, (Figure 1), and on the driver side for gas
models, (Figure 2). Temporarily remove the dampener from the top of crossmember.
IMPORTANT: Pay close attention to how the dampener is mounted to the crossmember as it
will be reinstalled.
4. Remove the plastic plugs covering the holes through the crossmember on the driver and
passenger side, (Figure 3).
Gas Models (non Hybrid)
a. Driver Side Bolt Plate Installation: Insert (1) 12mm x 90mm Bolt Plate down through
the crossmember from the top, (Figures 4A & 4B). Re-install the suspension dampener
over the Bolt Plate using the factory hardware. NOTE: Use the included 8mm Flat
Washers on the factory hex bolts for spacers between the dampener and the
crossmember as required for proper Bolt Plate clearance, (Figure 5). Rotate the lock
tab on the Bolt Plate for proper fit between the crossmember and dampener.

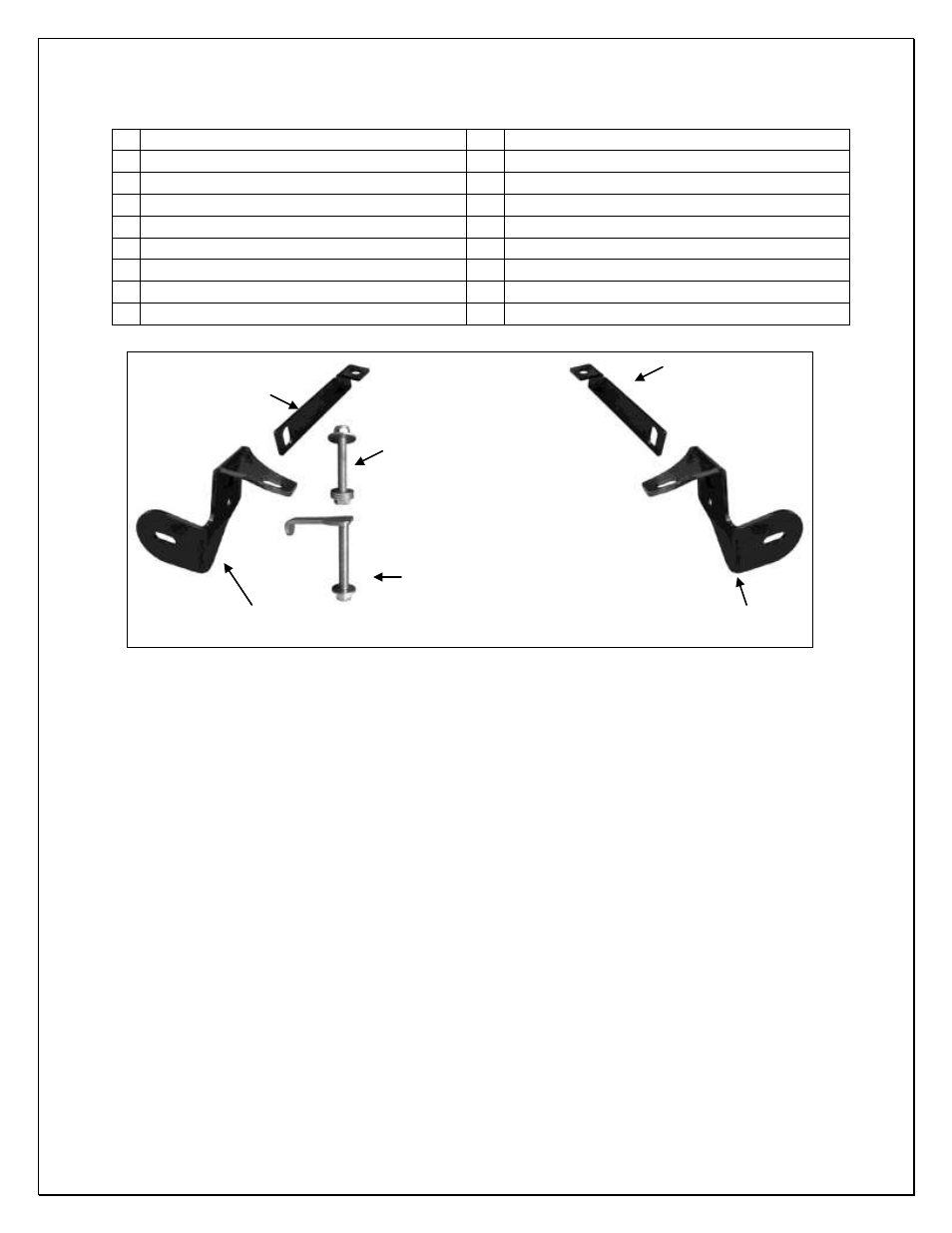

Passenger/Right Side
Support Bracket
Passenger/Right Side
Mounting Bracket Driver/Left Side
Mounting Bracket
Driver/Left Side
Support Bracket
12mm x 90mm Hex Bolt
12mm x 37mm OD Large
Flat Washer (top)
(3) 12mm x 32mm OD STD
Flat Washer (bottom)
12mm Nylon Lock Nut
(use for 4cyl w/AC
passenger side only)
12mm x 90mm Bolt Plate
12mm x 32mm OD STD Flat Washer
(bottom)
12mm Nylon Lock Nut
