Steelcraft Automotive 56040 GRILL GUARD User Manual
Page 3
GRILLE GUARD
2000-2004 MITSUBISHI MONTERO SPORT
Page 3 of 4 12-11-12 Rev1 (DP)

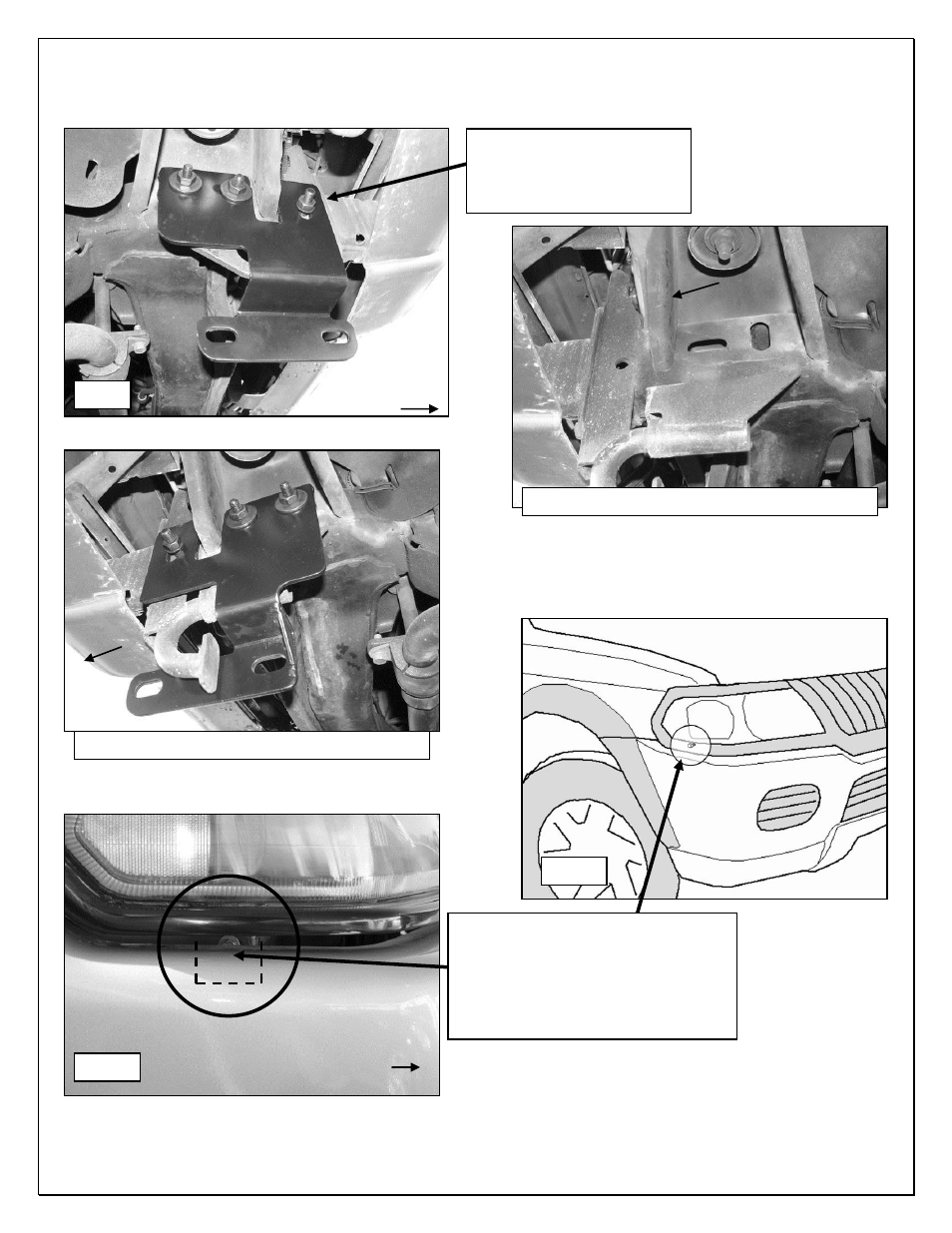

Passenger Side Installation Pictured
Fig 7A
Fig 4
(Fig 5) Driver side pictured from under vehicle
Front
Front
Front
Locate 6mm hex bolt behind/below
side of headlight assembly. Hex bolt
is visible between top of bumper and
bottom of headlight assembly. Use
masking tape to protect the finish
during Bracket installation
Front
10mm x 100mm Hex Bolt
(2) 10mm STD Flat Washers
10mm Lock Washer
10mm Hex Nut
(Fig 6) Driver side pictured from under vehicle
Fig 7B
