Steelcraft Automotive 54070 GRILL GUARD - Manual (Page 5)

GRILLE GUARD
04-12 NISSAN TITAN INCLUDES PRO 4-X / 04-11 ARMADA
Page 5 of 5 5/1/12 Rev 2(DP)
Titan & 04-07 Armada. Use Factory
Hex Bolts to install Top Bracket
Line bottom of Bracket
with foam tape
undebracket
Titan & 04-07 Armada pictured without
grille for photo purposes only. Reinstall
grille before attaching Grille Guard
(2) 12mm x 35mm Hex Bolts
(4) 12mm Flat Washers
(2) 12mm Nylon Lock Nuts

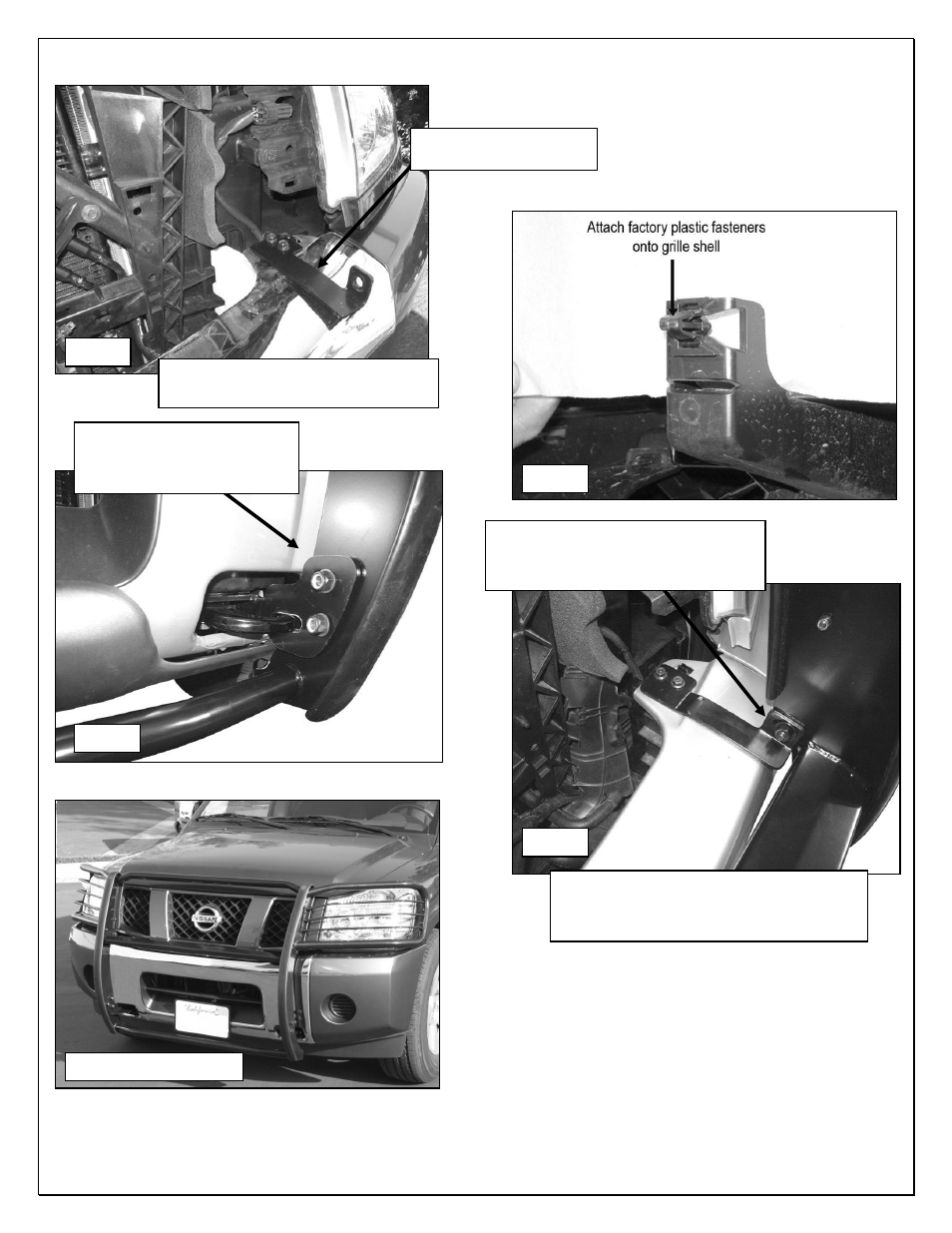

Fig 10
Fig 11
Fig 12
Installation Complete
Fig 13
10mm x 25mm Button Head Bolt
(2) 10mm Flat Washers
10mm Nylon Lock Nut
