Steelcraft Automotive 53360 GRILL GUARD - Manual (Page 4)

GRILLE GUARD
2010 TOYOTA 4RUNNER
Page 4 of 4 4-23-10 (DP)

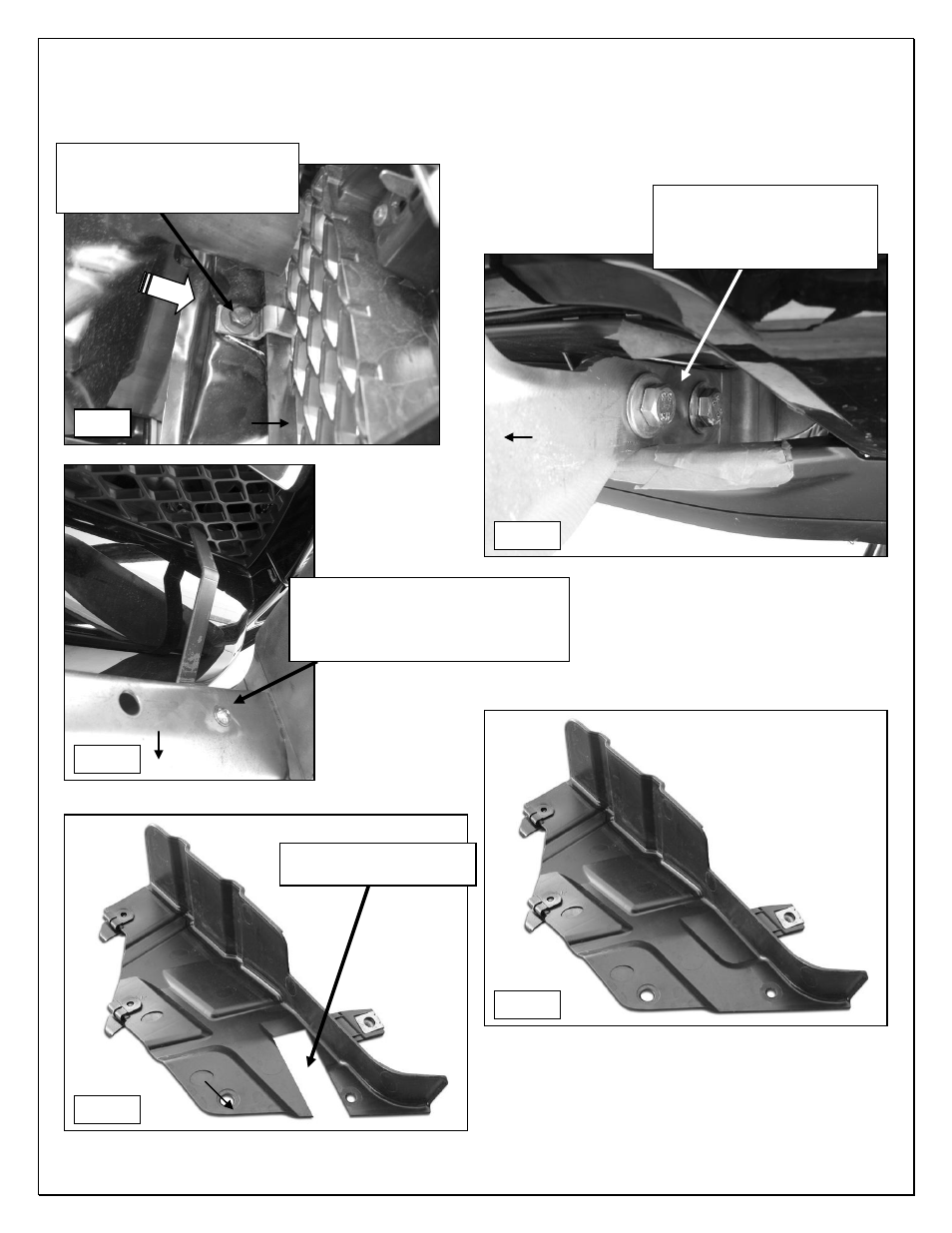

Driver Side Installation Pictured
Cut out area illustrated
as an example only
Fig 13
Fig 12
Fig 10
Fig 9
8mm x 30mm Button Head Bolt
8mm x 16mm Flat Washer (top)
8mm x 24mm Flat Washer (bottom)
8mm Nylon Lock Nut
8mm x 30mm Hex Bolt
(2) 8mm x 24mm Flat Washers
8mm Nylon Lock Nut
Fig 11
(2) 12mm x 30mm Hex Bolts
(4) 12mm Flat Washers
(2) 12mm Lock Washers
(2) 12mm Hex Nuts
Front
Front
Front
Front
