GRILLE GUARD

07-11 SPRINTER VAN

Page 5 of 6

6/6/11 Rev2 (DP)

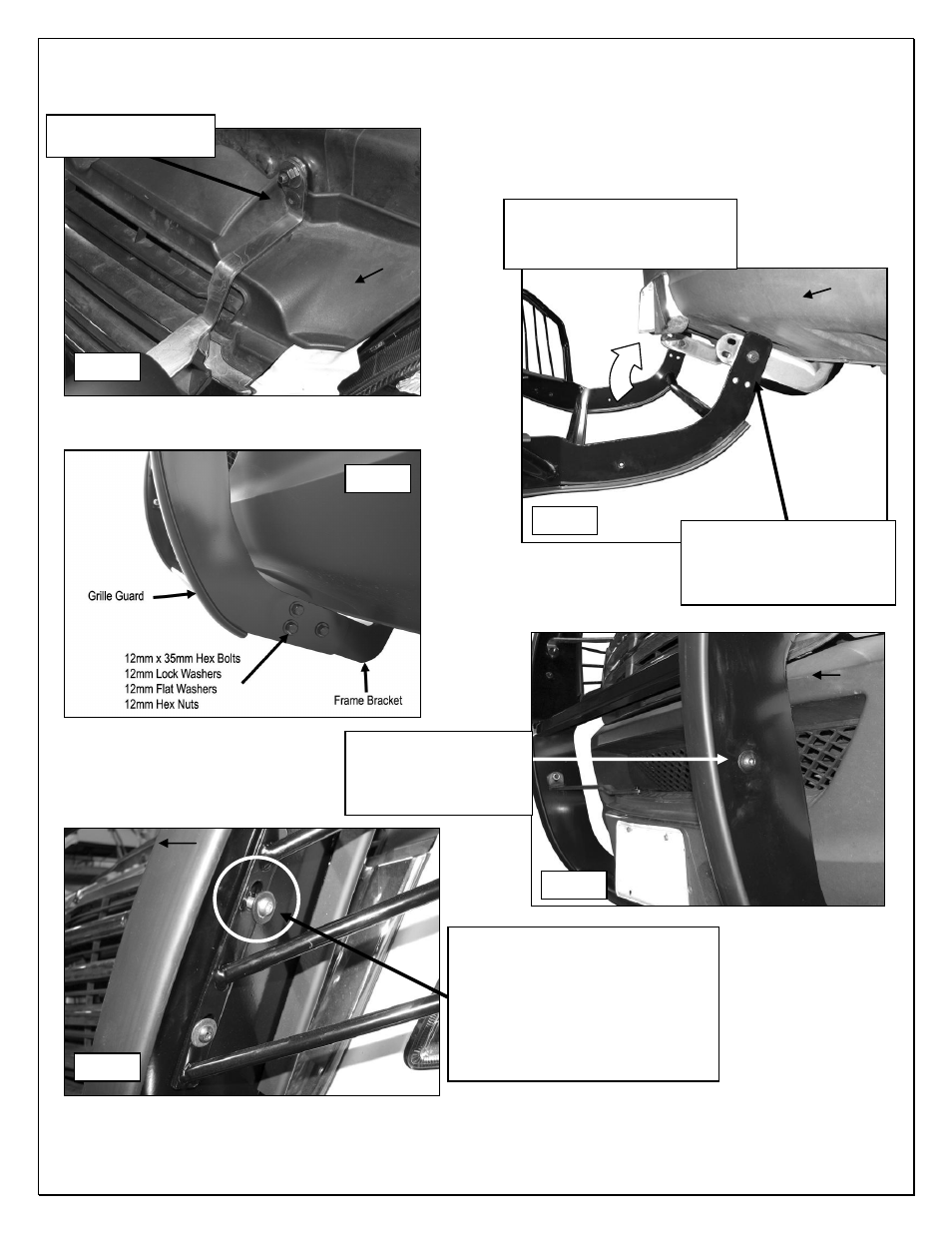

Driver Side Installation Pictured











































Tilt the Grille Guard up into
position then install the
remaining (4) mounting bolts.

Replace top button head bolt with:
6mm x 25mm Button Head Bolt
6mm x 22mm x 2mm Large Flat
Washer (against Top Bracket)

Reuse the following hardware:
6mm STD Flat Washer
6mm Nylon Lock Nut

Front

Fig 14

Fig 13

Front

Fig 12

Reinstall the factory
button head screw

Fig 16

Fig 15

(1) 12mm x 35mm Hex Bolt
(2) 12mm Flat Washers
(1) 12mm Lock Washer
(1) 12mm Hex Nut

10mm x 25mm Button
Head Bolt
(2) 10mm Flat Washers
10mm Nylon Lock Nut

Front

Front
