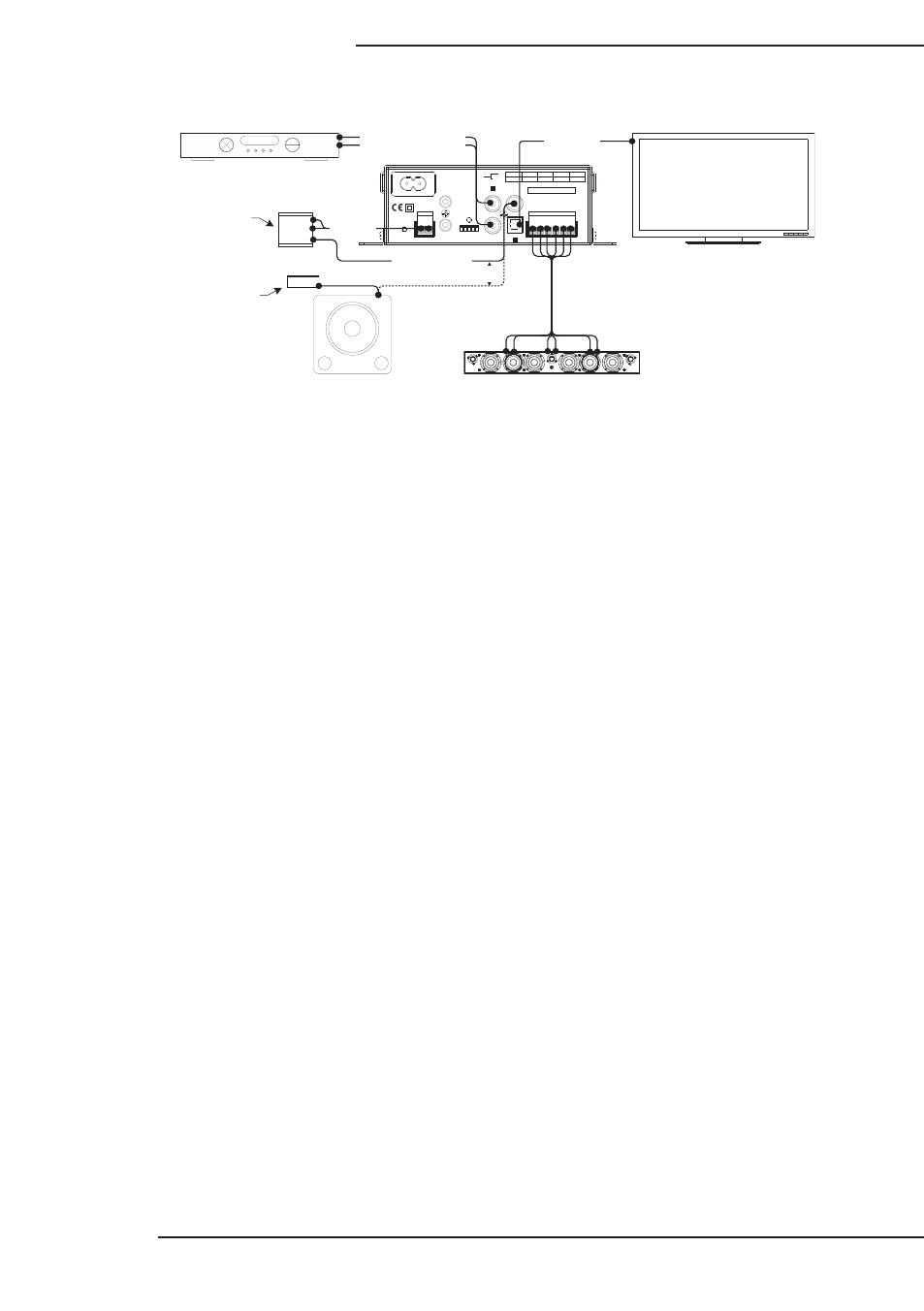

7. Installation
Note: To avoid confusion, IR connections have been omitted in this diagram. See pages 12-14 for complete
details and instructions for IR connections and setup.
Important: DO NOT plug in or power the EA-MINI-XD-35 until it is indicated to do so.
1. Plan and prepare the amplifier location. (Page 9)
2. Install and set up the speakers and powered subwoofer (optional). (Page 10)
3. Connect the sources to the inputs. (Page 11)
4. Install and set up the IR receiver or cabling to the amplifier and other equipment. (Page 12)
5. Set up the amplifier control method. (Pages 11-14, Control Protocol)
6. Plug in all equipment and power on the system. Set up sources and audio equalization as needed.
(Page 15)
7. Mount the amplifier in its final location after testing the system. Installation is complete!
Troubleshoot any issues using the Troubleshooting section if needed. (Page 16)
