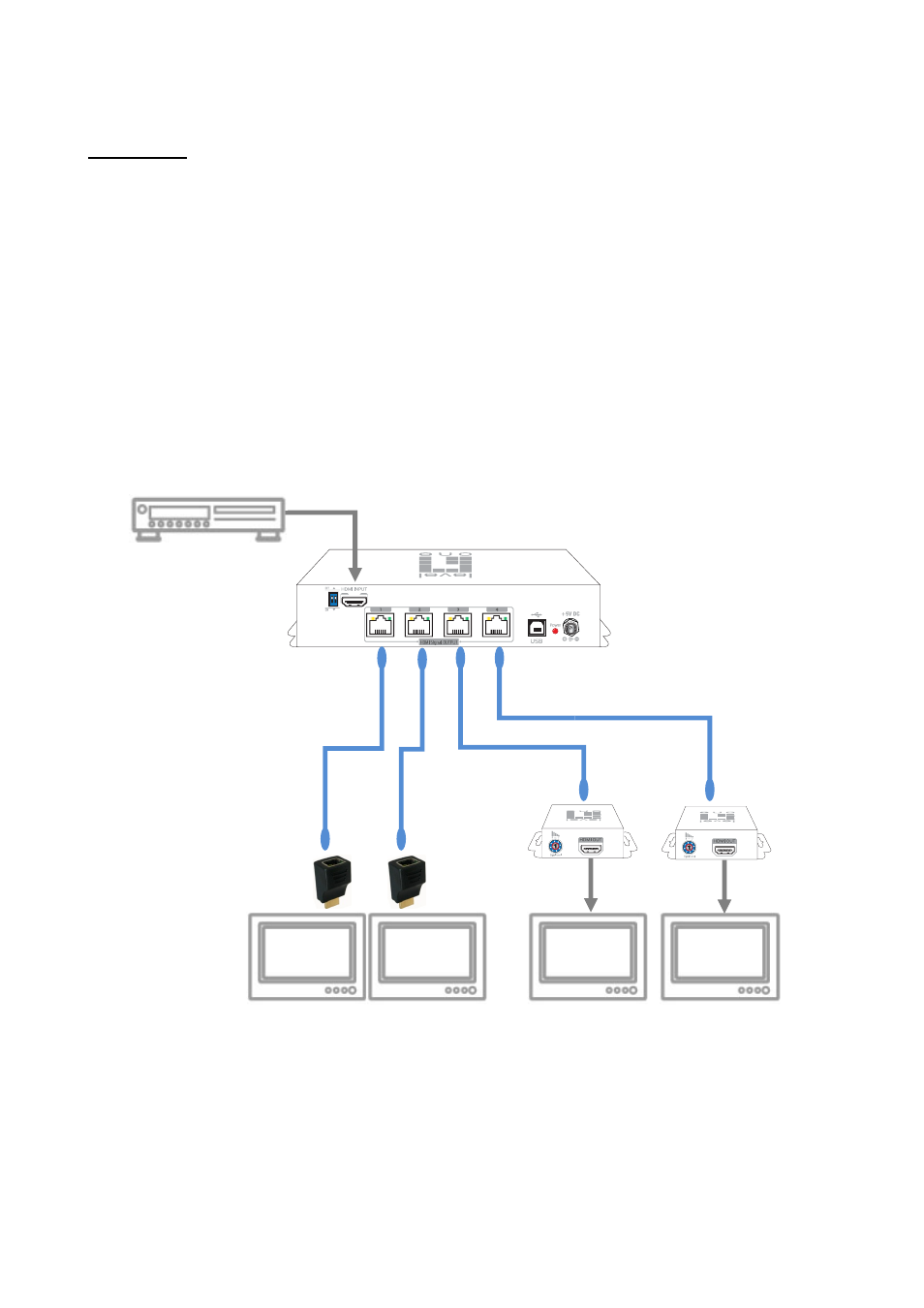

Broadcasts HDMI signals to 4 remote displays from one video source
HVE-9004
1. Switch off all devices, including displays.
2. Connect a HDMI source device to the HDMI INPUT port.
3. Connect the HVE-9000 and/or HVE-9900 as receivers via solid Cat.5e/6 cables
to each HDMI Signal OUTPUT port.
4. Plug in the interlocking 5V 4A DC power supply unit.
5. Power on the HDMI displays.
6. Power on the HDMI sources.
HVE-9900
Cat.5e/6 cable
up to 25m (80ft)
HDMI cable
HDMI source
HDTV#1
Cat.5e/6 cable up to 60m (200ft)
HDMI cable
HDTV#4
HDTV#3
HDTV#2
HVE-9004
HVE-9000
