MX28B-400 +24V Product Manual
990-9218
13

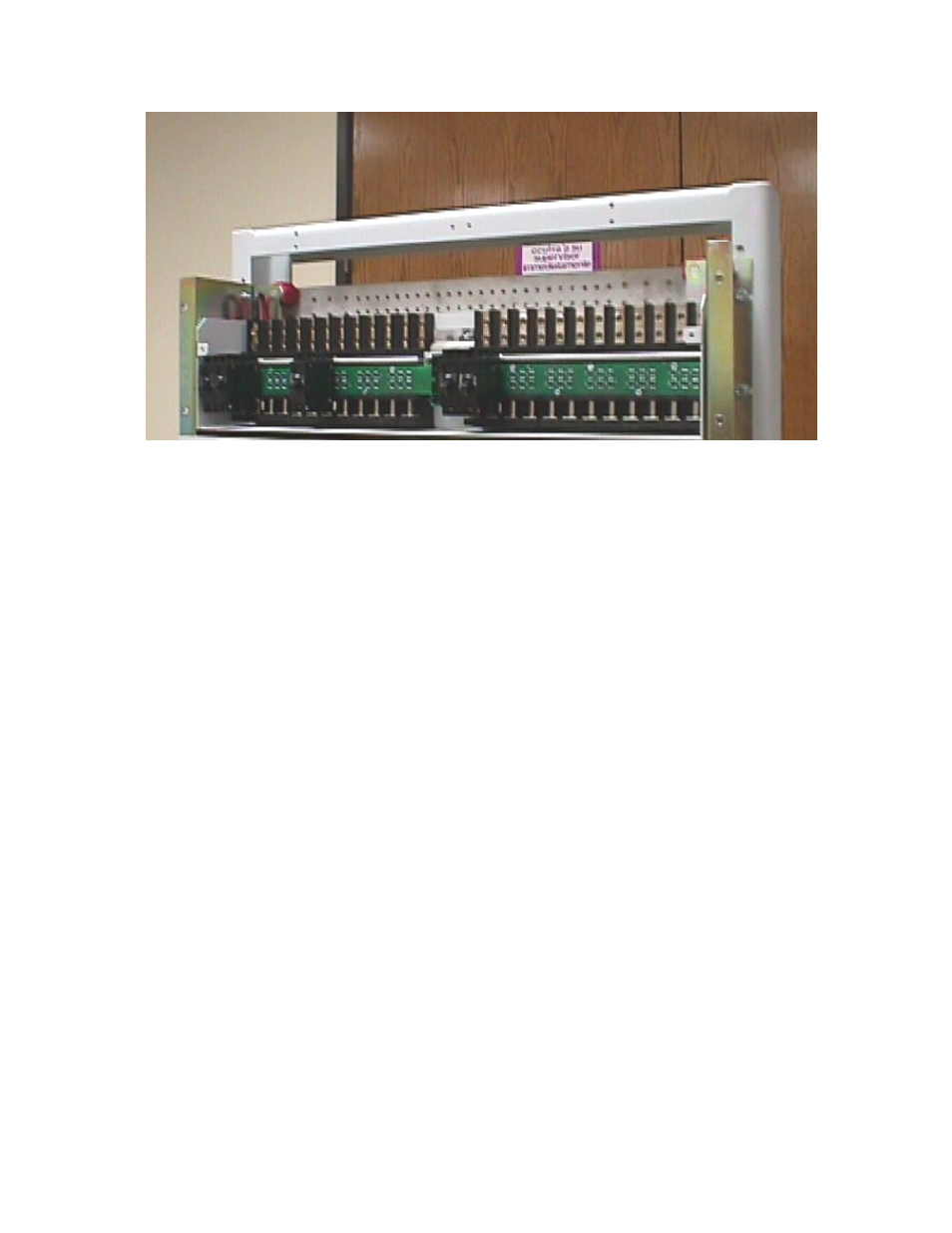

Figure 4.7-1. DC Distribution (Front Cover Removed)
4.8 Mounting
Both front mounting on standard 2-inch rails and optional wall mounting are available.
4.9 Environmental
•
= Ambient Temperature: -40°C to +65°C operating
-40°C to +85°C storage
•
= Humidity: 0% to 85% RH non-condensing operating
0% to 95% RH non-condensing storage
•
= Altitude: Up to 3000m, operating
Up to 10,000m, storage
4.10 Mechanical
•
= Dimensions: 15.75” high x 23” wide x 17.5” deep (400 amp unit)
•
= Weight: Housing - 85 lbs. (400A)
Rectifier - 11 lbs.
•
= Color: Dawn Gray (fronts)
4.11 Compliance
•
= UL 1950
•
= Bellcore GR-63-CORE Sections 4.1.3 Altitude; 4.2 Shelf Level Fire Resistance; 4.3 Use
of Fire Resistant Materials; 4.5 Airborne Contaminants; 4.6 Acoustic Noise.
•
= FCC Part 15, Class A (Pending)
