41

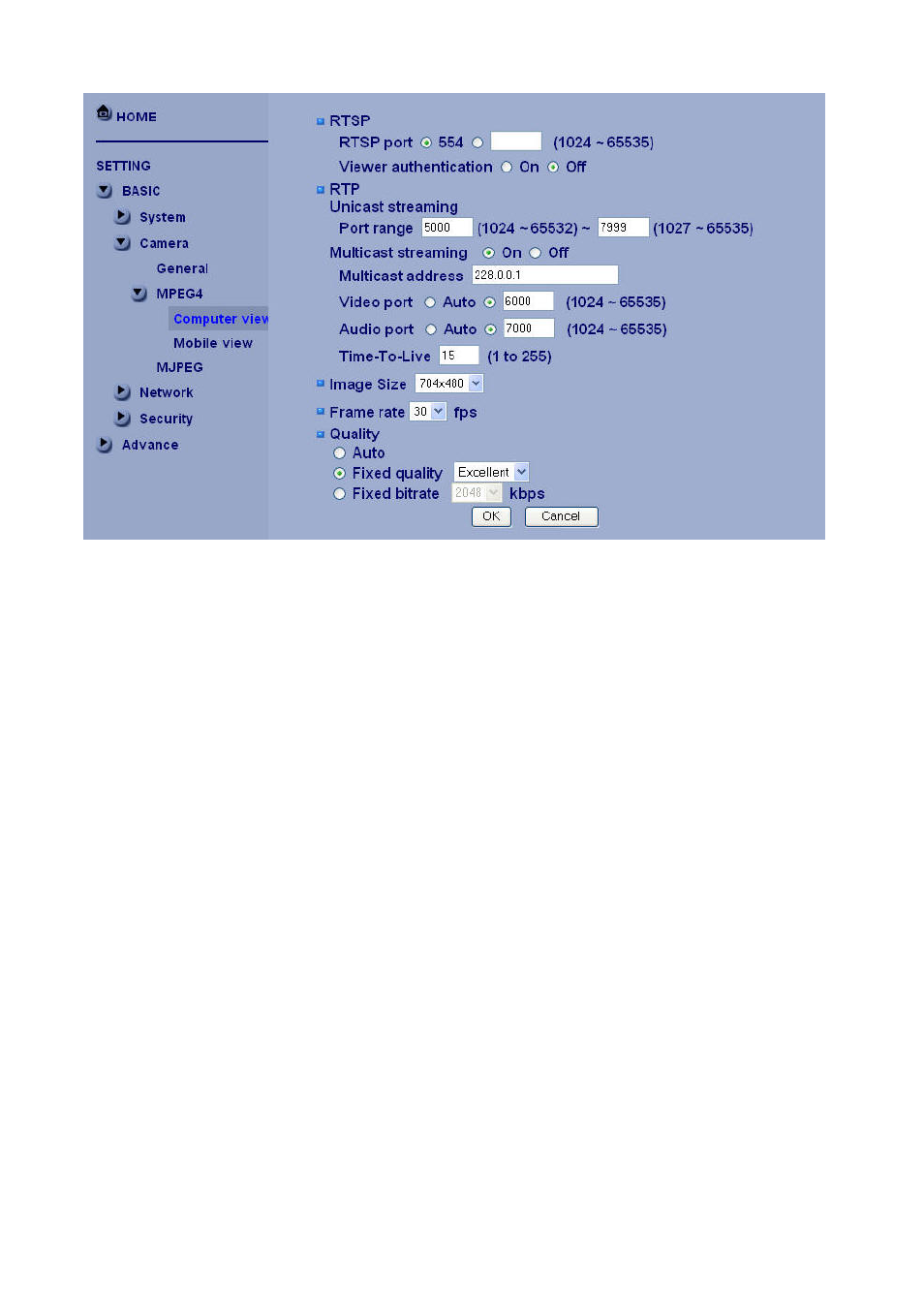

RTSP (If RTSP mode is ON)
RTSP port: Specify the transmission port number of RTSP streaming video. Default value is
554.
Viewer authentication: If the viewer authentication is ON, users viewing through RTSP will be
requested to key-in username and password.
RTP (If RTSP mode is ON)
Unicast streaming:
Unicast streaming Video/Audio port range: Specify the transmission port range of RTP
streaming video. RTP will select a port randomly from the range.
Multicast streaming:
Multicast address: Specify the multicast server address.
Video / Audio Port: Specify the transmission port number of the video data. Specify an even
number from 1024 to 65534.
Time-To-Live: Set the maximum TTL that multicast can pass through.
MPEG4 viewer port (If RTSP mode is OFF)
Unicast streaming Video/Audio port number : Specify the transmission port number of the
video data. It is initially set to 8090. Specify an even number from 1024 to 65534.
Image Size：Specify the image size the network camera transmits. You can choose among
704 Ч 480, 352 Ч 240 and 176 × 120 for NTSC mode and 704 Ч 576, 352 Ч 288 and 176 ×
144 for PAL mode.
