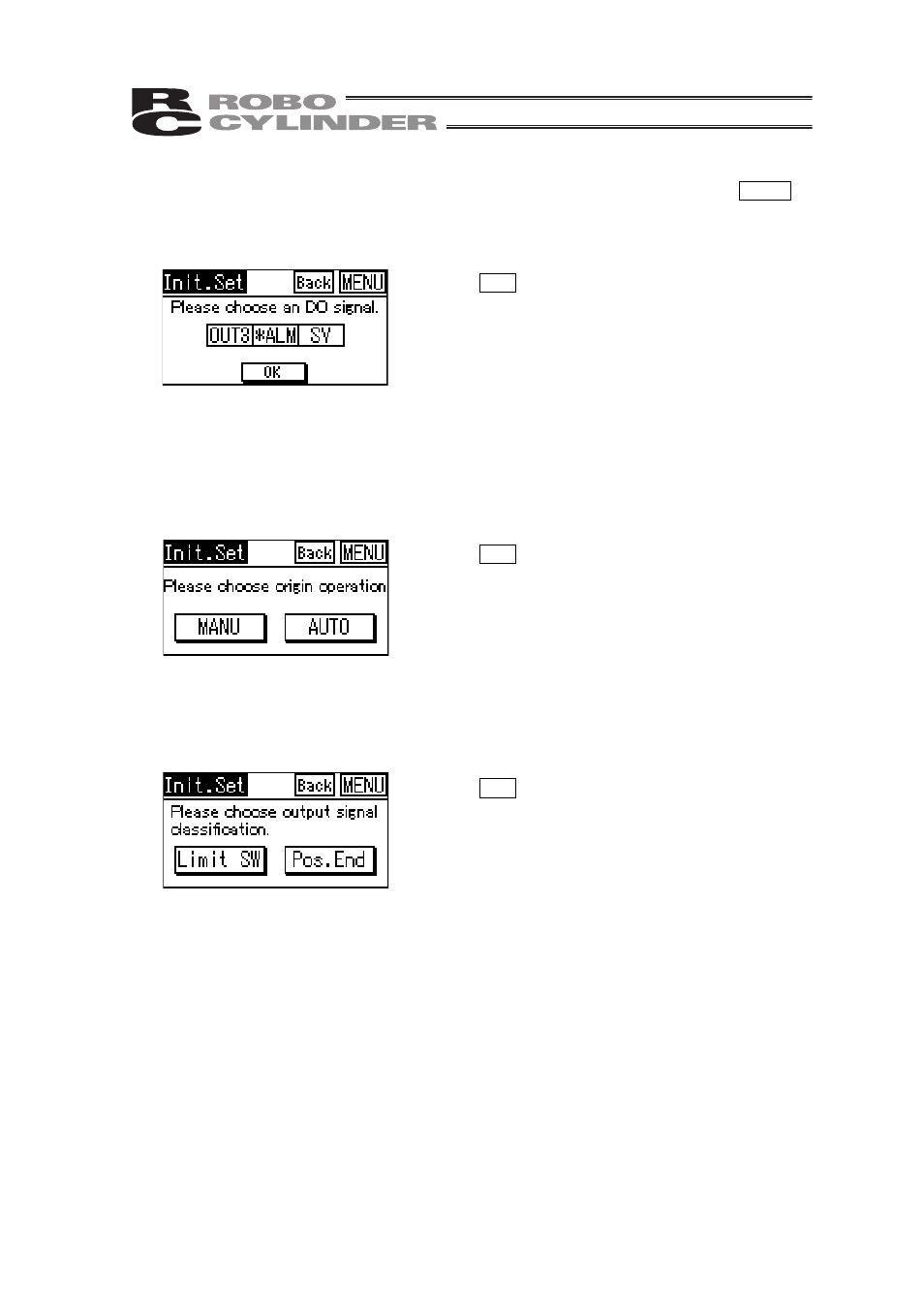

[Output Signal Selection Operation Pattern 3, 4]
When the Operation Pattern is set to “3” or “4”, set the OUT3 output signal after the Control is
selected.
Select either of
ALM (Alarm Status Signal) or SV (Servo-Motor ON Status Signal).
Selecting Back returns to the preceding window.
[Home Return Operation]
Select the home return operation system.
x AUTO : The home return operation is started when the power is input.
x MANU : The home return operation is started when the first STO signal is input after the
power is input.
Selecting Back returns to the preceding window.
[Output Signal]
The actuator is moved and the output signal to be issued after the positioning is completed, is
selected.
Select Limit Switch (LS) or Positioning (PE).
Selecting Back returns to the preceding window.
