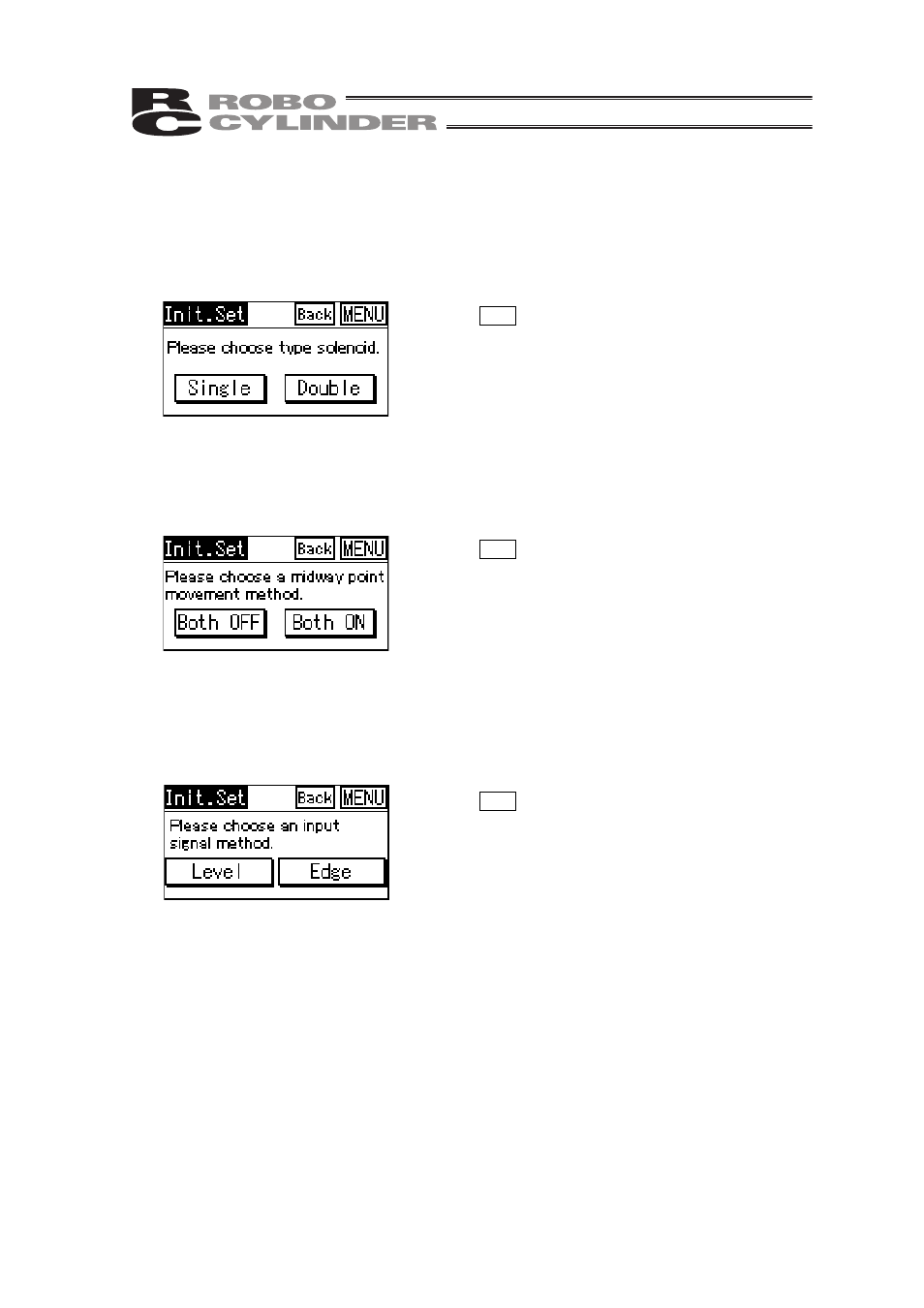

[1] Types of I/O Setup (Setting of the Operation Parameters, etc.) Window
The windows are displayed one by one for the items to be set with a circle in the “Setting
Items” table (on page 61), in order from the one on the left side.
[Operation Mode]
Select either of the Single Solenoid Operation Mode or Double Solenoid Operation Mode.
Selecting Back returns to the preceding window.
[Intermediate Position Movement System]
When the Operation Pattern 3 is set, select whether if the intermediate position is moved with
both of ST0 and ST1 signals turned OFF or ON.
Selecting Back returns to the preceding window.
[Double Solenoid Type]
When the Double Solenoid Type is set for the Operation Mode and the Operation Pattern 4 is
set, select the input signal type for tuning ON the double solenoid, from Continuous Operation
Type (Level) or Momentary Operation Type (Edge).
Selecting Back returns to the preceding window.
