6
BMS
APPLIANCE X
X5 X5
B
A
G
REMOVE JUMPER
(J1) FROM THIS
ADAPTER ONLY!
MODBUS ADAPTER
APPLIANCE 1
X5

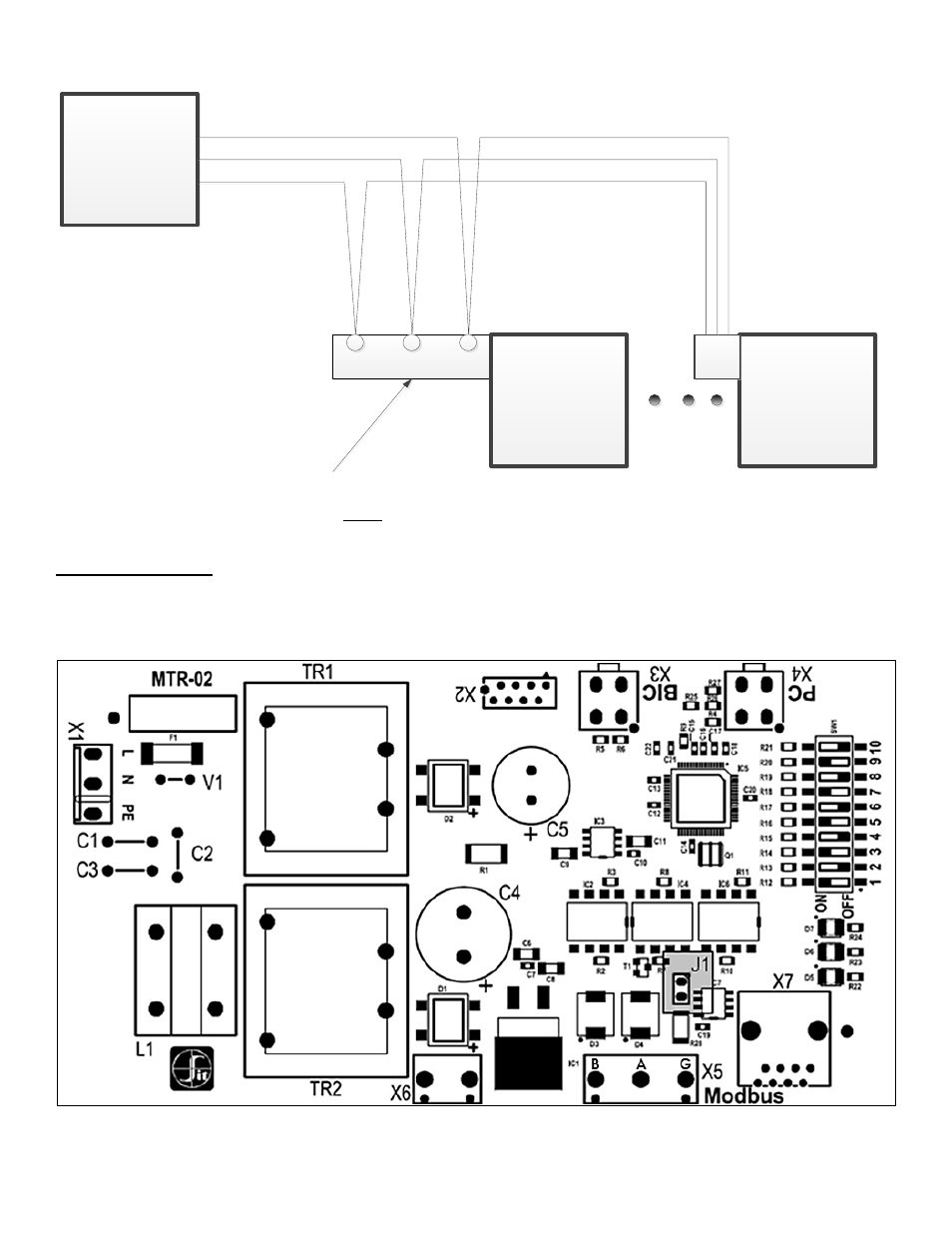

Figure 2 – Jumper Configurations in a Modbus Network
B. JUMPER SETTING
The appliance display handles most of the Modbus adapter configuration. There is one jumper on the Modbus adapter. When this
jumper is in place (factory default) it connects a termination resistor across the data lines of the RS-485 connection. Leave the jumper
in if the Modbus adapter is at the end of the RS-485 bus. Remove the jumper if the Modbus adapter is one of many connections and
not at the end of the bus. See Figures 2 and 3.
Figure 3 – Modbus Termination Jumper Location (Highlighted in Grey)
