Table 2-6 Manipulator Model Speeds, ft/min at 90 psi*
Capacity
(lbs.)
Product Code
UP DOWN
Full Load No Load Full Load No Load
250 AH250M 41 (32) 54 (47) 47 (44) 42 (37)
500 AH500M 29 (18) 54 (47) 53 (50) 42 (37)
Table 2-7 Manipulator Model Air Consumption, CFM at 90 psi*
Capacity
(lbs.)
Product Code
UP DOWN
Full Load No Load Full Load No Load
250 AH250M 28 (21) 31 (24) 27 (21) 26 (20)
500 AH500M 26 (19) 31 (24) 28 (22) 26 (20)
* Values in parentheses for air supply at 60 psi.

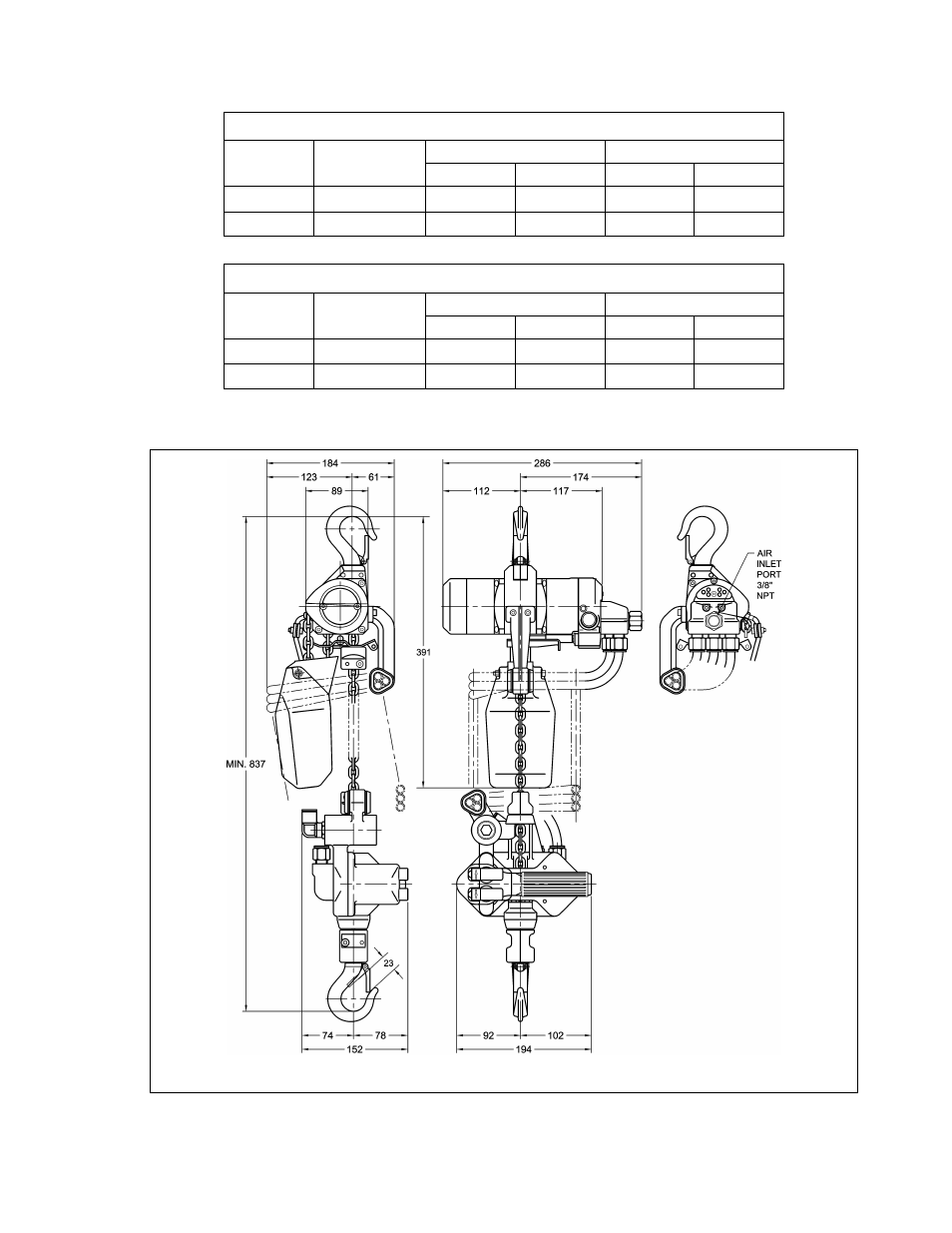

Figure 2-3 Dimensions for Manipulator Model Mini-Cat Air Hoist (inches)
