2.3.2 Hoist

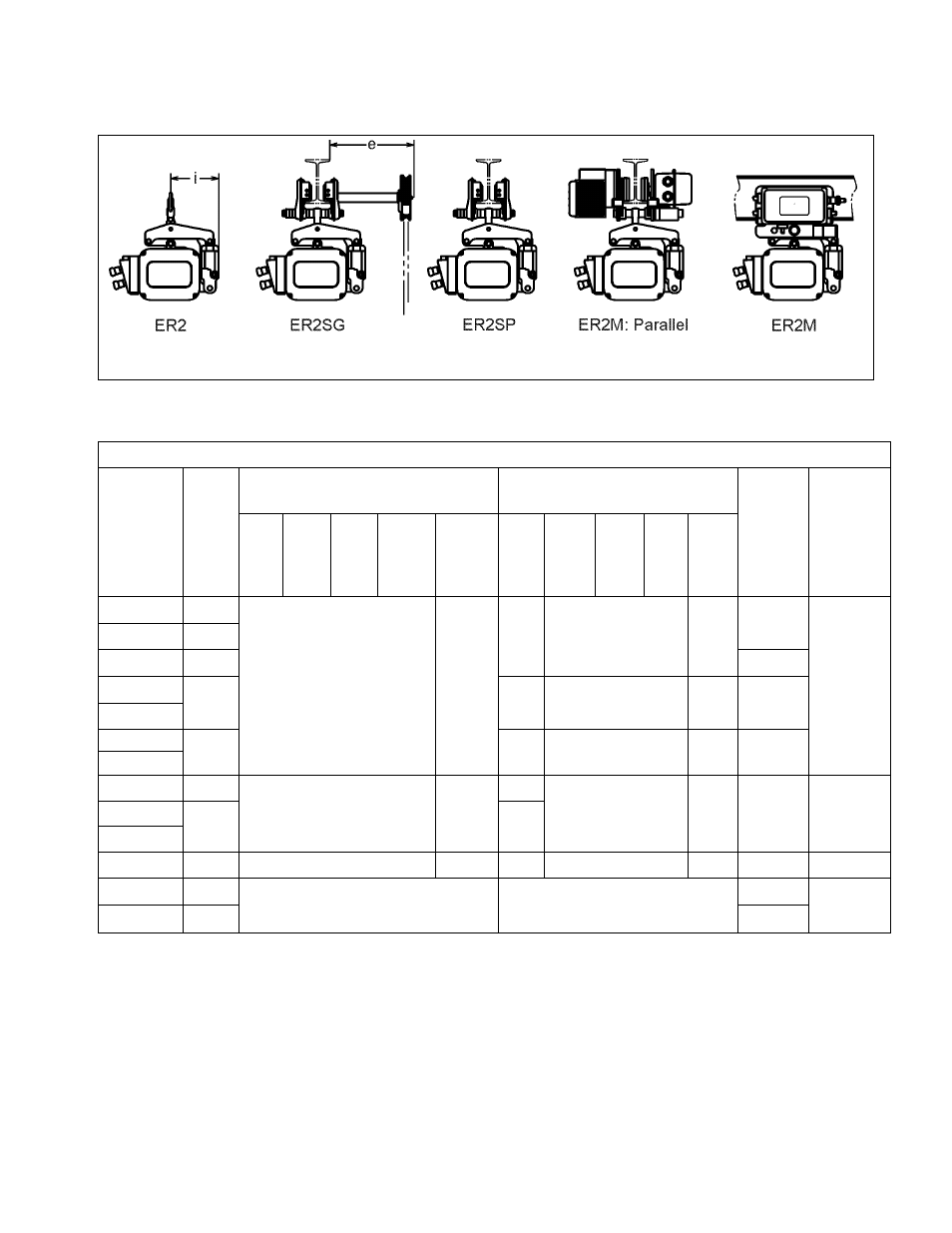

Figure 2-1 Hoist with LL
Table 2-3 Comparison to Standard Model (Without Load Limiter)
Hoist Cap Capacity
(Tons)
Additional Weight*
(lb)
Additional Headroom
(in)
Additional
i
(in)
Additional
e
(in)
ER2 ER2G ER2P
ER2M
Parallel
Susp.
ER2M
Standard
Susp.
ER2 ER2G ER2P
ER2M
Parallel
Susp.
ER2M
Standard
Susp.
001H
1/8
+21.5 +22.5
+4.32 +2.05 +0.68
+3.98
+7.32
003S
1/4
003H
1/4 +3.48
005L
1/2 +4.33 +1.97 +0.98 +3.50
005S
010L
1
+4.13 +2.17 +0.59 +3.03
010S
015S
1 1/2
+31.7 +35.2
+6.50
+3.15 +3.15 +3.05 +9.63 020L
2 +7.09
020S
025S
2 1/2 +29.5 +34.6 +4.13 +0.79 +1.38 +2.85 +9.67
030C
3
+9.8 -
+0.36
-
050L
5
+0.26
* Additional weight is an approximate measurement.
