Harrington Hoists and Cranes (N)ER Load Limiter - ((N)ER2) User Manual
Page 17
17

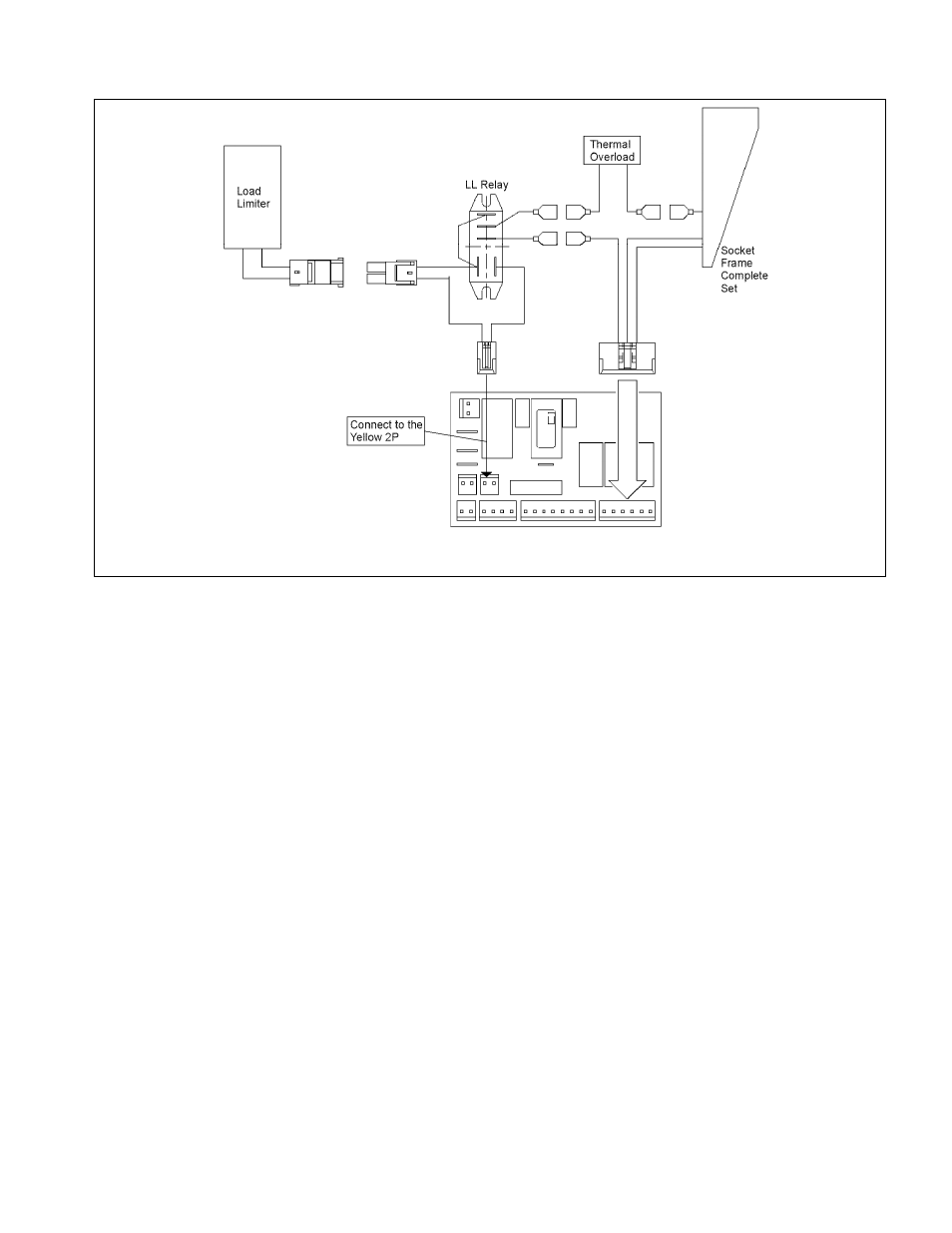

Figure 3-10 LL Relay Electrical Connection (Dual Speed)
3.3 Electrical
Connections
3.3.1
Refer to wiring diagram for ER2/NER2 71023 and 71024, provided here for basic single and dual speed
hoist connections. For other applications, refer to the diagram provided with the hoist or system. Refer to
figure 3-13 for installation of LL wiring diagram.
3.3.2
After confirming all electrical connections are made correctly, reassemble the hoist making sure that wires
are not pinched.
