Harrington Hoists and Cranes (N)ER Load Limiter - ((N)ER2) User Manual
Page 14
14

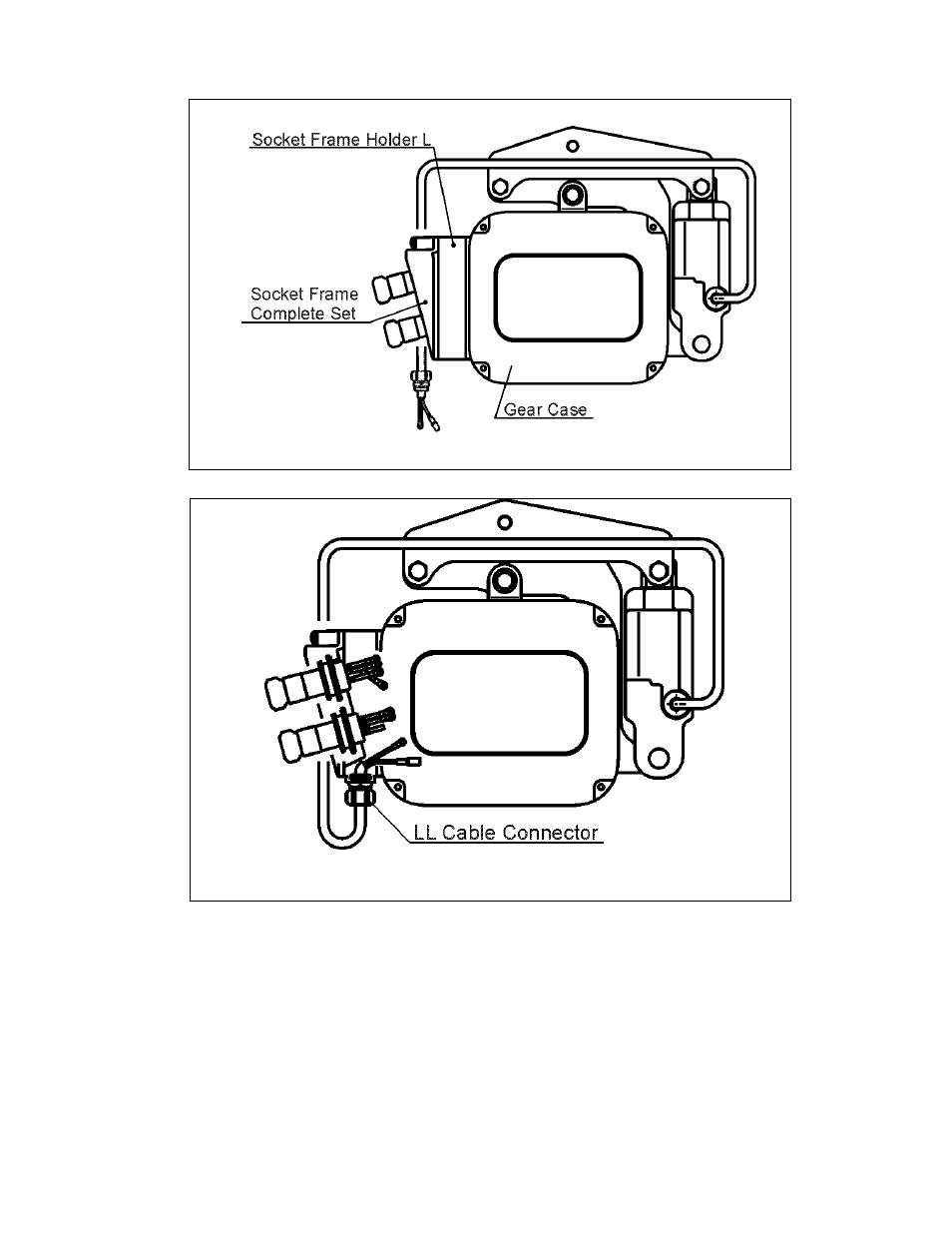

Figure 3-5 Installation of Socket Frame Holder L and Socket Frame Complete Set
Figure 3-6 Installation of LL Cable Connector
3.2.2
Install the Load Limiter Relay as follows:
1) Refer to Figure 3-7 for the location of installation. Be sure to review Figure 3-8 for the correct
orientation of LL Relay.
2) Refer to Figure 3-9 or 3-10 for the electrical connection of LL Relay.
