Harrington Hoists and Cranes (N)ER Load Limiter - ((N)ER2) - Manual (Page 33)

33
*Suspension Type: M = ER2M, H = Hook-Mounted ER2, P = ER2P, G = ER2G, MP = ER2M (Parallel)
†Supplied with the hoist.
5.3 Load Limiter for ER2G
1. ER2G hoists with Load Limiter for 1/8 Ton to 2 1/2 ton use the extended hand wheel trolley that has the special
Frame G complete set.
2. Load Limiter-equipped ER2G hoists for 3 and 5 Ton use the standard GT.

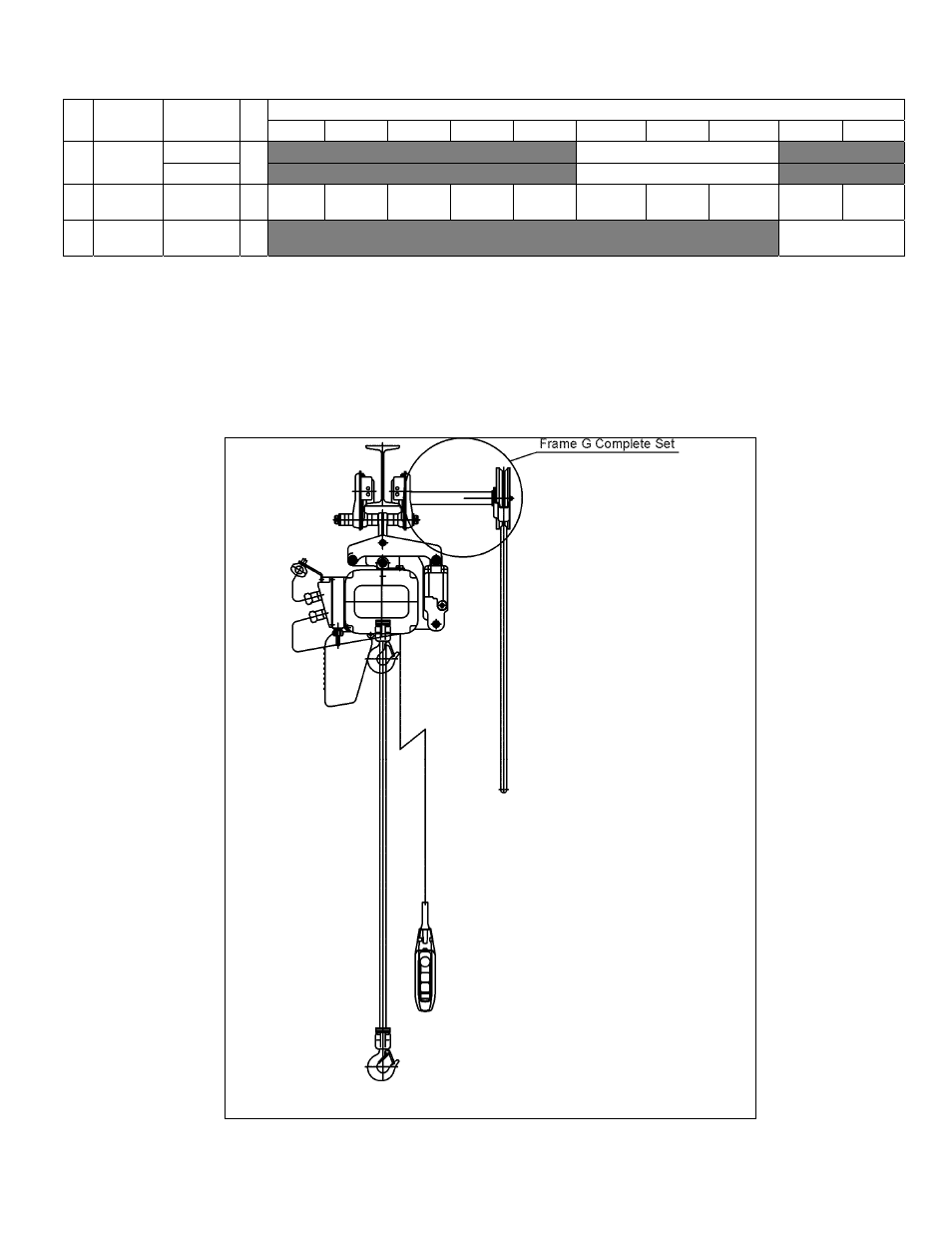

Figure 5-10 Frame G Complete Set for Capacities Up to 2 1/2 Ton
Fig.
No.
Part Name
Suspension
Type*
Qty
Hoist Capacity
001H 003S 003H 005L/005S 010L/010S 015S 020L/020S 025S 030C 050L
23
Connection
Yoke Bolt B M
1
YL1ES9113
H/P/G/MP YL1ES9114
24
Load Limiter
Assembly
M/H/P/G/MP 1
YL2BH12
01
YL2BS120
1
YL2CH120
1
YL2CS120
1
YL2DS120
1
YL2EM1201
YL2ES120
1
YL2FS1201
YL2ER120
1
YL2FR120
1
25
Connection
Yoke D
M/H/P/G/MP 1 †
