10

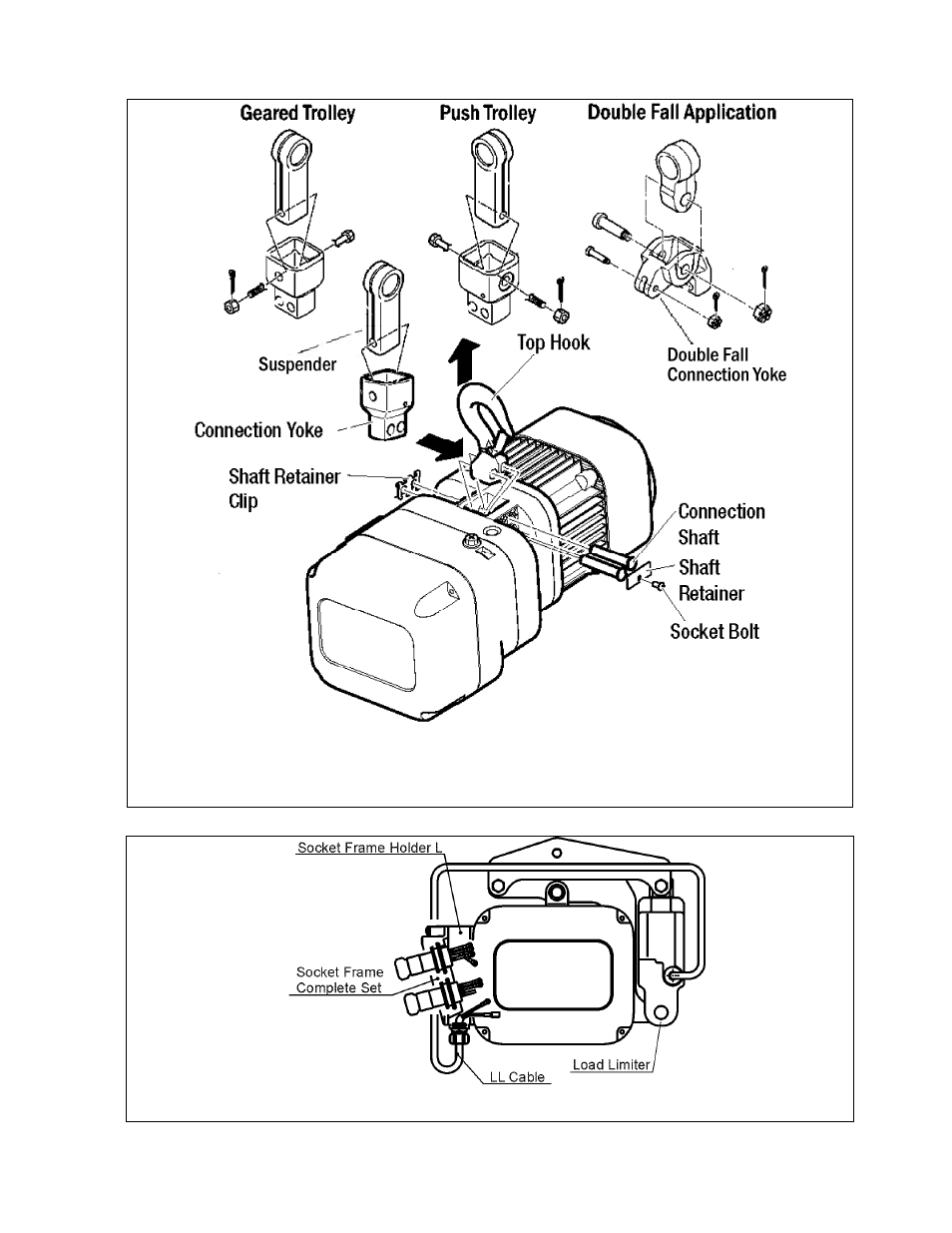

Figure 3-1 Installation of Standard Suspension Assembly for ER2 (1/8 Ton – 3 Ton Except 2 1/2 Ton)

**For installation of the LL, LL Suspension Assembly is used instead of the Standard Suspension Assembly
shown above.**

Figure 3-2 LL Cable Placement
