Page 9

9

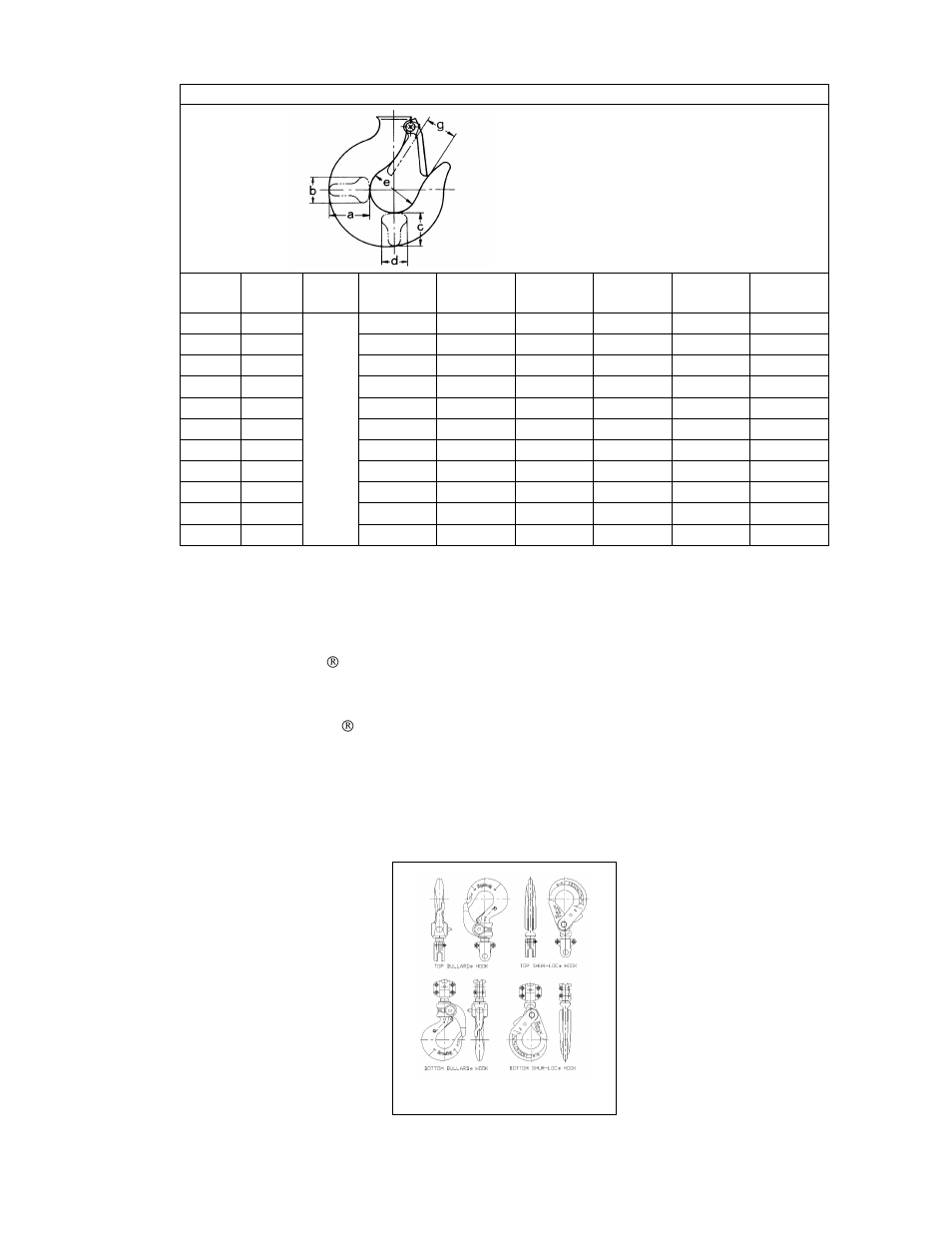

Table 2-3 Hook Dimension*
T = Top Hook
B = Bottom Hook
Units = inch
Cap.
(Tons)
Product
Code
Hook
a
b
c
d
e
g
1/2
CB005
T & B
0.8
0.5
0.7
0.5
1.4
1.1
1
CB010
1.0
0.6
0.9
0.6
1.7
1.1
1½
CB015
1.2
0.8
1.0
0.8
1.9
1.3
2
CB020
1.4
0.9
1.2
0.9
2.0
1.4
2 ½
CB025
1.6
1.0
1.3
1.0
2.1
1.6
3
CB030
1.8
1.1
1.5
1.1
2.2
1.7
5
CB050
2.2
1.4
1.9
1.4
2.5
1.8
8
CB080
3.0
1.9
2.5
1.9
3.3
2.9
10
CB100
3.0
1.9
2.5
1.9
3.3
2.9
15
CB150
3.7
2.4
3.1
2.4
3.9
3.1
20
CB200
4.2
2.6
3.5
2.6
4.3
3.2
*Refer to Section 5.7 for inspection dimensions and limits.
2.3
Optional Equipment
2.3.1
Optional Latch Lock Hooks
The Bullard hook has a conventional hook shape with a special, heavy-duty, rotating, spring-
loaded, locking latch. The latch remains locked until it is released by the operator. Refer to Figure
2-6.
The Shur-Loc hook is a special design hook where the latch remains fixed and the hook swings
to unlock. The hook cannot be opened while a load is applied.
Installation of these hooks may change the headroom.
See Section 9.4, Parts List for a complete Latch Lock Hook part listing.
See Table 6-3 for yoke nut torque specifications.
Figure 2-6 Latch Lock Hooks
