Harrington Hoists and Cranes CB Hand Chain Hoist - Manual (Page 50)

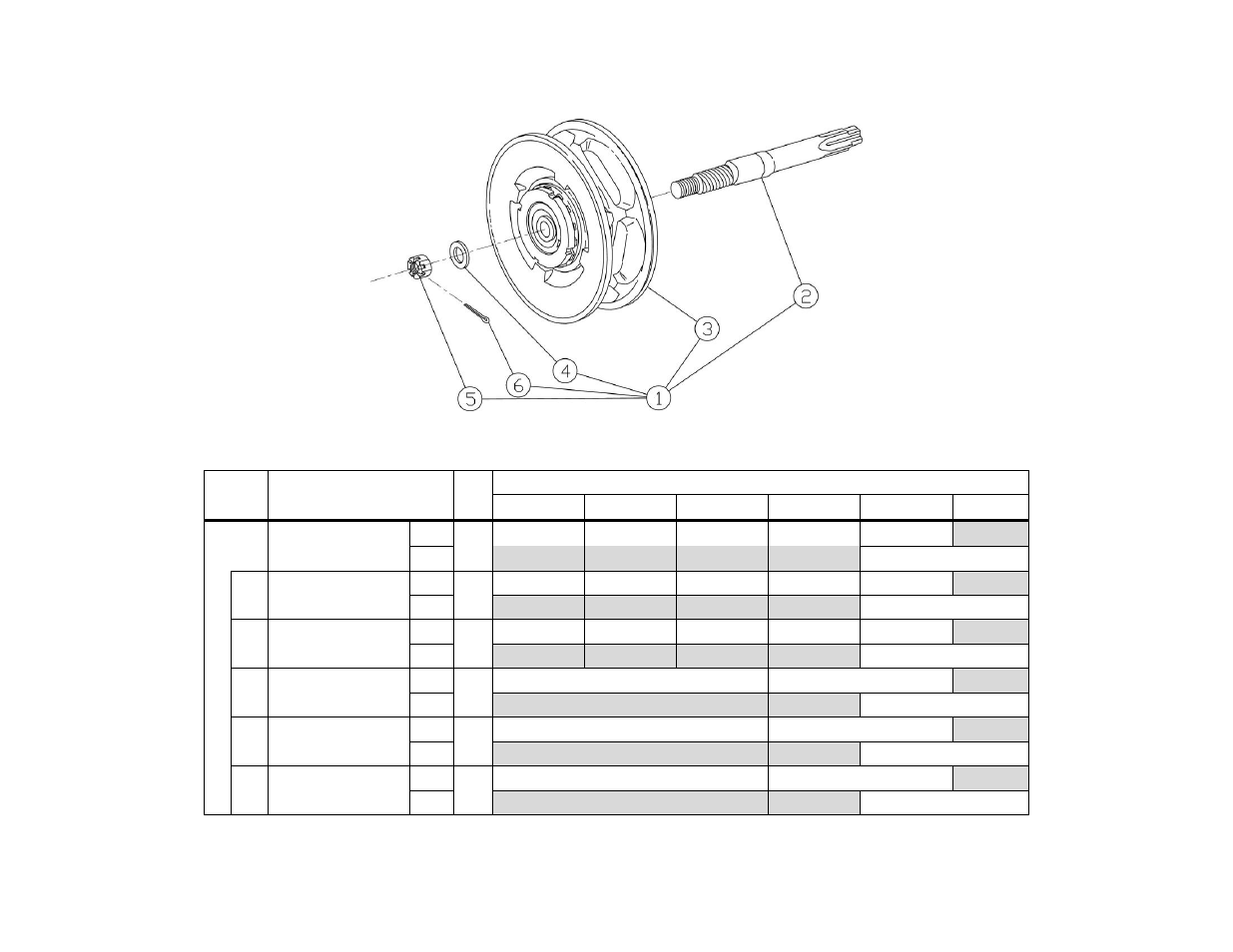

Figure 9-4 Slip Clutch
FIG NO. PART NAME QTY
CAPACITY
1/2 T 1 T 1 1/2 & 3 T 2 T 2 1/2-5 T 8-10-15-20 T*
1 OLL ASSEMBLY
M3
1
M3CB005OD M3CB010OD M3CB015OD M3CB020OD M3CB025OD
M3B M3B025OD
2 PINION
M3
1
C3YA111005 C3YA111010 C3YA111015 C3YA111020 C3YA111025
M3B C3BYA111025
3 HAND WHEEL
M3
1
C3YA1115005 C3YA1115010 C3YA1115015 C3YA1115020 C3YA1115025
M3B C3BYA1115025
4 WASHER
M3
1
C3YA208005 C3YA208020
M3B C3YA208020
5 NUT (left hand thread)
M3
1
C3YA209005 C3YA209020
M3B C3YA209020
6 Split Pin
M3
1
9009415 9009417
M3B 9009417
*20 Ton capacity requires Quantities of 2.
