9.5 Optional Chain Containers

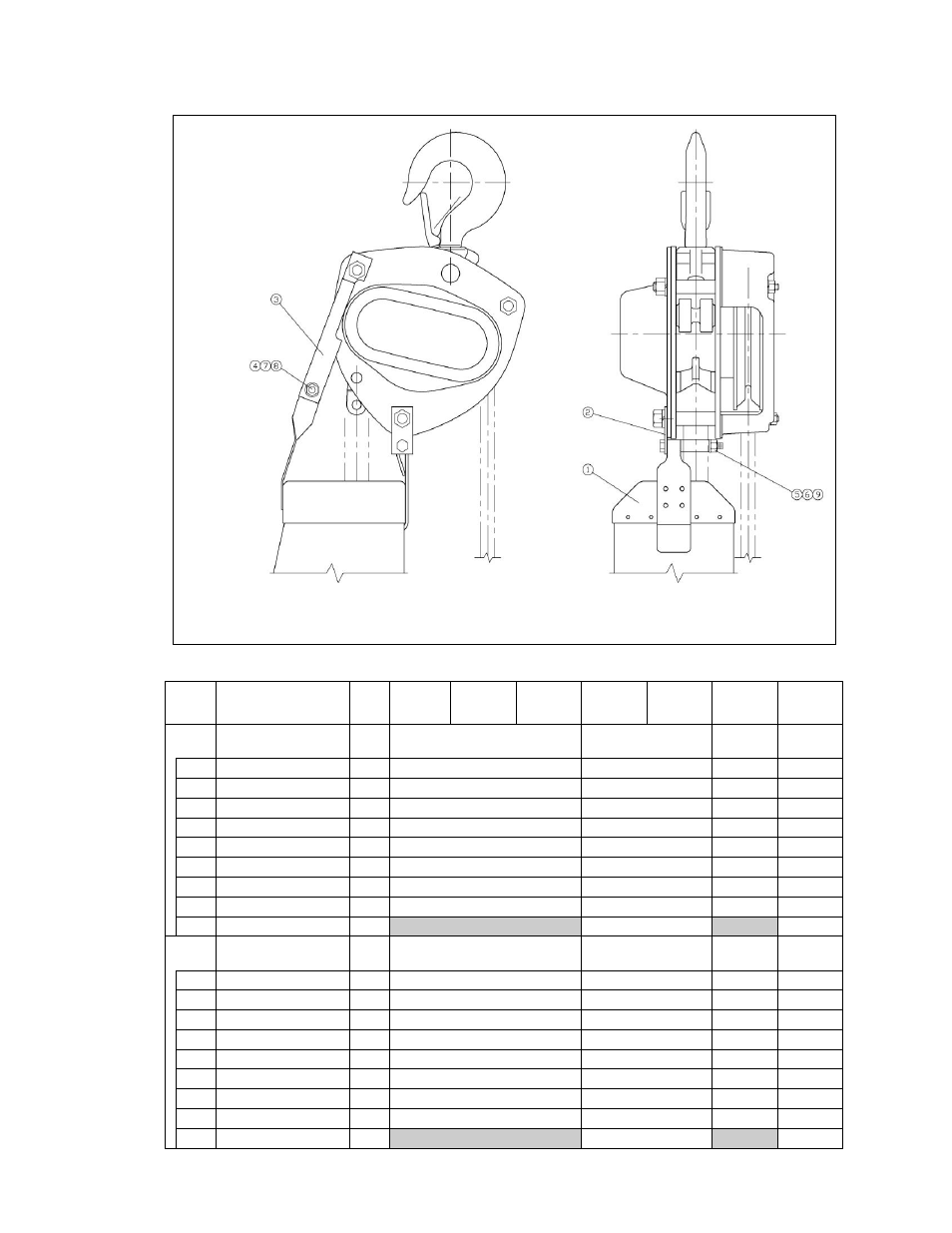

Figure 9-6 M3CB Optional Chain Container
CF4 OPTIONAL CHAIN CONTAINERS
Fig. No. Name
Parts
Per
Hoist
½T 1T 1½T 2T 2½T 3T 5T
“05” Chain Container
(BKC1) Assembly
1 60461 60463 60461 60463
1 Chain Container 1 50545 50545 50545 50545
2 Front Hanger Ass’y 1 5048305 5048305 5048305 5048305
3 Back Hanger 1 5048304 50940 5048304 50940
4 Washer 2 9012513 9012513 9012513 9012513
5 Nut 1 9093424 9093424 9093424 9093424
6 Lock Washer 1 9005310 9005310 9005310 9005310
7 Hex Head Bolt 1 9093327 9093327 9093327 9093327
8 Lock-Nut 1 9098506 9098506 9098506 9098506
9 Spacer 1 5048301 5048301
“10” Chain Container
(BKD1) Assembly
1 60462 60464 60462 60464
1 Chain Container 1 30090 30090 30090 30090
2 Front Hanger Ass’y 1 5048305 5048305 5048305 5048305
3 Back Hanger 1 5048304 50940 5048304 50940
4 Washer 2 9012513 9012513 9012513 9012513
5 Nut 1 9093424 9093424 9093424 9093424
6 Lock Washer 1 9005310 9005310 9005310 9005310
7 Hex Head Bolt 1 9093327 9093327 9093327 9093327
8 Lock-Nut 1 9098506 9098506 9098506 9098506
9 Spacer 1 5048301 5048301
