Harrington Hoists and Cranes CB Hand Chain Hoist User Manual
Page 23
23

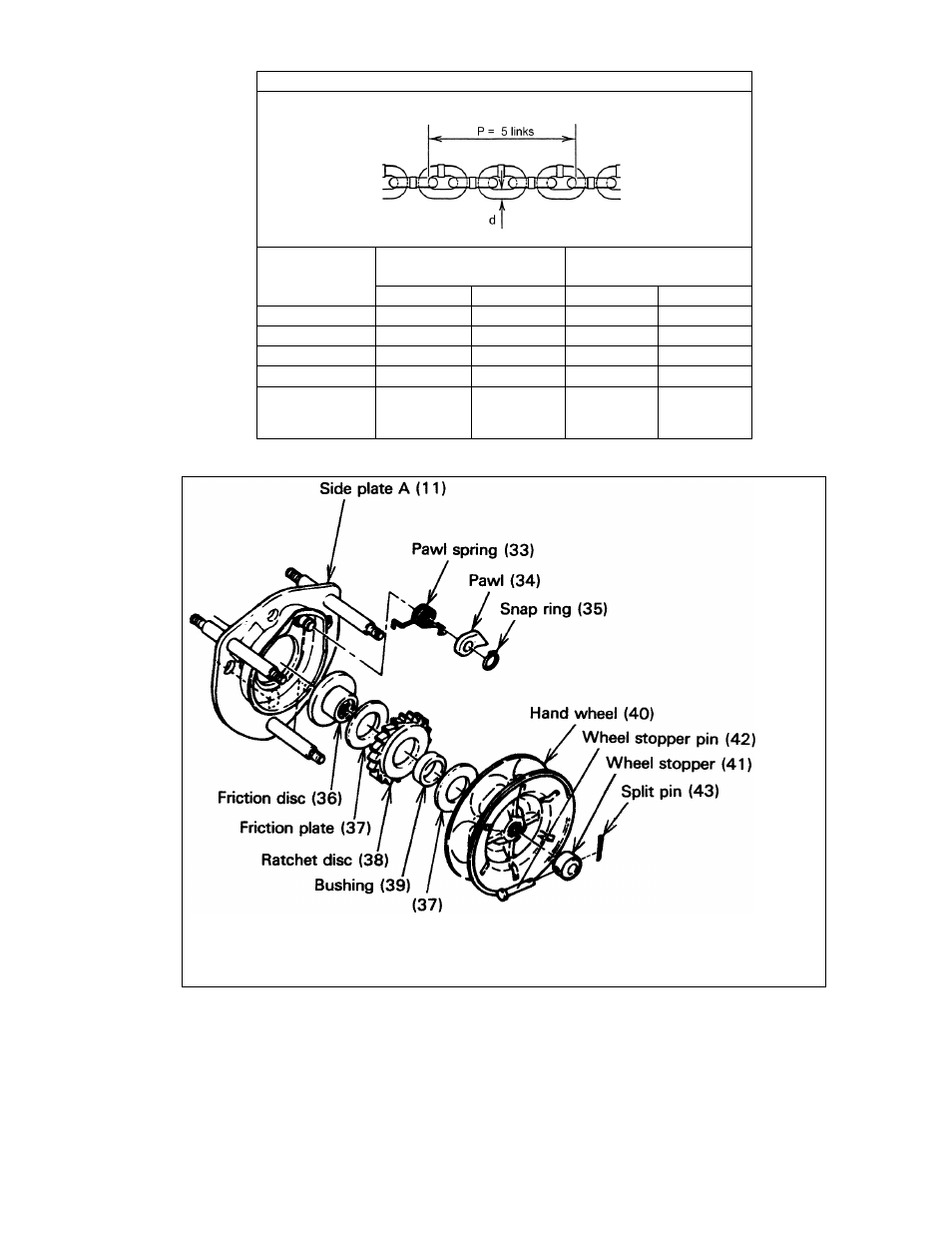

Figure 5-2 Brake Assembly
Table 5-8 Chain Wear Dimensions
Product Code
“P” Dimension
inch (mm)
“d” Dimension
inch (mm)
Standard
Discard
Standard
Discard
CB005
2.97 (75.5)
3.06 (77.7)
0.20 (5.0)
0.18 (4.5)
CB010
3.76 (95.5)
3.87 (98.3)
0.25 (6.3)
0.22 (5.7)
CB015, CB030
4.17 (106.0)
4.30 (109.1)
0.28 (7.1)
0.25 (6.4)
CB020
4.76 (121.0)
4.91 (124.6)
0.32 (8.0)
0.28 (7.2)
CB025, CB050,
CB080, CB100,
CB150, CB200
5.35 (136.0)
5.51 (140.0)
0.35 (9.0)
0.32 (8.1)
