Sonnet AV/HPV Card Video Adapter Kit
9

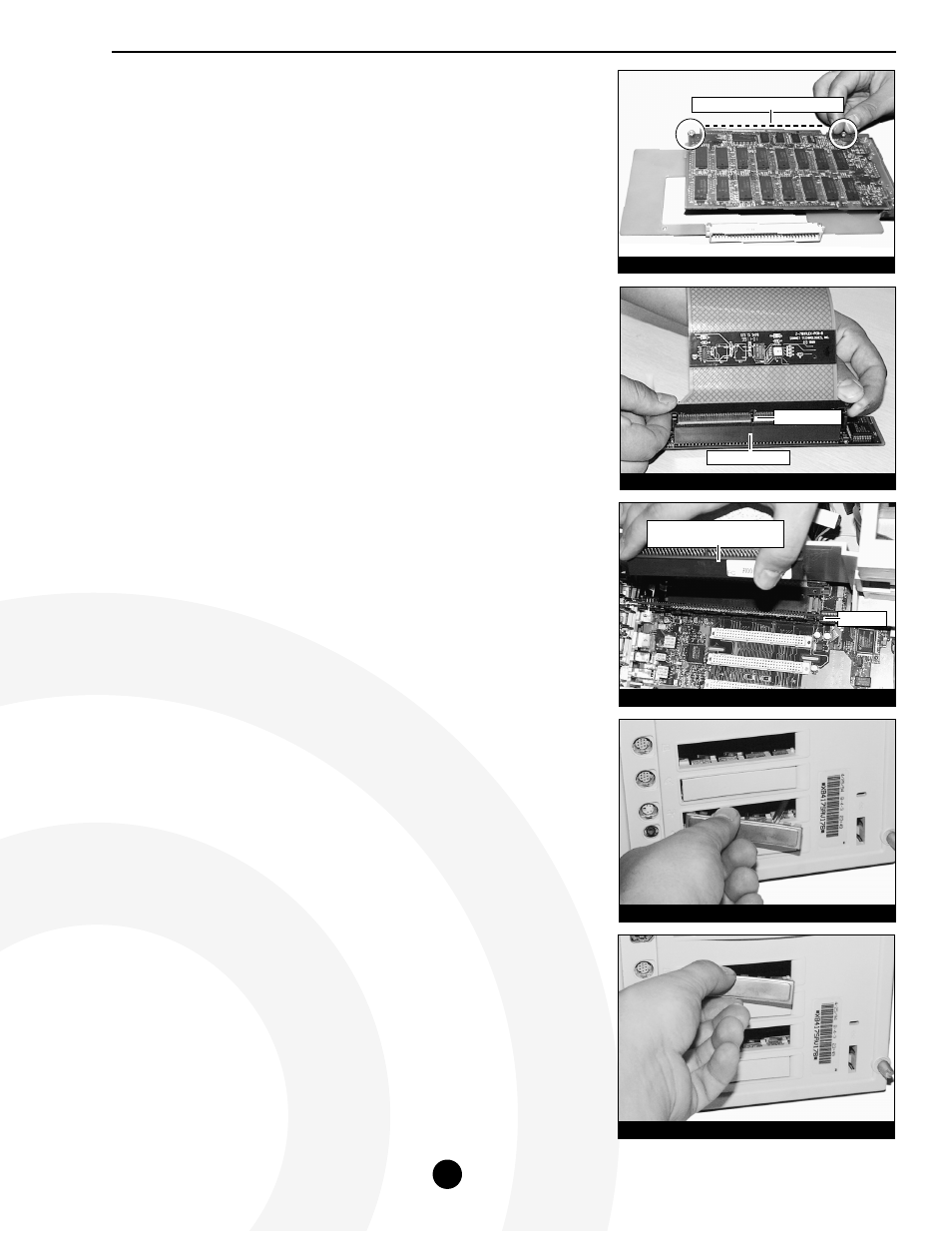

Figure 37: Secure AV card to adapter board with nuts
Figure 39: Install Crescendo card into PDS slot
Figure 40: Push out middle NuBus access port cover
Figure 41: Insert access port cover into PDS slot
11. Attach the video flex cable into the pass-through slot of the Crescendo
card (note the notch in the cable for orientation). Press down on the
outer edges of the cable until it is firmly seated (Figure 38).
12. Align the Crescendo card over the PDS slot on the logic board with the
card’s heatsink facing toward the power supply. Gently press down until
the card is firmly seated in the PDS slot (Figure 39).
13. Remove the access port cover (if installed) from the middle NuBus port
located at the back of the computer (Figure 40). Use your finger or a
small flatblade screwdriver to push it out from the port as shown in
Figure 40.
14. Insert the access port cover into the PDS port (Figure 41).
(Installation instructions continued…)
AV card connector facing upward
Figure 38: Attach video flex cable to Crescendo card
notch in cable
pass-through slot
PDS slot
Crescendo card
(with attached video flex cable)
