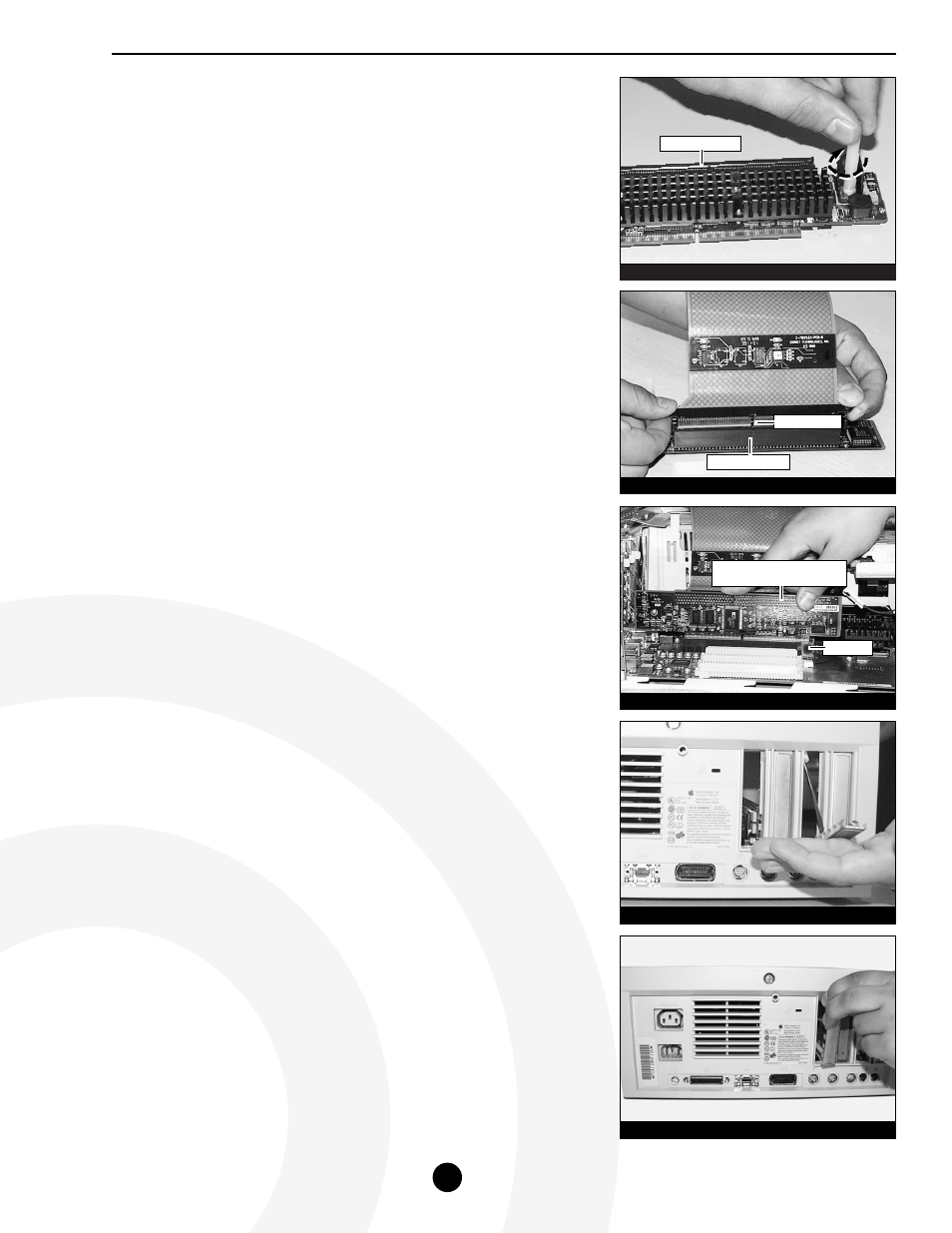

Figure 15: Screw support stand-off onto Crescendo card
Sonnet AV/HPV Card Video Adapter Kit
4
12. Place the Crescendo card in front of you with the pass-through slot facing
upward. Screw the support stand-off (supplied with the adapter kit) onto
the card (Figure 15).
13. Install the video flex cable into the pass-through slot of the Crescendo
card (note the notch in the cable for orientation). Press down on the
outer edges of the cable until it is firmly seated (Figure 16).
14. Align the Crescendo card over the PDS slot on the logic board with the
card’s heatsink facing toward the power supply. Gently press down until
the card is firmly seated in the PDS slot (Figure 17).
15. Remove the access port cover (if installed) from the middle NuBus port
located at the back of the computer (Figure 18). Use your finger or a
small flatblade screwdriver to push it out from the port as shown in
Figure 18.
16. Insert the access port cover into the PDS port (Figure 19).
(Installation instructions continued…)
Figure 17: Install Crescendo card into PDS slot
Figure 18: Push out middle NuBus port cover
Figure 19: Insert access port cover into PDS port
Figure 16: Attach video flex cable to Crescendo card
notch in cable
pass-through slot
pass-through slot
PDS slot
Crescendo card
(with attached video flex cable)
