Sonnet Technologies HARMONi G3 Processor Upgrade Card - Manual (Page 7)

Figure 22
Quick Start Guide for HARMONi G3

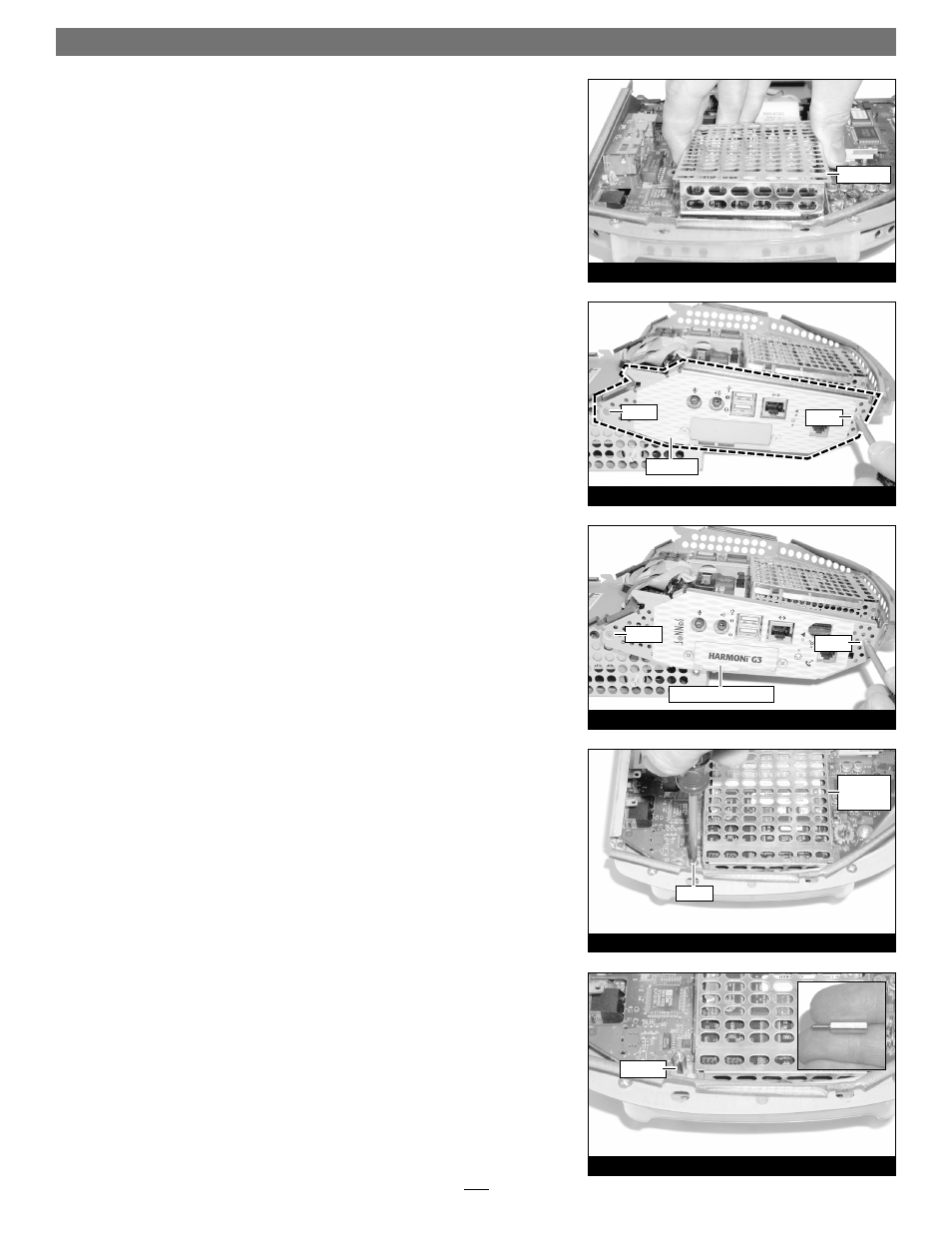

5. With the tall side closest to you, install the top shield onto the processor card
shield (Figure 21); verify that it is snapped securely into place.
Install FireWire Adapter Card
1. Locate and remove the two screws (#1 Phillips) securing the plate on the side
of the logic board/drive assembly, then remove the plate (Figure 22). Please
note that the side plate on your iMac may appear different than the one pic-
tured.
2. Install the replacement side plate, securing it with the original flat head
screws (Figure 23); do not overtighten the screws. Note that the side plate holes
should line up with the connectors on the logic board/drive assembly.
3. Locate and remove the screw (#1 Phillips) securing the lower processor card
shield to the logic board (Figure 24).
4. Screw in, finger tight, the supplied support standoff in place of the screw you
just removed (Figure 25).
7
Figure 25
Figure 24
Figure 23
Figure 21
top shield
screw
screw
screw
screw
standoff
side plate
screw
replacement side plate
processor
card
shield
