SSD Installation Steps
Dual SSD Installation
1. Remove and set aside the eight screws secured
to the extension plate (Figure 4).
2. Flip the card/plate assembly over, component
side up.
3. Remove the SSDs from their packaging.
4. Place an SSD label side up on top of the
Tempo SSD card with the SSD’s and
card’s connectors aligned with each other
(Figure 5).
5. Push the SSD’s connector into the Tempo SSD
card’s connector until the SSD is completely
seated
(Figure 5).
6. Holding the SSD firmly against the card, flip
the assembly over again.
7. Using four of the eight screws you removed
previously, secure the SSD to the Tempo SSD
card; do not overtighten the screws
(Figure 6).

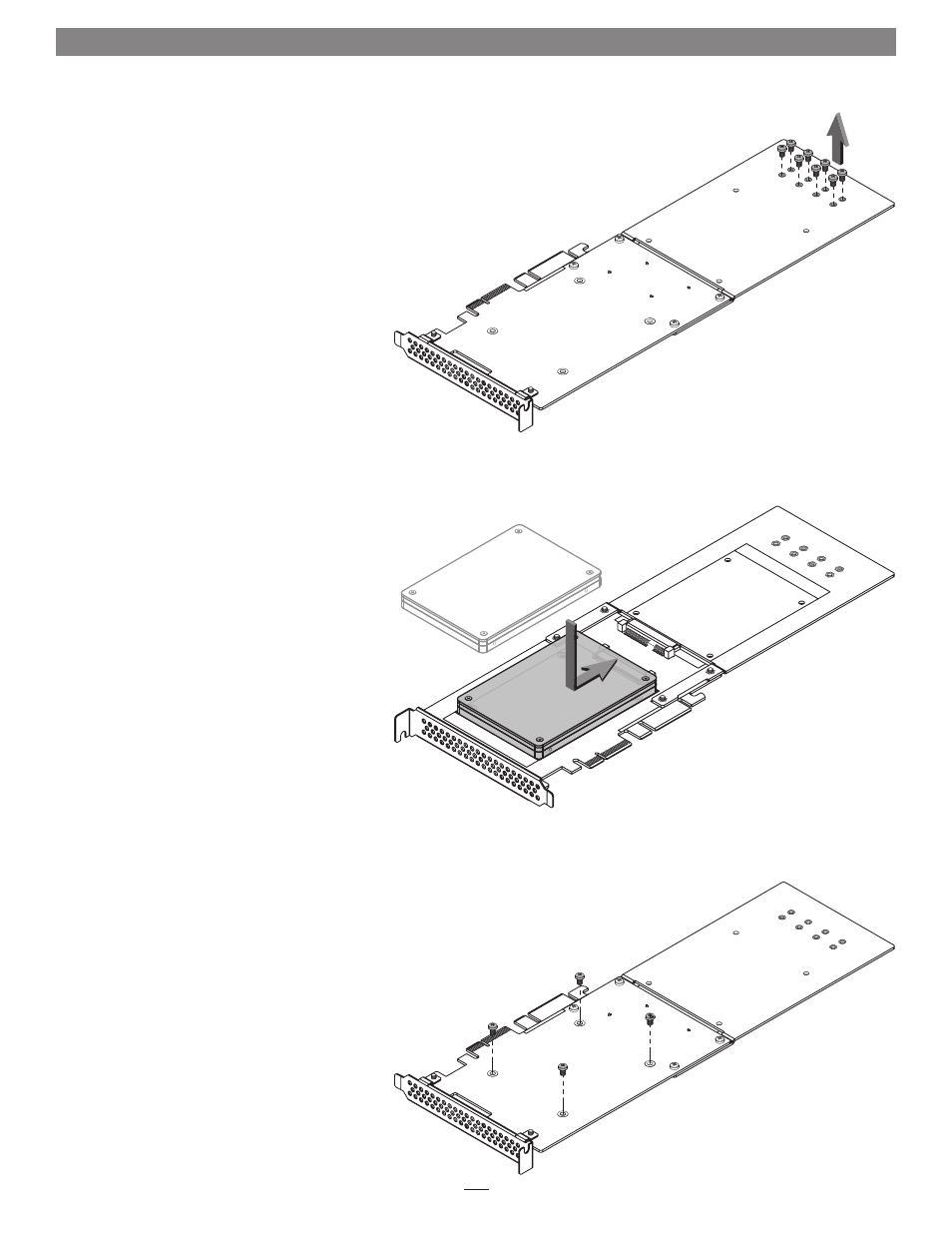

Figure 5
Figure 6
Figure 4
