SSD Installation Steps
Single SSD Installation
If you intend to install two SSDs, skip to the next
page. Otherwise, perform the steps below.
1. If you haven’t already done so, remove the
Sonnet card from its packaging, handling the
card by its edges and without touching any
components or gold connector pins. Set the
card down on a flat, level surface.
2. Remove the SSD from its packaging.
3. Place the SSD label side up on top of
the Tempo SSD card with the SSD’s and
card’s connectors aligned with each other
(Figure 2).
4. Push the SSD’s connector into the Tempo
SSD’s connector until the SSD is completely
seated
(Figure 2).
5. Holding the SSD firmly against the card, flip
the assembly over.
6. Using the included package of four screws,
secure the SSD to the Tempo SSD card; do not
overtighten the screws
(Figure 3).

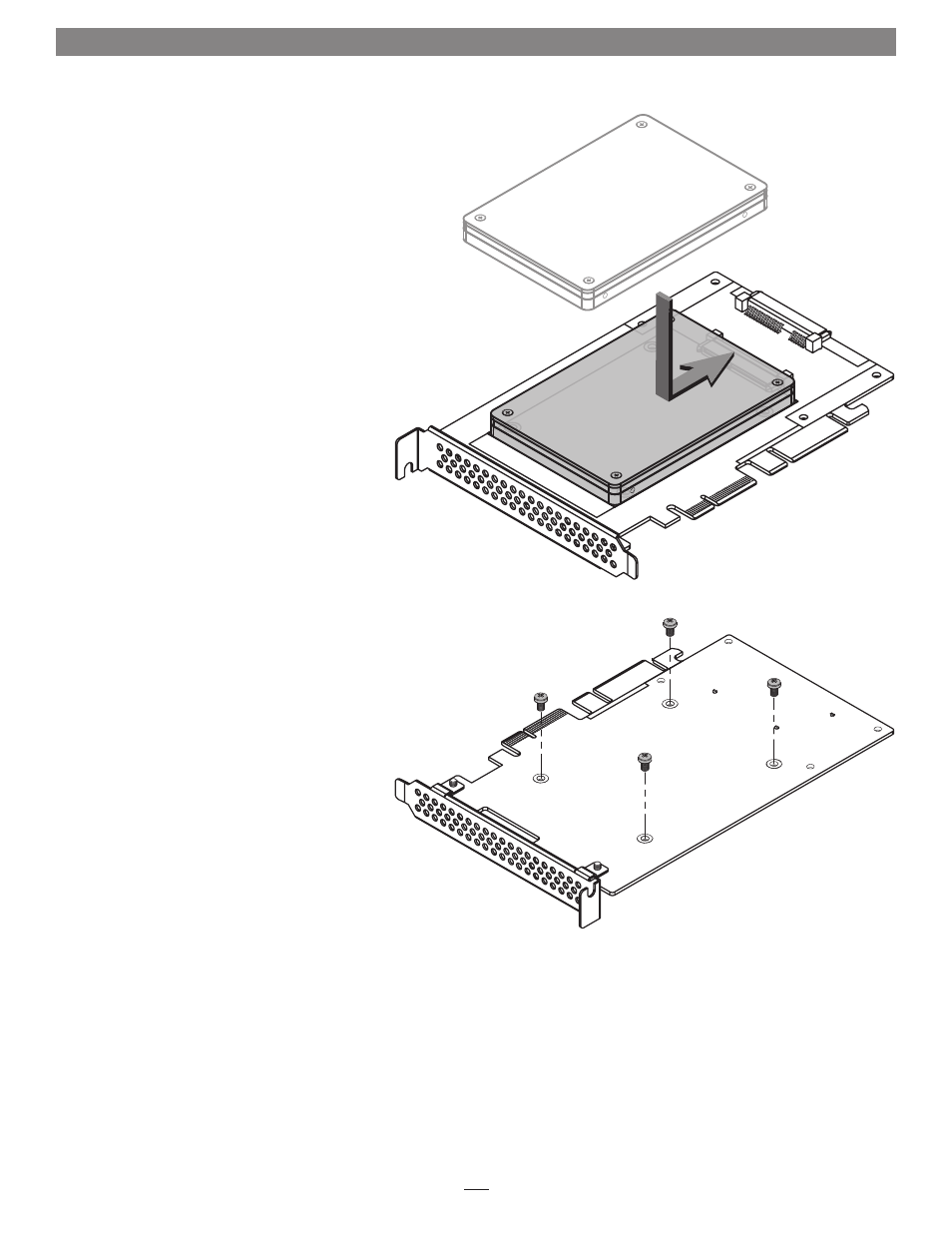

Figure 2
Figure 3
