2
Installation Preparation
Prior to attaching SSDs to the Tempo SSD and
installing the card, you should perform the steps
below as necessary. Remove the Sonnet card from
its packaging, handling the card by its edges
and without touching any components or gold
connector pins. Set the card down on a flat, level
surface to perform the steps.
Extension Plate Installation Steps
If you intend to install a second SSD, you must first
attach the extension plate to the Tempo SSD card.
1. Flip the Tempo SSD card component side
down (Figure 1).
2. Line up the extension plate underneath the
Tempo SSD card as shown (Figure 1).
3. Using the included package of four screws,
secure the extension plate to the card; do not
overtighten the screws
(Figure 1).
Optional Card Preparation Steps

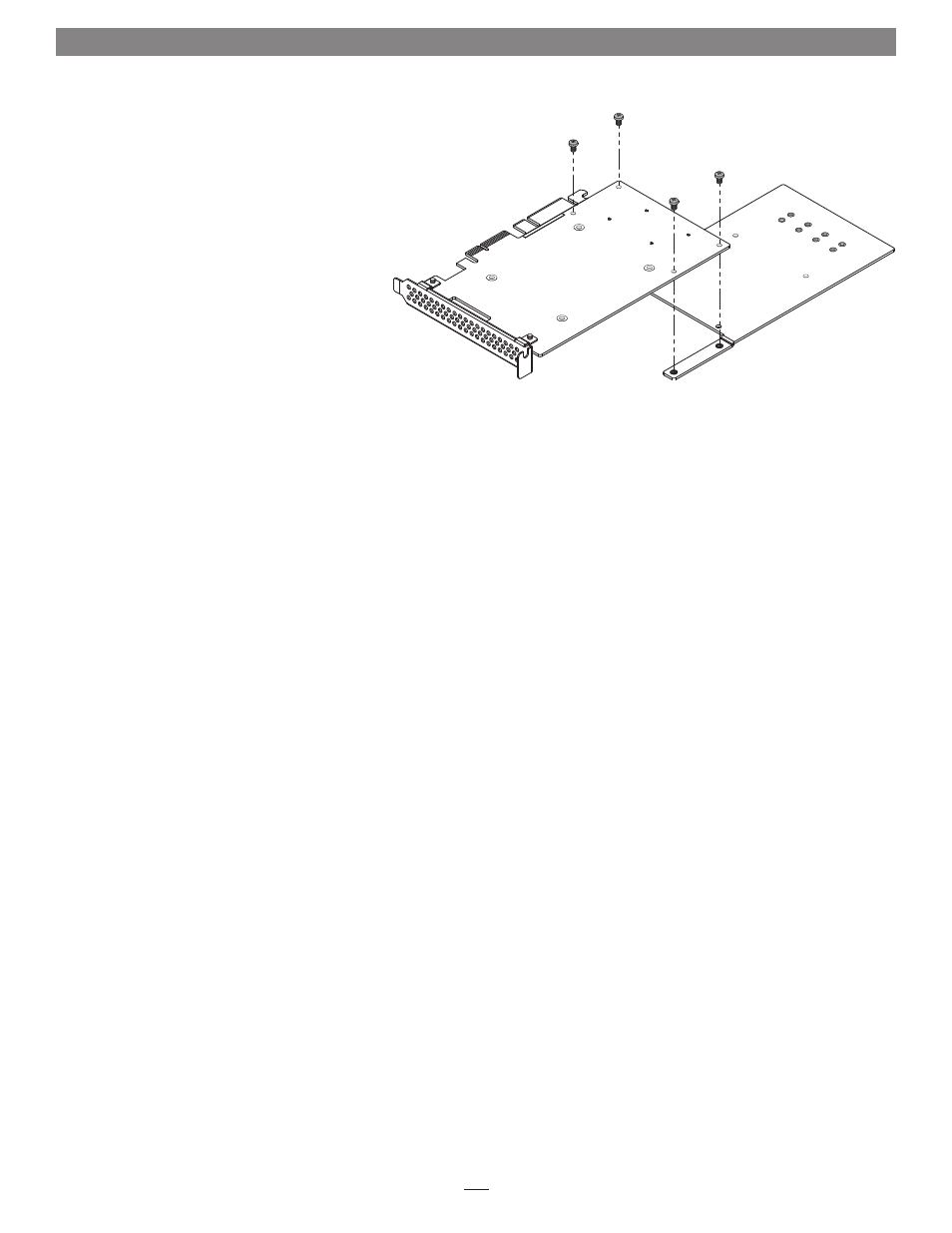

Figure 1
