8

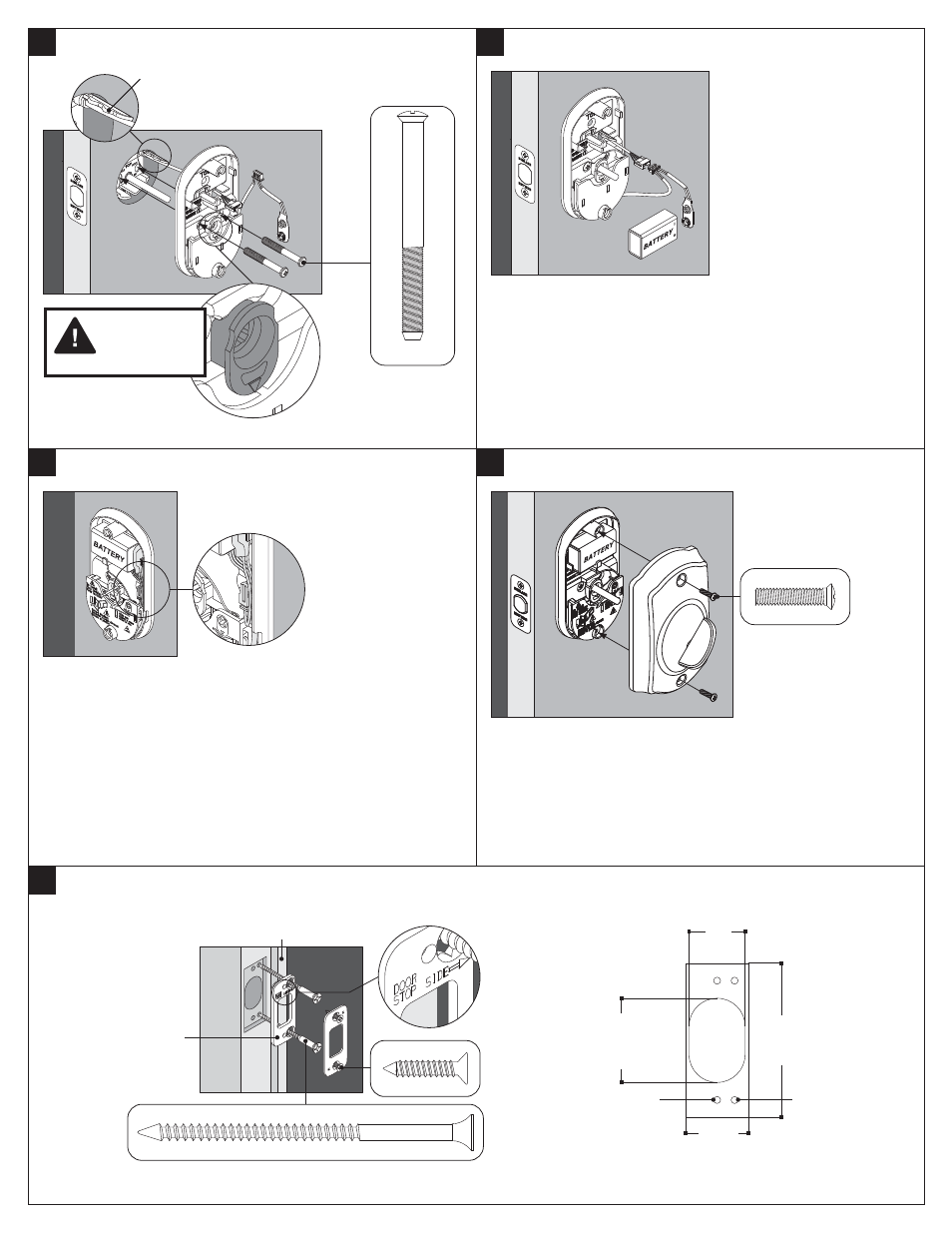

Install cover.
Actual Size
7
Place battery in holder and tuck wires.
Any wire routing is acceptable as long
as wires will not be pinched by cover.
9
1 ¹⁄₈"
(29 mm)
2 ³⁄₄"
(70 mm)
1"
(25 mm)
¹⁄₈" (3 mm)
Pilot Hole
¹⁄₈" (3 mm)
3" (76 mm) Deep
1 ¹⁄₂" (38 mm)
1" (25 mm)
Deep
Strike Cut-Out (not to scale)
Rotate 180˚ if
door stop is on
left side.
For maximum security,
install reinforcement
plate.
Install reinforcement plate and strike into door jamb.
Actual Size
Actual Size
Door Stop
Install baseplate.
5
Actual Size
Slides through same hole as wire.
Holds keypad and baseplate
together during installation.
Cam MUST
be vertical!
Review Step 1!
6
Connect wire and battery.
Lock will beep when
battery is connected.
