Check for parts online at

www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5

6

Operator's Manual

Rivers Edge® Two-Man Ladder Stands

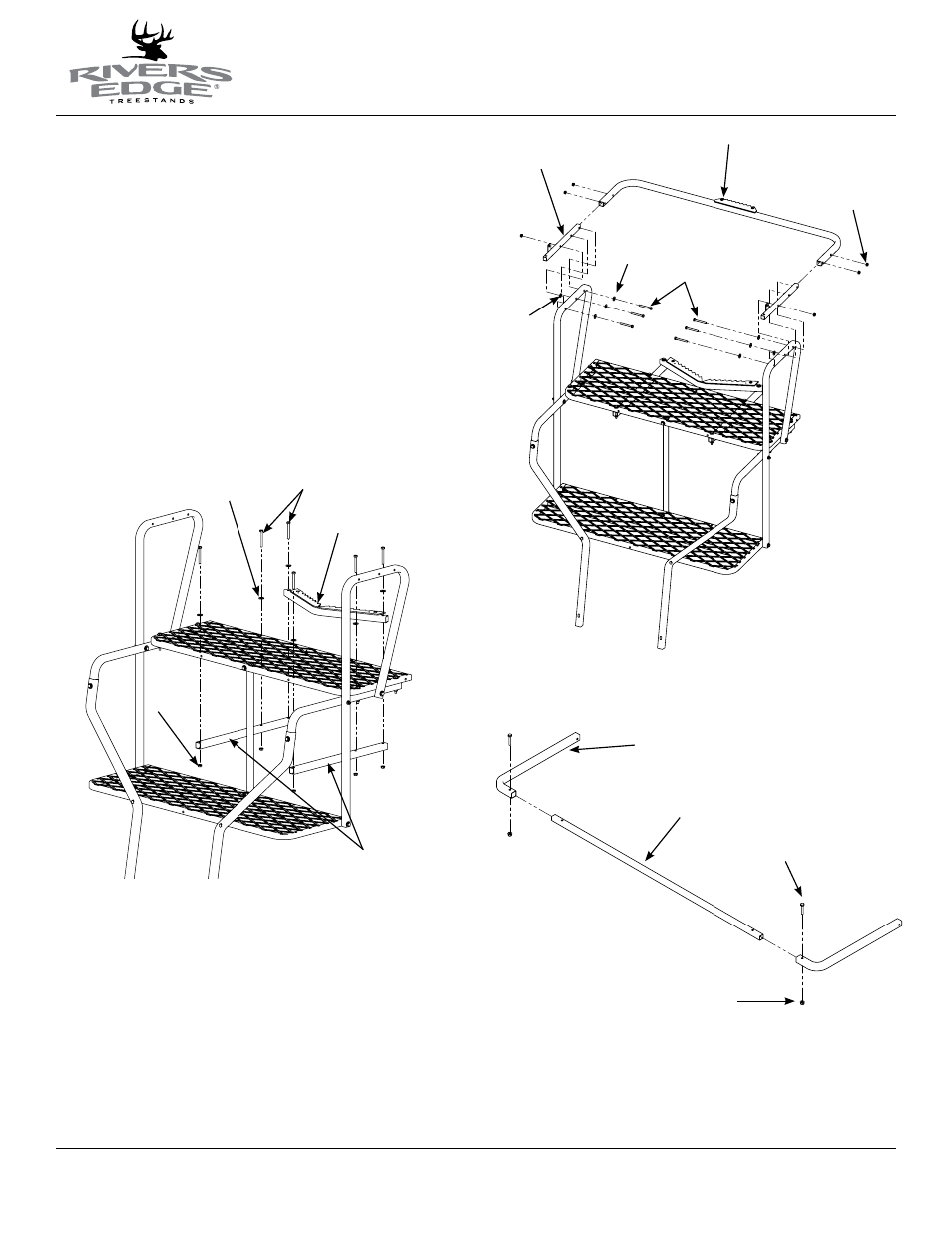

6. Attach the tree blade extension tubes (411030) to the bottom side

of the seat platform using (4) provided 1/4-20 x 2-1/4” bolts, lock-

nuts and steel washers. SEE fIGuRE 4.

7. Attach the tree blade weldment (SL67) to the top side of the tree

blade extension tubes using (2) provided 1/4-20 x 2-1/4” bolts, lock-

nuts and steel washers. SEE fIGuRE 4.

8. Insert the (2) shooting rail extension weldments (411028) into the

receiving ends of the backrest frame/upper tree blade (411025). Se-

cure all three pieces to the side loop frames using (6) provided 1/4-

20 x 2-1/4” bolts, (6) locknuts and (8) steel washers. SEE fIGuRE 5.

noTe: use (1) steel washer on each side of this assembly to cor-

rectly take up the gap between the side loop frame and the shoot-

ing rail extension.

9. Slide the (2) shooting rail J-pipes (411032) over the shooting rail

straight tube (411027) and secure together using (2) provided 1/4-

20 x 1-1/2" bolts and locknuts. SEE fIGuRE 6.

Figure 5

Figure 4

tree blade

weldment

tree blade extension tubes

1/4-20 X 2-1/4" bolts

steel washers

locknuts

shooting rail extension

weldments

backrest frame/upper tree blade

1/4-20 X 2-1/4" bolts

steel washers

locknuts

steel

washers

Figure 6

shooting rail J-pipes

shooting rail straight tube

1/4-20 X 1-1/2" bolts

locknuts
