Check for parts online at

www.huntriversedge.com or call 800-450-EDGE (3343) M-F 8-5

5

Operator's Manual

Rivers Edge® Two-Man Ladder Stands

ASSEMBlY INSTRuCTIONS (RE629)

Tools needed – two 7/16” wrenches
IMpoRTanT asseMBlY TIp: do noT TIGHTen nuT & BolT coMBIna-

TIons coMpleTelY unTIl all paRTs aRe asseMBled ToGeTHeR!

FInGeR TIGHTen onlY plus one TuRn oF a wRencH onlY! THIs

wIll TeMpoRaRIlY Hold THe locK nuT on THe BolT wHIle Help-

InG alIGnMenT oF all paRTs! aFTeR all paRTs aRe asseMBled

ToGeTHeR, all nuT & BolT coMBInaTIons MusT Be coMpleTelY

TIGHTened!

1. Attach (2) ladder side J-rails (411018) to (1) welded platform frame

(411021) using (4) provided 1/4-20 x 2-1/4” bolts, locknuts and steel

washers. SEE fIGuRE 1. DO NOT tighten all nut and bolt assem-

blies completely!

noTe: Mesh surface of platform should be on top and rounded

corners of platform are orientated as per figure 1. This step now

makes this platform the seat platform.

2. Attach (2) side loop frames (411024) to the previously assembled

ladder side J-rails using (4) provided 1/4-20 x 2-1/4” bolts, locknuts

and steel washers. SEE fIGuRE 1.

3. Slide the (2) flared rails (411020) over the previously assembled

ladder side J-rails and secure together using (2) provided 1/4-20 x

1-1/2” bolts, locknuts and steel washers. SEE fIGuRE 2.

4. Attach the second welded platform frame (411021) to the flared

side rails and both side loop frames using (2) provided 1/4-20 x

2-1/4” bolts, (2) 1/4-20 x 2-1/2” bolts, (4) locknuts and (4) steel wash-

ers. SEE fIGuRE 2.

5. Attach the platform support tube (411031) to the foot platform and

seat platform using (2) provided 1/4-20 x 2-1/4” bolts, locknuts and

steel washers. SEE fIGuRE 3.

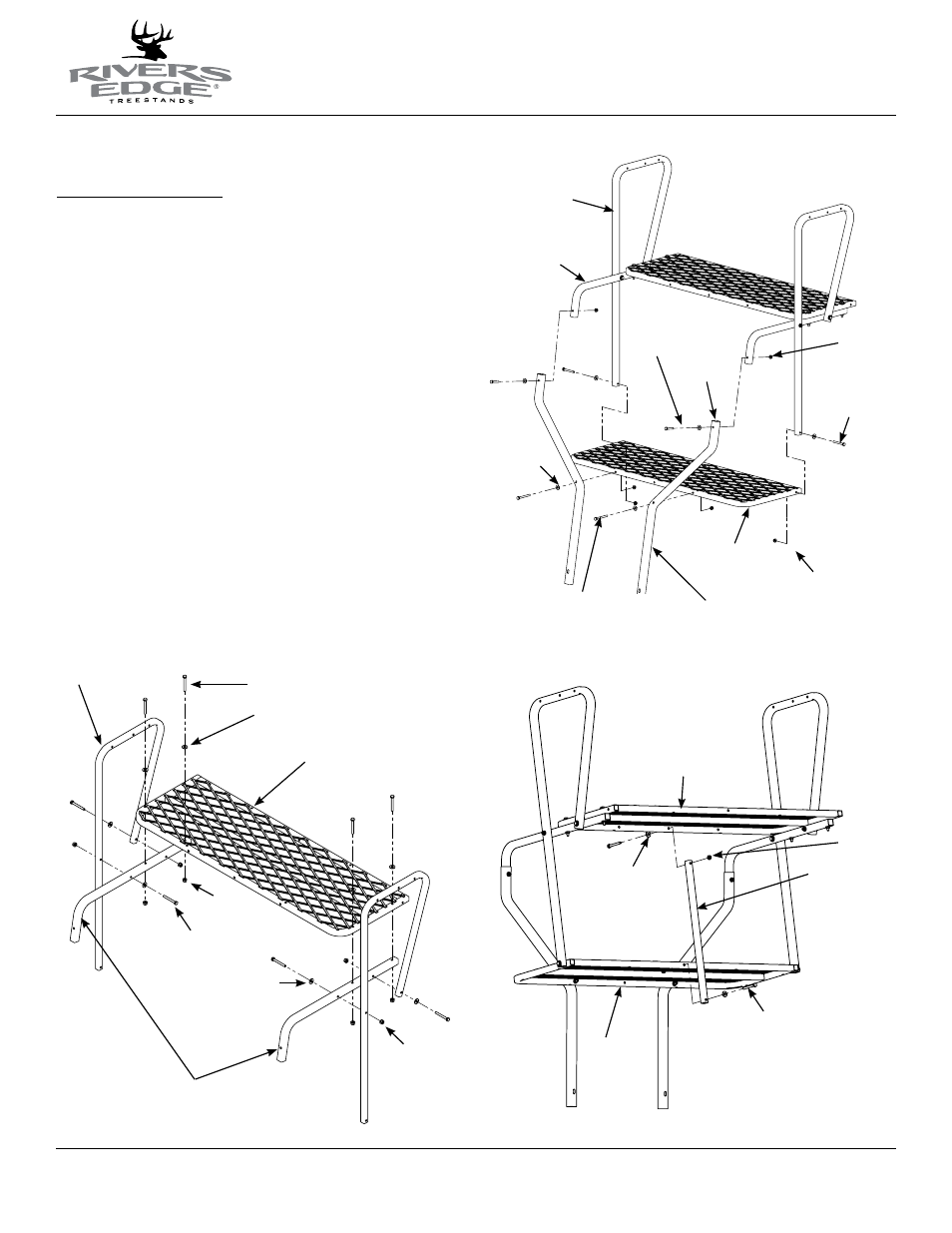

Figure 2

Figure 1

ladder side J-rails

side loop frames

welded platform frame

steel washers

1/4-20 X 2-1/4" bolts

locknuts

1/4-20 X 2-1/4" bolts

steel washers

locknuts

flared side rail

1/4-20 x 1-1/2" bolts

locknuts

steel washers

1/4-20 x

2"-1/4 bolts

1/4-20 x 2-1/2" bolts

steel washers

locknuts

second welded

platform

side loop frames

side J-rails

Figure 3

1/4-20 X 2-1/4" bolts

platform

support tube

seat platform

foot platform

steel washers

locknuts
