Operator's Manual

Rivers Edge® Two-Man Ladder Stands

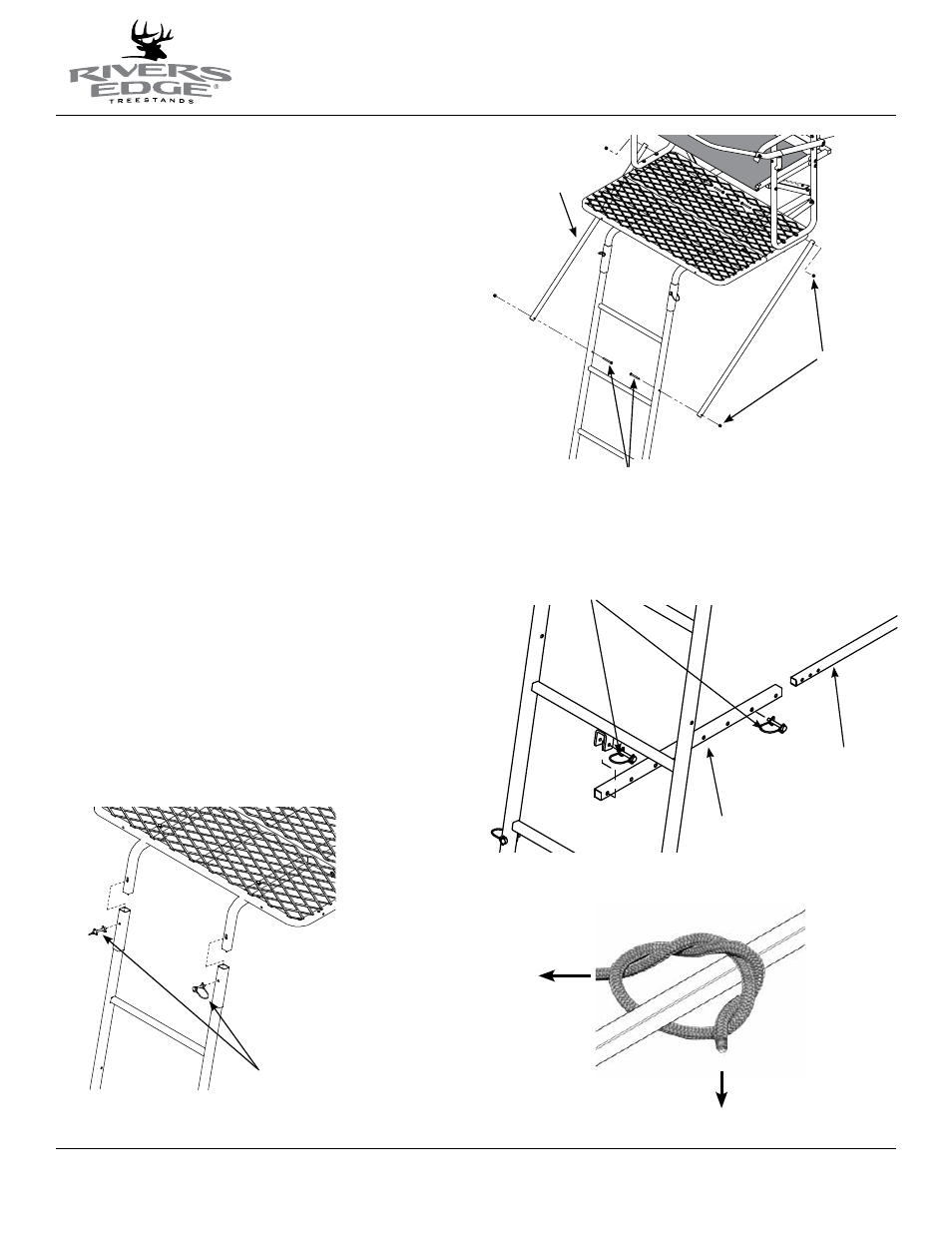

14. Sections are assembled on the ground in the following order;

bottom section (SL51 4-step ladder); second section (SL52 4-step

ladder with stabilizer bar mount); third section (SL54 4-step ladder

with support brace mounting holes); top section (assembled top

platform section). SEE fINIShED TWOPlEX lADDER.

15. With all sections assembled together on ground, secure all sections

together using (6) provided spring lock pins. Handle of spring lock

pin must be put to outside of ladder side rails. SEE fIGuRE 8.

16. Attach the (2) support braces (2ML46) to the outside of platform

J-pipes and top ladder section with mounting holes using (4)

provided 1/4-20 x 2-1/4” bolts and locknuts. SEE fIGuRE 9. Tighten

securely. Be sure not to over tighten or crush tubing when

tightening!

17. Attach the (2) provided 9” and (1) provided 36” camo foam pads

to the armrests and shooting rail by wrapping around tubing and

attaching Velcro together.

18. a. Attach the stabilizer bar extension tube (1ML23) to the second

ladder section mounting bracket using (1) provided spring lock pin..

SEE fIGuRE 10.

b. Slide the stabilizer bar (L17) into the extension tube and attach

the two pieces together using (1) provided spring lock pin. Spring

lock pin must go through both the extension tube and stabilizer

bar at appropriate hole to achieve desired distance from tree.

Adjustment in length may be needed when ladder is uprighted

later in instructions. SEE fIGuRE 10.

19. a. Tie one end of the provided 9’ rope to the link welded onto

stabilizer bar, just in front of the tree hugger. Be sure your double

knot is secure. SEE fIGuRE 11.

b. Tie one end of each of the provided 15’ ropes to the platform

J-pipes, just in front of the bolt-on tree blade. Be sure your double

knots are secure. SEE fIGuRE 11.

Figure 11

Figure 10

stabilizer bar

spring lock pins

extension tube

Figure 8

spring lock pins

Figure 9

1/4-20 X 2-1/4" bolts

support braces

locknuts
